Total Elemental Combustion Analyzer: ElemeNtS

The ElemeNtS analyzer available from PAC L.P. is the most sophisticated, modular analytical system to detect Total Sulfur and/or Total Nitrogen content in liquid, solidand gaseous materials, as well as LPG samples.

The ElemeNtS total elemental combustion analyzer comes in two configurations: a horizontal configuration with boat inlet introduction and a vertical one with direct injection. Both configurations can be fitted with dedicated detectors, such as the ElemeNtS-S for sulfur detection, the ElemeNtS-N for nitrogen detectionand the ElemeNtS-N/S for both nitrogen and sulfur detection at the same time.

Vertical configuration with 749 autosampler. Image Credit: PAC L.P.

The ElemeNtS analyzer performs nitrogen and sulfur detection by using an exclusively efficient process that involves Chemiluminescence (CLD) and Ultra Violet Fluorescence (UVF). In the refining industry, the analyzer is crucial to monitor and safeguard vital processes.

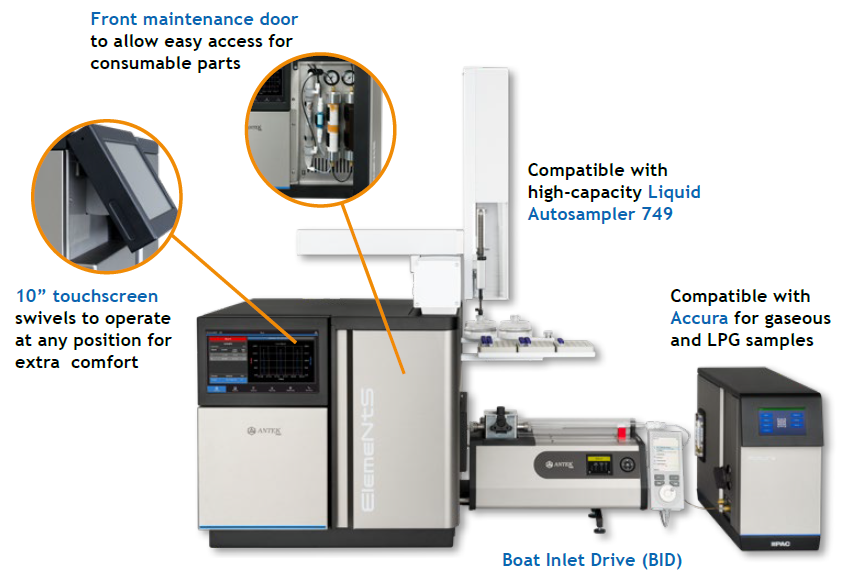

Horizontal ElemeNtS with Boat Inlet Drive (BID), 749 autosamplerand Accura gas sampler. Image Credit: PAC L.P.

High Performance for Quick Analysis and Wide Application Range

Liquids, solids and gases can be analyzed precisely and fast

Different types of samples can be analyzed quickly

Long term stability for constant use

Concurrent analysis of sulfur and nitrogen

Intuitive user interface and software guarantee seamless operation of the instrument

Near-zero downtime ensured by low maintenance and optimal combustion and conditioning of gases

Enhanced Lab Productivity Through Minimal User Intervention

High capacity liquid autosampler (162 samples) minimizes the need for operator supervision when samples are run

Factory adjusted analyzer is ready for analysis as soon as it is installed

Long-term stability minimizes the need for calibration by operators for any range of measurement

User touch screen enables data preview and direct instrument control

Application-Specific Configuration Offers Superior Precision

Application specialists from PAC L.P. can create tailored techniques (the need for on-site method development is avoided)

Dedicated sample analyzer signifies that it can be optimized truly for its intended application and can be configured for various applications

Analyzer is factory-tuned before it is shipped

Proven Compliancy for Various Industries

Quality and regulatory requirements are ensured by low detection limits

Wide range of applications enables various industries to fulfill the requirements of different standards

Conforms to several international standards such as ASTM, EN, GB/T, GOST, IP, ISO, JIS K, SH/Tand UOP

Sampling Options

Users can configure ElemeNtS with a 749 Liquid autosampler for both the horizontal and vertical configurations. It is also possible to use the vertical configuration with the Single Shot Autosampler.

749 Liquid Autosampler: High capacity liquid autosampler to ensure large sample throughput. The different syringe sizes available are 10, 25, 50 and 100 µL.

749 Autosampler. Image Credit: PAC L.P.

Single Shot Autosampler: It is an economical solution that helps inject a single replicate sample using a syringe. The available syringe size is 25 µL.

Single Shot Autosampler. Image Credit: PAC L.P.
