The BeNano 90 Zeta: A Nanoparticle Size and Zeta Potential Analyzer

The BeNano 90 Zeta is the latest generation of nanoparticle size and zeta potential analyzer designed by Bettersize Instruments. The system is integrated with dynamic light scattering (DLS), electrophoretic light scattering (ELS), and static light scattering (SLS) to deliver accurate measurements of particle size, zeta potential, molecular weight, and rheological properties. Now with The BAT-1 Autotitrator, for analyzing the zeta potential as a function of pH and determining the isoelectric point (IEP) of a colloidal system.

The BeNano 90 Zeta instrument is extensively used in academic and manufacturing processes of numerous fields, such as biology, chemistry, pharmaceuticals, chemical engineering, materials, food, etc.

BeNano Series: Unveiling the Secrets of Nanoparticle AnalysisPlay

Video Credit: Bettersize Instruments Ltd.

Features and Benefits

High performance solid-statelaser—durable, excellent stability, high power, and minimum maintenance cost

Fast measurement capability—fasteroperations and editable results

Sensitive optical fiber detection system—effectively boosts signal-to-noise ratio, thanks to the excellent sensitivity of the optical system

Intelligent intensity adjustment—the intensity can be effectively adjusted in accordance with the signal-to-noise ratio

Disposable folded capillary cell—exceptional repeatability of zeta potential measurements and prevents cross-contamination

Phase analysis light scattering—measurement of zeta potential and low electrophoretic mobility

Intelligent algorithm of result assessment—intelligent assessment and processing of signal quality prevent the effect of arbitrary events

Capillary sizing cell—sample volume as low as 3 to 5μL and higher measurement precision for large particles

Multipurpose calculation modes—numerous integrated calculation modes cover various scientific research and application fields

Extremely stable optical design—offers highly repeatable results and does not need routine maintenance

A broad range of temperature control—modifiable temperature from −10°C to 110°C to fulfill various measurement needs and enable thermal stability analysis of specimens

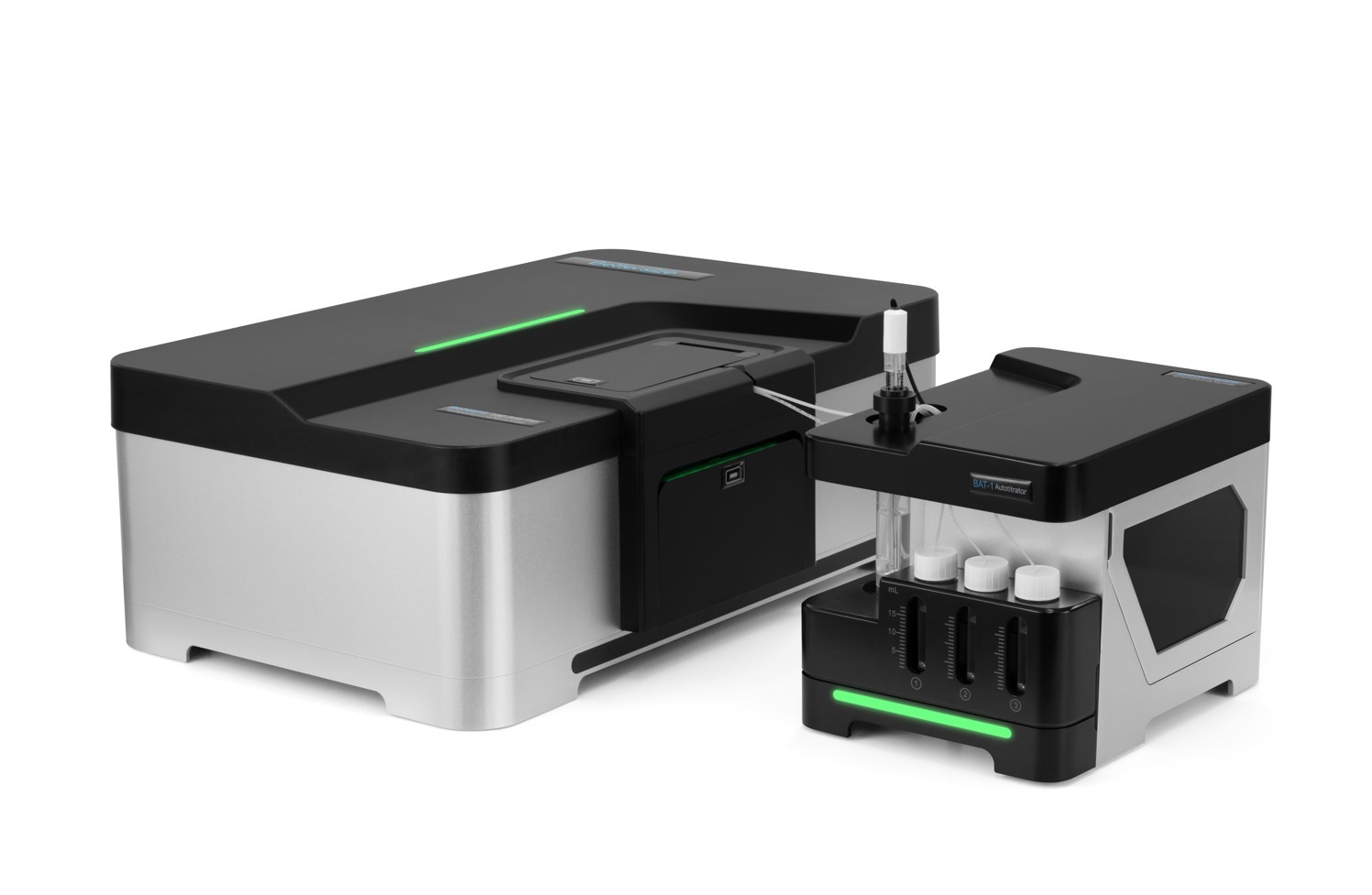

BAT-1 Autotitrator

The BAT-1 Autotitrator is equipped with three high-precision titration pumps (with precision of 0.28 μL), and a magnetic stirrer, and is in combination with the BeNano series nanoparticle size and zeta potential analyzer for automatic acid-base titration and determination of isoelectric point (IEP). The pinch valve can close the circuit of the sample during the measurement, leading to high efficiency, accurate titration, good repeatability and the results being independent of operators. The disposable sample container can avoid the sample cross-contamination.

Image Credit: Bettersize Instruments Ltd.

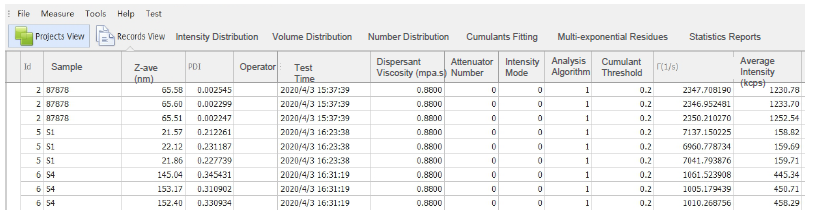

A Research Level Software

Image Credit: Bettersize Instruments Ltd.

The BeNano range includes software with easy-to-use interface, various types of report pages, and results previews.

Software Features

Standard Operating Procedure (SOP) ensures the completeness and accuracy of parameters during measurements

Measurement interface shows real-time information and results of various types

Results and Statistics – automatic calculations of mean and standard deviation

Statistics and Overlay – compares results from multiple runs

Over 100 parameters available, 100% covering the needs for research, QA, QC, and production

Life-long upgrades provided free of charge

Applicationswith DLS technique

Research on thermal-sensitive systems, for instance, PNIPAm

Research on reaction mechanisms and polymerization process

Research on the kinetics of self-assembly and other procedures of polymerization and depolymerization of macromolecules

Particle size and distribution of colloids, polymers, biomacromolecules, self-assembling system, peptides, proteins, antibodies, antigens, and non-metal/nano metal particles

Applicationswith ELS technique

Industries include but are not limited to biology, chemicals, chemical engineering, pharmaceuticals, food and beverage, abrasive and paints, environmental protection, and water treatment

Zeta potential, electrophoretic mobility, and their distributions of suspension systems, like emulsions, colloids, macromolecules, antibodies, antigens, proteins, coal-water slurries, and non-metal/nano metal particles

Research on surface modifications and surface electrical properties

Controlling and monitoring product stability

Stability research and control of suspension systems

Applicationswith SLS technique

Petroleum engineering—characterization of oil-displacing surfactants and macromolecule additives

Chemical engineering—characterization of micelles, polymers, and supermolecules

Pharmaceuticals—research on stability and aggregation of medications

Life science—characterization of polysaccharides, polypeptides, and proteins

Confirmation of supermolecules and studies on self-assembling aggregates
