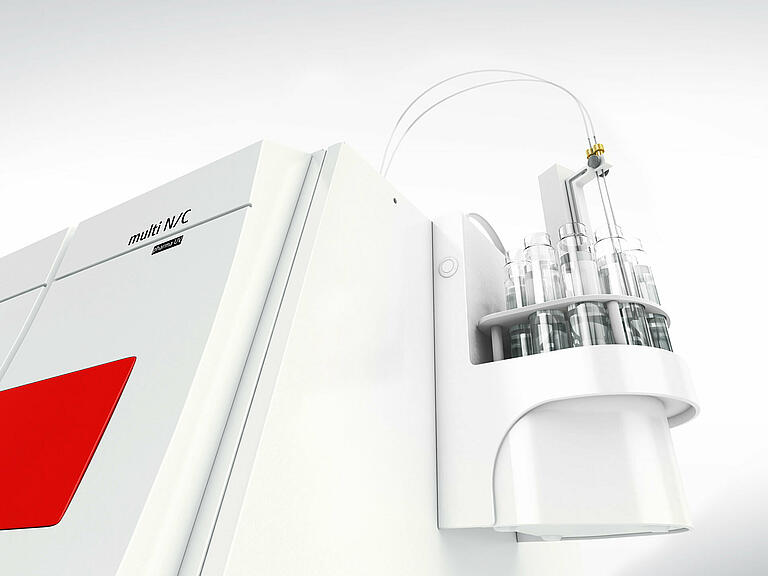

Reliable TOC/TNb Analysis: multi N/C Series

The multi N/C instruments from Analytik Jena provides users with tailored solutions for consistent TOC/TN_b measurements in their field of application, from the surface and waste-water analysis in the environmental sector to high-purity water in the pharmaceutical or semiconductor industry.

Particularly in the case of complicated sample matrices, the devices are convincing because of their ease of maintenance and reliability. With the latest multi N/C duo systems, Analytik Jena currently provides combined analytical instruments for completely automated solid and liquid TOC analysis.

The devices of the multi N/C series allow users to work in compliance with the valid standards, and the devices of the pharma series enable them to work in compliance with the FDA/GMP guidelines. The devices ensure reduced running costs and maximum operating time.

Analytik Jena provides a three-year warranty on the UV reactor for UV-based multi N/C models, and also a 10-year warranty on the NDIR detector and on the furnace technology of combustion-based multi N/C models.

multi N/C Series

Reliable TOC/TN_b Analysis

Efficient—long-term stable calibration

Powerful—TC, TIC, TOC, NPOC, TN_b, etc. even in complex matrices

Reliable—highest operational safety and long-term warranties

Standard compliance—for example, EN 1484, EN 12260, EN 15936, and ISO 20236

Sophisticated Technologies for Your Analysis Needs

The corrosion-free Focus-Radiation NDIR detector forms the core of each model of the multi N/C series. Through a measuring range varying from 0 to 30,000 mg/L TOC, it acquires the highest precision and sensitivity without sample dilution.

The VITA flow management system effectively offsets the carrier gas fluctuations and allows EasyCal automatic and long-term stable calibration.

For TOC measurement, two sample digestion techniques are available—wet chemical UV oxidation and high-temperature combustion up to 950 °C.

The high-power long-life UV reactor utilizes two wavelengths (185/254 nm) for complete oxidation, allowing blank value-free analysis without having to use any oxidizing agent. Moreover, various solid and liquid automation options, solid modules, and nitrogen detectors are available.

Applications

Oil and gas

Environment

Power and energy

Food and agriculture

Pharma and life sciences

Chemicals and materials

multiWin Software

The intuitive multiWin software tracks and manages all crucial system parameters and offers a clear display of the measurement outcomes. The software is available in several languages, for example, English, Russian Chinese, Spanish, and French.

Overview of Features

Automatic tracking of maintenance intervals, temperatures, gas flows and pressures, and detector status (Self-Check-System)

Multipoint calibration with a single standard, blank value correction, result recalculation, and other kinds of functions

Manual or automatic data export (PDF, CSV, and LIMS)

Easy management and storage of measurement data and parameters

multi N/C pharma

Audit trail, user management, and authorization of techniques, calibrations, and analysis outcomes by electronic signatures

Data integrity requirements according to FDA 21 CFR part 11

PQ, OQ, and IQ documents are improved for SST report functions, software validation certificates, and the pharmaceutical sector

Accessories

Accessories for Liquid TOC/TN_b Measurement

Sampler for multi N/C 2100S and 2100S pharma

Sampler for multi N/C 3100, UV HS, 3100 pharma, and pharma HT/UV

CLD chemiluminescence detector

ChD electrochemical detector (chemo detector)

POC module (multi N/C 3100)

Solids Module TOC Analysis

HT 1300 solids module (multi N/C 2100S, UV HS, 3100) for powerful, catalyst-free high temperature combustion at up to 1300 °C in a ceramic combustion tube

TIC solids module (multi N/C 2100S, 3100, and UV HS)

Double furnace module (multi N/C 2100S) for solid and liquid analysis with only a single furnace and swabtest module (multi N/C pharma HT) for direct swab combustion in cleaning validation
