Elevate Your Workstation With the 9100 Series Vibration Isolation

The 9100 Series Vibration Isolation Workstation establishes the industry standard for the vast majority of vibration control applications.

With a range of worksurfaces and accessories, the 9100 Series offers a comfortable workspace that can be tailored to specific requirements. It is designed to isolate delicate instruments and experiments weighing up to 1300 lbs.

The 9100 offers bothhorizontal and vertical isolation.Regardless of the addition or removal of load, the worksurface, which is supported by a VibraDamped steel frame with an Active-Air suspension, will always remain at a predetermined zero deflection level.

The 9100 Series can be field-converted to the required capacity and comes with two load capabilities.

Typical Applications

Atomic force microscopes, wafer probing, mask alignment, confocal microscopes, analytical balances, cell injection, patch clamping, optical microscopes, and microscopes.

Optional Accessories

Choose from the following components to create a workstation that meets the stringent requirements:

Overhead Rear Equipment Shelf

Overhead Side Equipment Shelf

Enclosures – Additional Protection for your Sensitive Equipment

Portable Air Compressor

Electrical Outlet Strip

Custom Sizes

Class 10 Cleanroom Compatible Finish

Guard Rails – Front and Rear

Side Guard Rails

Padded Arm Rests

Retractable Casters – Easily Move your Workstation in the Lab

Faraday Cage

Fixed Shelves – Standard and Custom Sizes

Sliding Shelves – Gain More Tabletop Work Area

Monitor Support – Offered for Both CRT and FPD

Keyboard Shelf

Features and Benefits

Horizontal vibration isolation

Vertical vibration isolation

VibraDamped steel frame

Maintains a pre-setzero deflection level(independent of addition or removal of load)

High-performance Active-Air Suspension

Select from 12 pre-made tabletops – personalized tabletops are also available

Select from 12 common sizes–bespoke sizes are alsoavailable

Class 100 Cleanroom Compliant with Ergonomic Design–Class 10 available

Repeatable and precise leveling accuracy to0.001″ withhigh-accuracy valve

Tabletop uplimit travel restraints

Ergonomic styling

Specifications

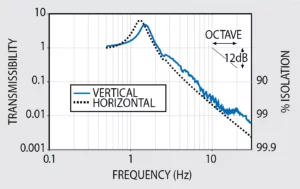

Transmissibility. Image Credit: Kinetic Systems, Inc.

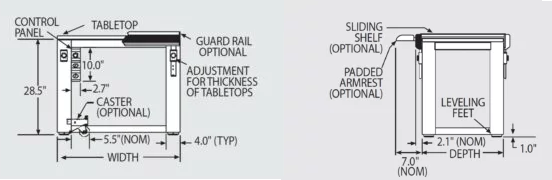

Standard Dimensions. Image Credit: Kinetic Systems, Inc.

Performance Data. Source: Kinetic Systems, Inc.

Note: Typical performance efficiencies are for microdisturbances

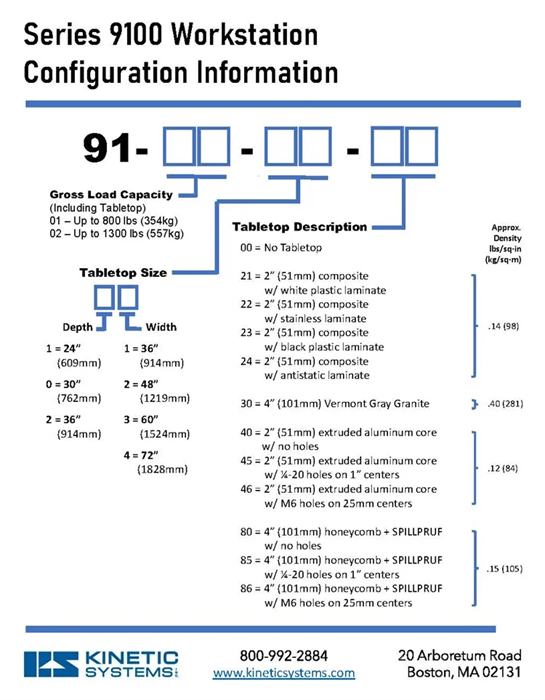

Configuration

Image Credit: Kinetic Systems, Inc.
