Apollo M™ Raman Microspectrometer

TheApollo M^TM Raman micro spectrometer is built for dependability, user-friendliness, and state-of-the-art research.Raman microspectra^TM can be quickly and easily acquired with the Apollo M^TM, allowing one to concentrate on sample measurements rather than instrument operation.

For this reason, it is ideal for ordinary research, advanced research, quality assurance, and failure analysis. The Apollo M™ Raman micro spectrometer uses hardware, software, and optics tuned for Raman spectroscopy of microscopic samples for robust and accurate measurements. It also has a fixed confocal aperture. For quick, non-destructive analysis in disciplines including chemistry, physics, materials science, and biological sciences, the Apollo M^TM Raman micro spectrometer is ideal.

For confocal Raman microspectroscopy, the Apollo M^TM Raman spectrometer is a versatile and modular instrument that is simple to mount on an upright microscope. There are solid-state spectrometers available for both sensitivity and speed.

Scanning spectrometers are also available for sophisticated research. Numerous other aspects could also be included, such as high-resolution mapping of the Raman spectra, kinetic Raman, and photoluminescence microspectroscopy. Combining modules allows for the highest level of experimental versatility.

Apollo M™ can also be integrated with other CRAIC microspectrometers. This adds a huge range of capabilities to the Apollo M^TM such as film thickness measurements and UV-visible-NIR microspectroscopy.

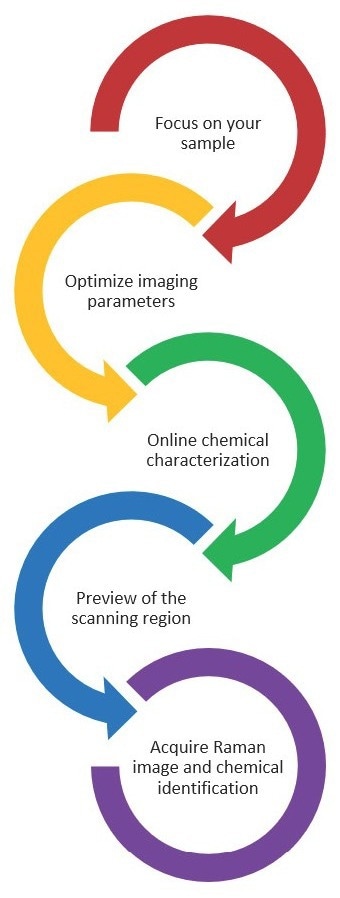

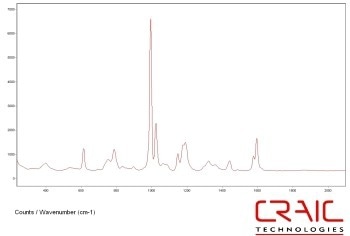

Rapid and simple Raman spectra collection is possible with the Apollo M^TM Raman Microspectrometer. Within seconds, Raman microspectroscopy is executed by it.

Image Credit: CRAIC Technologies

Image Credit: CRAIC Technologies

Apollo M Raman MicrospectrometerPlay

Video Credit: CRAIC Technologies

Key Features

Superior Raman microspectroscopy performance

Sturdy, dependable, and potent

Use alone or add toa CRAIC UV-VIS-NIR Microspectrophotometer

Other laser wavelengths are available upon request in addition to the standard405, 532, 633, 785, and 830 nm.

This is a Class IIIB laser product.

Solid-state Lightblades™ Raman spectrometers are the default choice for high speed and sensitivity.

Raman spectral imaging

Simple to operate and keep up

From the microspectroscopy specialists

Add to a Microspectrometer

Do More by Adding Apollo M™ to a CRAIC Microspectrophotometer

Measurements of thin film thickness

Colorimetry in small-scale specimens

UV-visible-NIR microspectroscopy of absorbance

UV-visible-NIR microspectroscopy of reflectance

UV, visible, and near-infrared fluorescence microscopy

UV, visible, and infrared polarization microscopy

Operation: completely automated or manual

Exact control of sample temperature

Specialized software for image processing, spectral databases, statistical analysis, and other uses

Image Credit: CRAIC Technologies

Spectral Surface Mapping

5D Hyperspectral Surface Mapping

Combines technology and software to enable microscopic spatial resolution, 5D mapping of samples, and automated spectrum analysis. Samples' Raman spectra could be turned into three-dimensional maps.

Image Credit: CRAIC Technologies

Applications

Biology and Life Sciences

Carbon nanotubes and graphene in materials science

Nanoparticles

Earth Science

Chemistry of Energy Catalysts

Science of Semiconductors

Analysis of Process Contamination

Control of Pharmaceutical Quality

Explosives and Misuse of Substances

WMD Examining
