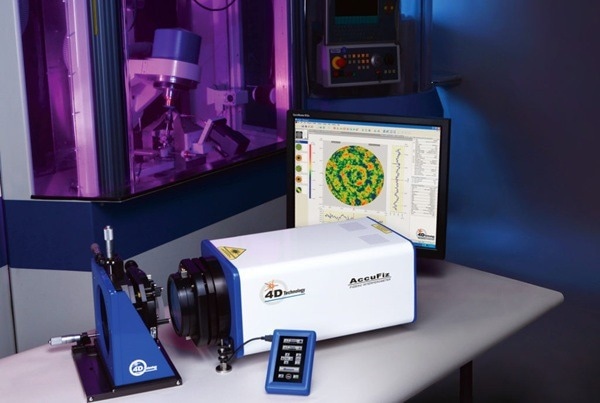

AccuFiz Infrared Interferometers for IR Optics and Precision Surfaces

AccuFiz infrared interferometers deliver precise measurements of IR optics and precision surfaces. These infrared laser interferometers are well-suited for measuring concave, convex, and afocal IR components, along with infrared telescopes and lens systems. Their capability to capture high slopes enables the measurement of aspherical optics without needing a holographic element.

AccuFiz IR interferometers come equipped with standard features, including a touch-screen remote and fully motorized controls. The optional dynamic measurement mode allows for measurements to be taken despite vibration and air turbulence without needing an air table. Only AccuFiz offers Smart Zoom^™ to guarantee precise lateral resolution across the full 1×–10× zoom range. Diffraction-limited imaging provides exceptional resolution, especially at mid-spatial frequencies, enabling the detection of polishing artifacts that other interferometers may miss.

AccuFiz NIR. Image Credit: 4D Technology

Operates at 1.053 or 1.064 μm

AccuFiz SWIR. Image Credit: 4D Technology

Operates at 1.55 µm

AccuFiz IR Specs

Source: 4D Technology

Full Range of Options and Accessories

The AccuFiz family is designed for flexibility, offering a variety of laser sources, aperture sizes, mounting components, and accessories.

Image Credit: 4D Technology

Simplified Alignment

Quickly set up with the visible alignment beam and dual-spot camera-based alignment aid.

Image Credit: 4D Technology

Image Credit: 4D Technology

Fizeaus and Optical Production

AccuFiz IR Fizeaus are ideal for optics manufacturing.

Qualify shape and mid-spatial frequencies

Measure flats, spheres, cubes, and mirrors

Conduct wavefront transmission quality measurements

Offer fast and precise measurements

Suitable for use in Aerospace, Semiconductor, and Optics industries

Image Credit: 4D Technology
