Vectorextensometer U70 for Single Variable Gage Length Measurement

Tinius Olsen unveils Vector, a groundbreaking advancement in extensometer technology set to replace multiple sensors—both contacting and non-contacting—with a single, industry-tailored instrument.

By fusing adaptive AI capabilities with optical hardware, Vector automates the strain-capturing process and improves operator safety, measurement accuracy, and data consistency while lowering test throughput times and complexity.

Features and Benefits

Non contacting with digital placement of specimen gage marks supporting an automated process.

0.5 μm resolution (1.9685039e-5 inch), capable of ASTM E83 Class B1 and ISO 9513 Class 0.5.

Various marking options are available, depending on the material. These options include rings and speckles.

Output data available in analog formats.

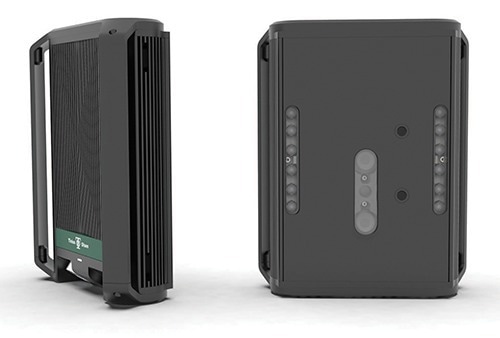

Image Credit: Tinius Olsen

Specifications

Field of View: 70 H × 25 W × 40 D [mm] fixed Cuboid

Real-Time Data Rate: ≤ 150 Hz, platform dependent. Full system from acquisition to output

Strain Outputs: Analog Output: ±10 V, short-protected, selectable units and range; includes 3 m (10 ft) shielded output cable

Resolution: <0.5 μm quasistatic and cyclic; Typical RMS resolution at typical settings. Resolution is a function of the marking data rate and filter settings

Extensometer Accuracy Class: ISO 9513 Class 0,5 and ASTM E83 Class B-1 capable

Image Credit: Tinius Olsen
