Universal Testing Machines from Applied Test Systems

Applied Testing Systems’ electromechanical Universal Testing Machines can conduct tests on a wide variety of materials when coupled with the company’s unparalleled offeringof custom and standard testing accessories. Just like in all ATS test systems, the company's skilled engineering department can tailor any standard frame designs to be compatible with almost any application or space limitation.

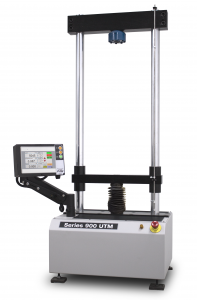

Series 900

Series 905 and 910 Universal Testing Machines (UTMs) are compact, bench-top models. Such UTMs offer an economical solution to precision testing that requires high precision in capacities up to 5,000 and 10,000 lbs, respectively.

Every UTM consumes a minimal quantity of valued laboratory space. It can conduct various tests on multiple materials, along with compression, tension, and flexure tests.

An extra-large testing area easily accommodates different test setups.The rigid column construction with a single-screw drive offers accurate alignment at the time of testing procedures. Series 900 Universal Testing Machines have been developed with a simple touchscreen user interface, makingthem valuable for quality control applications.

Image Credit: Applied Test Systems

Features

Durable, long-lasting testing equipment that comes with intuitive, easy-to-use software and affordable pricing

Complete line of optional accessories that are available for a multitude of various applications

7-inch touch screen HMI displaymounted on an articulated, flexible arm

Huge testing space to house a range of specimens

Manually adjustable limit switches and upper crosshead

Crosshead guidance offered by independent chrome-plated guide rods

System features comprise return to zero, up/down jog buttons, peak load/displacement recall, jog/high-speed inputs, two capacities, and an enhanced speed range

Compact design comes in a smaller footprint, making the Series 900 ideal for those with restricted testing space

Safety features consist of an emergency stop system, automatic break detection, and overtravel limits

The customers of Applied Testing Systems have access to its experienced service team to help with technical support, calibration, or other service issues

Optional Accessories

A diverse range of accessories is available to offer comprehensive testing abilities. They are:

Extensometers

Furnaces

Additional Load Cells

Compression Platens

Bend Test Fixtures

Pneumatic Grips

Standard Wedge Grips

Screw Action Grips

Data Acquisition Package

Heating and Cooling Chambers

Extended Crosshead Travel and Vertical Clearance

A/Data Solutions

Data acquisition package

The optional data acquisition package is one of the featured accessories and offers the simplest way to store and analyzeall the test data. Equipped with an easy-to-use LabVIEW interface, A/Data allows users to tailor test details, track test progress, seamlessly gather data, produce test reports, and conduct a fundamental analysis of test outcomes. The convenience and accessibility that A/Data Solutions Package offers make it an essential accessory for anybody who must save their test data for future research and access.

Product specifications

Table 1. Source: Applied Testing Systems

Product specifications subject to change without notice.

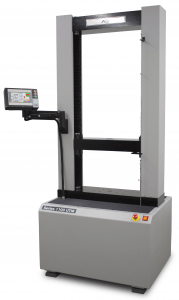

Series 1100

Series 1100 Universal Testing Machines (UTMs) offer an economical solution to precision tension, shear, compression, and flexure tests. With a wide range of models available, the UTMs in this line can house a variety of test specimens and are employed in a broad array of testing applications, from production and quality control.

Series 1101, Series 1105, and Series 1110 are benchtop models with capacities of 1000 lb, 5000 lb, and 10,000 lb. The Series 1120, Series 1130, and Series 1160 are floor models with capacities of 20,000 lb, 30,000 lb, and 60,000 lb.

All models feature a durable, dual screw design for extra precision. A huge testing area enables diverse sample sizes. Series 1100 Universal Testing Machines have been developed with a seamless, exact user touchscreen interface, enabling easy-to-use operation and training.

Image Credit: Applied Test Systems

Features

Durable, long-lasting testing equipment with in-built, easy-to-use software at an affordable cost

Complete line of optional accessories is available for a multitudeof varied applications

7-inch touch screen HMI display mounted on an articulated, flexible arm

Spacious testing area houses a range of specimens

Manually adjustable limit switches

Independent chrome-plated guide rods offer crosshead guidance

System features comprise up/down jog buttons, peak load/displacement recall, return to zero, and jog/high-speed inputs

Customers have access to the experienced service team

Safety features comprise an emergency stop system, overtravel limits, and automatic break detection

Optional accessories

A range of accessories is available to offer prolonged testing abilities. They are:

Furnaces

Bend Test Fixtures

Extensometers

Compression Platens

Pneumatic Grips

Additional Load Cells

Standard Wedge Grips

Screw Action Grips

Data Acquisition Package

Heating and Cooling Chambers

Extended Crosshead Travel and Vertical Clearance

A/Data Solutions

Data Acquisition Package

The optional data acquisition package is a featured accessory with a simple way to stock all of the test data. Using its easy-to-use LabVIEW interface, A/Data allows users to tailor test details, track test progress, seamlessly gather data, produce test reports, and conduct a basic test results analysis. The convenience and accessibility that the A/Data Solutions Package offers make it an important accessory for anyone who wants to save their test data for future use and analysis.

Product specifications

Table 2. Source: Applied Testing Systems

Product specifications subject to change without notice

Series 1600 Universal Testing Machine

ATS Series 1600 Universal Testing Machines (UTMs) are the ideal option for repetitive or complex testing, with the repeatability and convenience of a computer-controlled system. 1600 UTM frames, with capacities of a maximum of 300 kN (67,440 lb), are durable and long-lasting, whereas ATS’ TestVue software acts as a user-friendly interface providing dependable outcomes. Regardless of the application, ATS UTMs can be utilized for allmaterials.

Image Credit: Applied Test Systems

Features

Long-lasting and durable electromechanical test frame with a dual screw drive system

Accurate motion control system

Controlled with the use of ATS’ adaptable yet easy-to-use TestVue software

A broad range of accessories is available, along with grips, furnaces, test fixtures, load cells, temperature chambers, and extensometers

Large testing area houses a diverse range of specimens

System features comprise user-defined test templates, data storage and analysis, graphical test results, and custom report generation

Independent chrome-plated guide rods offer crosshead guidance

Safety features consist of overtravel limits, manually adjusted limit switches, and an emergency stop system

Customers have access to the experienced service team

Product specifications

Table 3. Source: Applied Testing Systems
