Thermo Fisher Scientific 5014iQ Beta Attenuation Monitor

Thermo Scientific^TM 5014iQ Beta Attenuation Monitor tracks TSP, PM-2.5, PM-10, and PM-1 levels in the surrounding air. A filter tape that moves automatically to a clean spot to collect PM samples minimizes the need for an attended operation. To help reduce particle loss, user-defined parameters like mass accumulation limits, flow rates, and continuous pattern advance to control the filter tape advance.

The device monitors the sample's conditions, removing moisture effects, adjusting the control system to only heat when needed, and ensuring that volatile aerosols are preserved for precise measurement.

Product Overview

Specifications. Source:Thermo Fisher Scientific – Environmental and Process Monitoring Instruments

.	.
Flow Rate	1 m³/h (16.67 L/min) measured across an internal subsonic orifice, user-selectable 14 to 20 lpm
Gases Measured	Carbon-14 (C-14), < 3.7 MBq (<100 μCi)
Temperature (English) Operating	The temperature of sampled air may vary -30 to 50 °C. 5014iQ Monitor must be weather protected within range 4 to 40 °C, an optional complete outdoor enclosure provides complete weather protection
Accuracy	±5% using SI-traceable mass foil set (for mass measurement)
Certifications/Compliance	U.S. EPA PM-2.5 equivalent monitor (EQPM-1609-183)
CommunicationProtocols	MODBUS, TCP/IP, Gesytec (Bayern-Hessen), streaming data and NTP (Network Time Protocol) protocols. Simultaneous connections from different locations over Ethernet
Concentration Measurement Range	60 to 3,600 seconds and 24-hour
Data Averaging	Every 1 second
Depth (English)	21.16 in
Depth (Metric)	53.8 cm
Description	5014iQ Beta Attenuation Monitor
ElectricalRequirements	Designed to meet CE: EN61326: 1997 + A1: 1998 + A2: 2001 + A3: 2003, EN61010-1 UL: 61010-1: 2004; CSA: C22.2 No. 61010-1: 2004; FCC: Part 15 Subpart B, Class B, UKCA
Height (English)	12.2 in
Height (Metric)	31 cm
Measurement Range	0 to 10,000 μg/m³
Outputs	Standard ports 3 full-speed USB ports (one in front, two in rear) 1 gigabit ethernet port Analog I/O (optional) 4 isolated voltage inputs 0–10 V 6 isolated analog voltages outputs, with 4 selectable ranges 6 isolated analog current outputs, with 2 selectable ranges Digital I/O (optional) 16 digital inputs (TTL) 8 solenoid driver outputs,10 digital reed relay contact outputs Serial ports (optional) 1 RS-232/485 port, 1 RS-485 external accessory port
Precision	±2.0 μg/m³, <80 μg/m³, 4–5 μg/m³ > 80 μg/m³ (24-hour average)
Resolution	0.1 μg/m³
Sampling Flowand Control	Sample flow precision: ±2% of measured value Sample flow accuracy: <5% of measured value
Wattage	100–240 VAC, 50–60 Hz recommended, 805 watts (115 V) 880 watts maximum (220–240 V (instrument, heater & pump)
Weight (English)	< 55.1 lb
Weight (Metric)	< 25 kg
Width (English)	16.73 in
Width (Metric)	42.5 cm
Unit Size	Each

This state-of-the-art monitor features:

US EPA approved PM-10 (EQPM-1102-150) and PM-2.5

(EQPM-0609-183) equivalent monitor

Remote access to data

Ongoing evaluation

Prolonged absence of supervision

High resolution, accuracy, and low detection limit

ePort communication software and an improved user interface

Improved connectivity over Ethernet

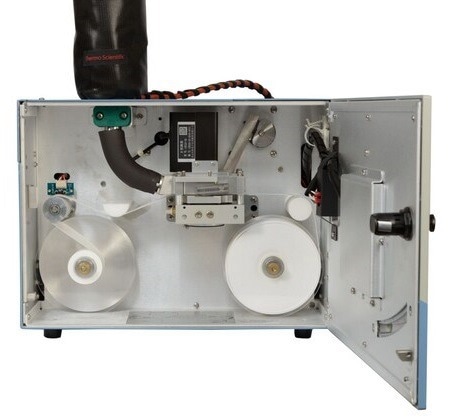

5014iQ Beta Attenuation Monitor.

5014iQ Beta Attenuation Monitor.Image Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments

5014iQ Beta Attenuation Monitor.

5014iQ Beta Attenuation Monitor. Image Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
