The HyperFine Spectrometers for Characterizing Laser Sources

The HyperFine series of spectrometers, based on LightMachinery's patented VIPA technology, are designed for measuring hyperfine spectra and small spectral shifts. The HyperFine spectrometer, available from LightMachinery, is a compact, inexpensive spectrometer with sub-picometer resolution.

This spectrometer is an ideal choice for pulsed laser characterization as well as for measuring the subtle spectral shifts from Brillouin scattering. Using simple PC-based software, the user can review spectra in real-time and can save or export these spectra for more analysis. LabView drivers allow the HyperFine spectrometer to be incorporated into automated experimental setups.

Features

The key features of the HyperFine spectrometer are as follows:

Fiber optic input

Sub-picometer resolution

LabView Drivers

Simple to use

Quick data acquisition and export

Simple USB interface

No moving parts (single shot laser spectrum analysis)

How Does it Work?

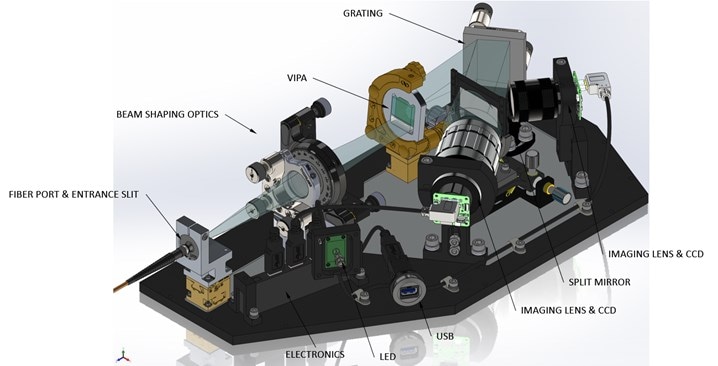

Light enters the HyperFine spectrometer via a fiber or it is directly imaged onto the slit. A VIPA etalon, which was manufactured using the proprietary fluid jet polishing technology of LightMachinery, is employed to produce extremely high dispersion in the vertical axis with sub-picometer resolution.

Next, a standard grating is used to disperse overlapping orders in the horizontal direction and to generate a 2D spectrum of the input light. LightMachinery’s software unwraps the spectrum in order to generate an ultra-high-resolution wavelength spectrum of the input light. The spectrometer also uses a secondary camera to provide a wide wavelength range and lower resolution view of the spectrum.

Benefits

Compact

Low cost

Fast

Ultra-reliable

Can resolve hyperfine spectra below 1 pm

LightMachinery's legendary customer support

Applications

The main applications of the HyperFine spectrometer are as follows:

Spectroscopy

Brillouin spectroscopy

Femtosecond comb fingerprinting spectroscopy

High-precision gas spectroscopy

Plasma spectroscopy

Spectral-domain optical coherence tomography, etc

Light sources characterization

Super luminescent diodes

Single shot pulsed laser spectrum

Lasers of all types

Gas discharge lamps, etc

Passive components characterization

Etalons

Notch filters

Fiber Bragg gratings, etc

Specifications

Resolution: sub 1 pm at 532 nm (resolving power > 500,000)

Accuracy: <2 pm following calibration

Dynamic Range: >10^6 for the system, 256 in a single measurement

Wavelength range 1: 10 nm range with sub picometer resolution, user adjustable over 100 nm

Wavelength range 2: 100 nm range with sub nanometer resolution, factory adjustable from 400 nm to 700 nm

Simultaneous range / resolution: >10,000 at 532 nm

Acquisition speed: >2 Hz typical

Calibration: an external reference source is required
