The Bettersizer 2600 Particle Size and shape Analyzer (DIA + LD)

The Bettersizer 2600 utilizes proven Laser Diffraction (LD) Technology to measure particle sizes ranging from 0.02 to 2,600 μm. Its modular design provides versatile functionality, with the dynamic imaging module enabling combined laser diffraction and dynamica imaging analysis (DIA). This extends the measurement range to 3,500 μm while allowing for both particle size and shape analysis. Additionally, the system's flexible dispersion modules support both dry and wet dispersion methods, catering to a wide range of measurement needs.

Ask an Expert! Introducing Bettersizer 2600Play

Video credit: Bettersize Instruments Ltd.

Features and Benefits

Technology: Laser diffraction, dynamic imaging

Particle size range: 0.02 - 2600μm (LD Wet) / 0.1 - 2600μm (LD Dry) /2.0 to 3,500 μm (DIA)

Patented technology utilizing both Fourier and Reverse Fourier optical systems

Optical bench with 92 detectors covering an angular range of 0.016° - 165°

Easy and fast to changeover between dispersing modules

Dual-camera imaging technology can show particles images in real time and detect oversized particles up to 3500 um

Refractive index measurement for providing a more accurate parameter to calculate the results.

User-friendly software, easily learnt

Dynamic Imaging Module: PIC-1

The PIC-1 dynamic imaging module is a versatile and comprehensive dynamic image analysis instrument, designed for seamless integration with the Bettersizer 2600 laser particle size analyzer and the wet dispersion system.

Parameter and Specification of PIC-1

Particle size range: 2 – 3,500 μm*Size and shape parameters: 24Camera type: CMOS sensor, 1.5 MegapixelsMagnification: 0.5x and 10xImaging rate: 120 fpsIllumination: White and blue LEDImage recognition: Up to 10,000 particles per minute

Source: Bettersize Instruments Ltd.

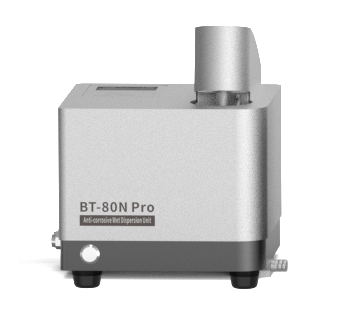

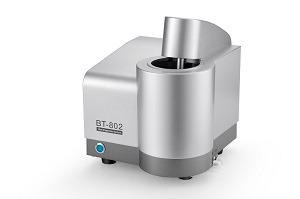

Sample Dispersion Modules	BT-802	BT - 804	BT-80N	BT - 80N Pro	BT-902	BT-903
Sample Dispersion	Wet sample dispersion	Wet small volume sample dispersion	Anti-corrosive sample dispersion	Anti-corrosive Wet sample dispersion	Dry sample dispersion	Dry small volume sample dispersion
Dispersion Modules
Combine with Main Device
Volume / Sample Mass	600 mL	8 mL	50 - 80 mL (dispersion medium)	80 - 200 mL(dispersion medium)	0.2 g-10 g	0.05 g-1 g
Automation	Fully automated	Semi-automated	Semi-automated	Fully automated	Fully automated	Fully automated

Smart and Powerful Software

Easy operation and a clear intuitive interface

Easy to use SOP operation

Automatic cleaning routine

Real-time mode for finding out the ideal measurement conditions

Completely automated measurement routine with automatic calibration

Conversion from wet to dry dispersion can be done just by clicking a button

Editable reports and automatic data backup

Precise analysis achieved by suitable use of either the Fraunhofer or Mie evaluation models based on sample type and sample size

Applications:

The instrument finds applications in the following fields:
