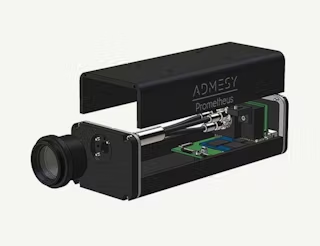

Spot Measurement with the Prometheus Colorimeter

Prometheus is a solution for all forms of display spot measurement. This colorimeter series was created to meet user demands by incorporating flicker and response time measurement options into the color measurements.

It has a greater dynamic range and faster sampling speed than the trusted Hyperion colorimeter. Prometheus, like the rest of the Admesy series, is built to last and is simple to incorporate into production applications. It also has a good price-performance ratio.

Lens Options

Prometheus is available with a variety of lenses. Collimating lenses with spot sizes of 10 mm, 20 mm, and 27 mm are available for general display measurements. A focusing lens variant with a 2.1 mm or 5 mm spot size is also available for small areas of interest or unique applications such as camera-under-display testing.

The table below divides the various lens options into three fundamental sensitivity ranges, which correspond to the necessary measurement speeds. When compared to the “Standard Sensitivity” options, Prometheus colorimeters with “Improved Sensitivity” have around a 3 to 4 times higher sensitivity.

The “Highest Sensitivity” device options are approximately 2.5 to 3 times more sensitive than the “Improved Sensitivity” device options. The product specifications include precise performance metrics.

Source: Admesy

Spot Size / Model	Acceptance Angle	LensType	Standard Sensitivity	Improved Sensitivity	Highest Sensitivity
2.1 mm	± 10°	Focusing
5 mm	± 5°	Focusing
10 mm	± 2.5°	Collimating
10 mm WA	± 6°	Collimating
20 mm	± 3°	Collimating
27 mm WA	± 4.5°	Collimating

Build to Perform and Ready to Use

High Performance

Admesy is constantly innovating, creating better, faster, and more precise technologies, with theaim of providing the most advanced test and measurement equipment solutions to its customers.

Image Credit: Admesy

Easy to Integrate

Admesy’s measurement solutions are simple to incorporate into the manufacturing or product development workflow. Together, Admesy determines the optimal solution for the application in question — choosing from a range of different lens options.Hardware and software are seamlessly intergrated.

Image Credit: Admesy

Value for Money

What sets Admesy’s spectroradiometers apart from their competitors istheir repeatability and precision, as well as their durability and low cost; thus, they are regarded as a smart choice. Admesy promises value for money.

Image Credit: Admesy

Satisfying Customer Needs

In a fast-paced and ever-changing display market, customers continue to innovate, pushing the limits of current display technologies. Admesy encourages both creativity and imagination. The measuring systems are constantly developed and ready to meet the most recent measurement requirements.

Measurements Users Can Trust

High precision and repeatability are the characteristics that any high-end measurement solution requires, andthat is exactly what Admesy provides.

Image Credit: Admesy

Running 24/7

The Prometheus series is optimized for production in two shifts or 24/7.

Image Credit: Admesy

Lowest Takt Times

Fast takt times are critical in any manufacturing environment. Admesy assists the user in selecting the best solution for this.

Image Credit: Admesy
