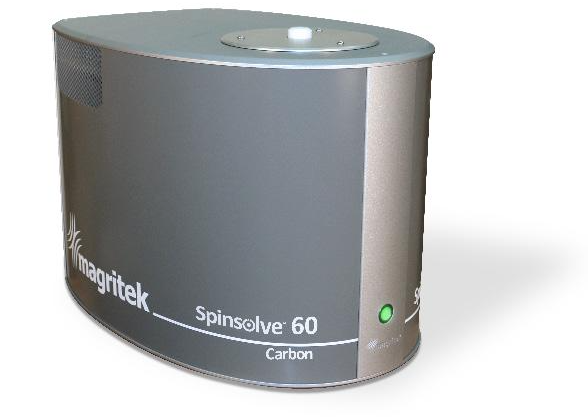

Spinsolve 60 Carbon Benchtop NMR Spectrometer

The Spinsolve 60 Carbon benchtop NMR spectrometer offers users an outstanding 60 MHz NMR spectrometer in a compact benchtop instrument. A wide range of ¹H, ¹⁹F, and ¹³C NMR experiments can be carried out with the Spinsolve 60 Carbon directly from the lab bench and features beautifully simple software that is easy to use. No cryogens are required, the system operates with a permanent magnet and requires only a standard power socket to run.

Applications for the Spinsolve 60 range from work in research labs, industrial QA/QC, and in education for undergraduate students.

Features of the Spinsolve 60 Carbon include:

Wide range of 1D and 2D NMR experiments

¹H, ¹⁹F, and ¹³C nuclei can be measured

No spinning or compressed gas

Compact, benchtop size and weight

No cryogens

Example spectra from the Spinsolve 60 Carbon benchtop NMR spectrometer. More examples can be found athttps://magritek.com/resources/spectra-library/

2M Ibuprofen, 1D proton, single scan, 10 seconds.

Neat Diethyl phthalate. 1D Carbon plus three DEPT spectra,total time 10 minutes.

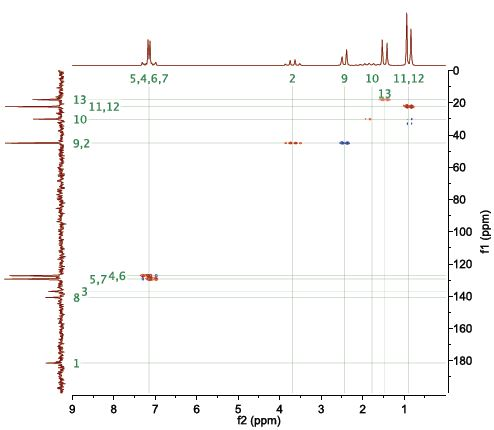

2M Ibuprofen, HSQC-ME, ~1 hour.

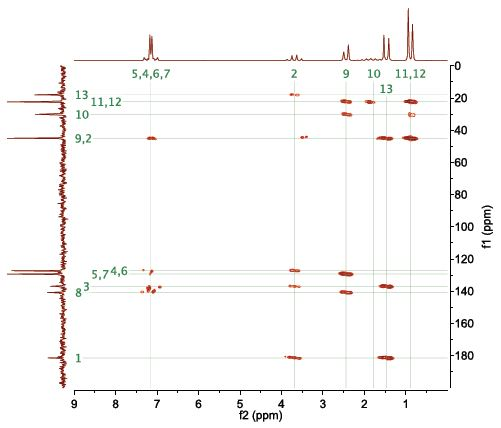

2M Ibuprofen, HMBC, ~2 hours.

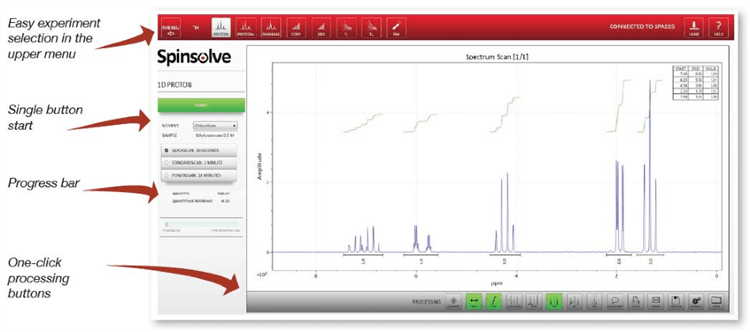

Software

The Spinsolve software is user-friendly and easy to use. Itfeaturesa clean and intuitive interface and provides all the functionality required to acquire and process data. Spectra can easily be exported to other data processing packages.

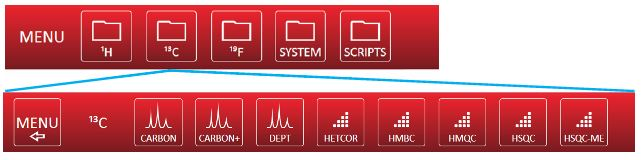

Intuitive Menu

All users need to do to begin running experiments with the Spinsolve 60 Carbon is to choose a nucleus and an experiment they wish to run and click start. All the calibration and configuration is done automatically by the instrument.Processing can be applied afterward, and users can generate PDF reports and export data to other software as required.

Spinsolve 60 Carbon Specifications

The specifications of the Spinsolve 60 Carbon are as follows:

Nuclei: ¹H, ¹⁹F, ¹³C

Operating frequency: 60 MHz (¹H)

¹H 50% Linewidth: <0.5 Hz

¹H 0.55% Linewidth: <20 Hz

¹H Sensitivity: >120:1 for 1% Ethyl Benzene

Operating Temperature Range: 20 °C to 25 °C (68 °F to 77 °F)

Dimensions: 58 x 43 x 40 cm (23” x 17” x16”)

Weight: 60 kg (120 lb)

Stray Field: <2 G all around system

Power requirement: 110-240 V AC.

The pulse sequences available on the Spinsolve 60 Carbon spectrometer include:

¹H Sequences

1D

Paramagnetic

2D COSY

2D TOCSY

2D JRES

T₁, T₂

Reaction monitoring

¹⁹F Sequences

1D

Paramagnetic

2D F – COSY

2D F – JRES

2D FH – COSY

Reaction monitoring

¹³C Sequences

1D

DEPT

HETCOR

HMBC

HMQC

HSQC

HSQC-ME

Other sequences areavailable. For details, contact Magritek.
