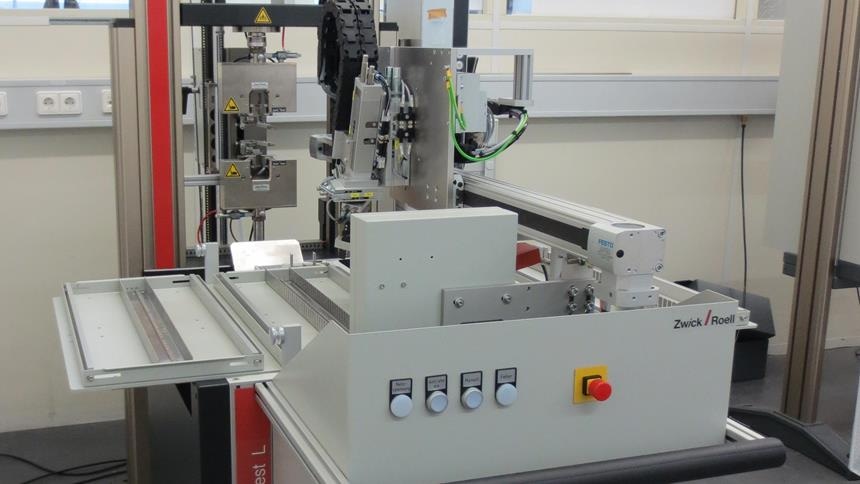

roboTest L Robotic Testing System for Flexure Tests on Plastic Specimens

The roboTest L (linear) robotic testing system from ZwickRoell is used to carry out fully automated tensile tests on metal specimens (for instance, to ISO 6892, JIS Z2201, and ASTM E8,) or tensile and flexure tests on plastic specimens (for instance, to ISO 527-2 (1A, 1B, 1BA), ASTM D790 (IV) or ISO 178).

Description

System can be connected to materials testing machines from 5 to 250 kN

Magazine comprises of 160 to 600 specimens (based on specimen dimensions)

Specimens up to 1 kg in weight can be examined

Removable magazine inserts can be filled at operator’s workplace. Otherwise, specimens can also be integrated during the automatic sequence in the magazine

Manual tests can be carried out whenever necessary — the specimen feeder just swings out of the way for access

An independent version of roboTest L is available for testing O-rings

roboTest L can also be utilized for feeding specimens to other equipment (for example, notch-cutting machines and hardness measuring instruments)

An industrial controller with autoEdition2 automation software controls the system

Optional extras comprise of a barcode reader, HOST connection, cross-section measuring device, disposal gripper, accept/reject feature, and status indicator

Advantages and Features

Qualified laboratory staff are relieved of basic activities, freeing them for more multifaceted tasks

Operator influences (off-center or angled specimen insertion, hand temperature/moisture, etc.) are excluded for high test result reproducibility

Testing system decreases the testing costs for each specimen and normally pays for itself in one to two years

Machine can be used during idle times (night shifts and lunch breaks), which utilizes the total capacity and generates quicker results

System enables dependable documentation and statistical long-term monitoring

Two New Robotic Testing Systems for Hydro Aluminum

Hydro is one of the largest aluminum suppliers in the world. The increasing worldwide demand for lightweight metals also has implications for quality control; so as to offer testing capacity in line with the bigger production volume, the company has purchased two new ZwickRoell robotic testing systems.
