Revealing Natural States of Materials with Environmental Scanning Electron Microscopy (ESEM)

The Thermo Scientific Quattro ESEM offers comprehensive performance in both imaging and analytics, featuring a distinctive environmental mode (ESEM) that enables the examination of samples in their natural state.

This model is ideal for various academic, industrial, and government labs that want the versatility and ease of use required for users of varying experience levels and disciplines on a platform that supports uniquein situexperiments.

To ensureexcellent resolution,the Quattro ESEM features a field emission gun (FEG). Meanwhile, its three vacuum modes (high vacuum, low vacuum, and ESEM) offers the flexibility to accommodate the widest range of samples of any SEM currently on the market, including those that are outgassing or otherwise not vacuum-compatible.

Best in Class for In Situ Imaging Capabilities, Dynamic Experiments with Excellent Analytical Capabilities

The Quattro ESEM is a highly flexible platform forin situdynamic experiments. Thanks to itsenvironmental SEM capability, theQuattro ESEM enables scientists to study materials in a variety of conditions, such as wet/humid, hot, or reactive environments, as they develop new materials and products. It also supports heating and cooling experiments both in high vacuum and low vacuum to accommodate the widest range of needs.

Experiments involving the cooling of wet materials can be conducted using either the Peltier cooling stage or, for transmission mode requirements, with Thermo Scientific WetSTEM Technology. In Addition, Furthermore, the Quattro ESEM offers various options for heating samples, applicable to both bulk materials and powders.

Users can perform dynamic experiments at high temperatures both in high vacuum (with thehigh-vacuum heating stage), in low-vacuum/ESEM mode (with the twoESEM heating stagesfor temperatures up to 1,000 °C and 1,400 °C), and on a localized area for better control of the temperature change (with the Thermo ScientificµHeaterHolder).

Thanks to its chamber capacity, a range of accessories can be used with the Quattro ESEM. Its analytical capabilities also encompass wavelength dispersive X-Ray spectroscopy (WDS), electron backscatter diffraction (EBSD) coplanar with EDS, and energy dispersive X-Ray spectroscopy (EDS) with ports for 180-degree dual EDS attachment.

Moreover, the Quattro ESEM is equipped with the innovative Thermo Scientific ChemiSEM Technology. This feature introduces live elemental imaging directly integrated into the SEM user interface, offering constant access to compositional data through an exceptionally user-friendly interface.

Diverse Material Application Observed with the Quattro ESEM

Metals and alloys (metallic filter). Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

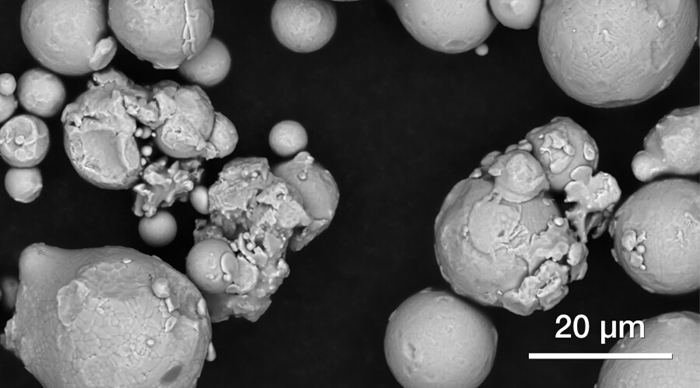

Additive manufacturing powder. Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

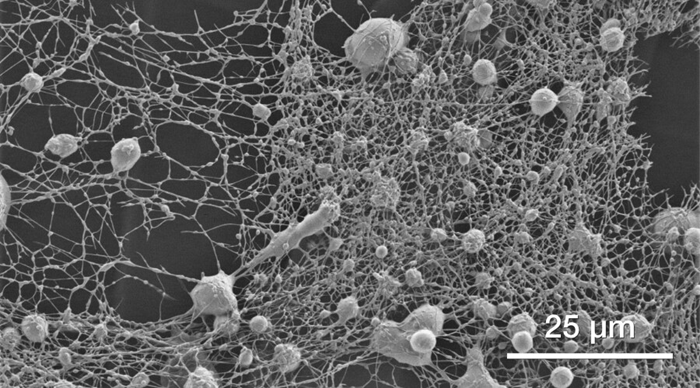

Soft materials (polymeric fibers). Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

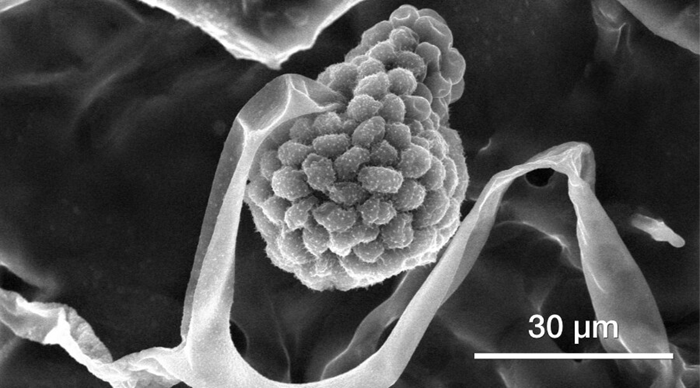

Biological samples (mold spores).Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

Geological materials (diamonds).Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

Minerals (shell’s surface).Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

Ceramics (zirconia in a thermal barrier coating). Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

Soft materials (cross-section of a tire). Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

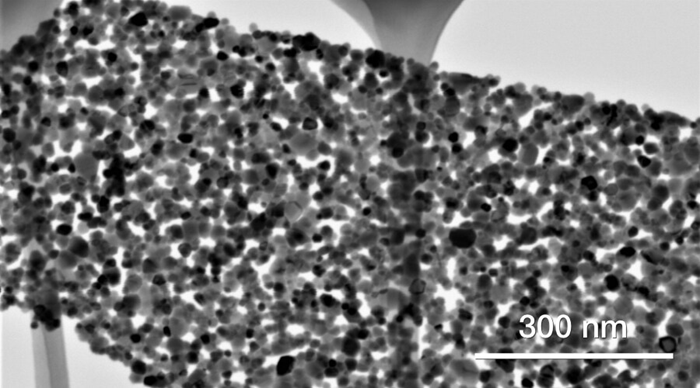

Chemicals (zinc oxide nanoparticles assembled into platelets). Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

Quattro Environmental Scanning Electron Microscope Features

Dynamic In-Situ Experiments

In situstudy of materials in their natural state: unique high-resolution FEG-SEM with environmental mode (ESEM). It allows for in situ analysis at temperatures spanning from -165 °C to 1,400 °C, facilitated by a selection of cryo, Peltier, and heating stages.

Peltier cooling experiment of sodium sulfate crystals in sandstone. Video Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

An in situ cooling experiment carried out on a sample of sandstone containing sodium sulfate crystals. The experiment’s goal was to investigate the behavior of sodium sulfate at full saturation. The temperature was kept at 2 ˚C by varying the pressure up to 700 Pa. Samples were provided by the Academy of Science, Czech Republic’s Institute of Theoretical and Applied Mechanics.

μHeater Holder heating experiment of magnetite and hematite. Video Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

A heating experiment carried out using the μHeater Holder. The video shows the heating of a mix of magnetite and hematite from 40 ˚C up to 1,000 ˚C.

Wide Range of Information

Users can observe all information from all samples with simultaneous SE and BSE imaging in every mode of operation. Several additional detectors, such as the STEM3+ detector and the retractable RGB cathodoluminescence (CL) detector, are available to help accommodate the needs of every single user and offer a complete set of information from a wide range of materials.

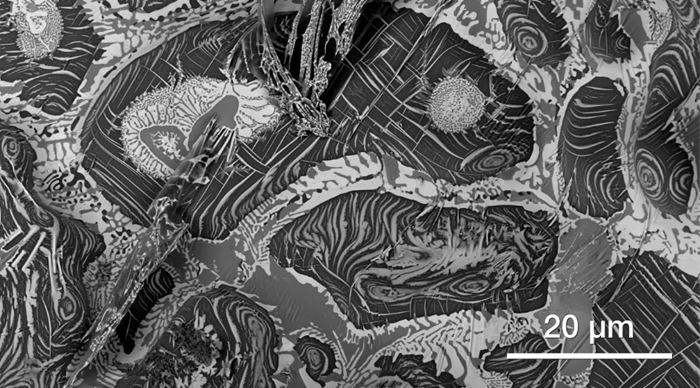

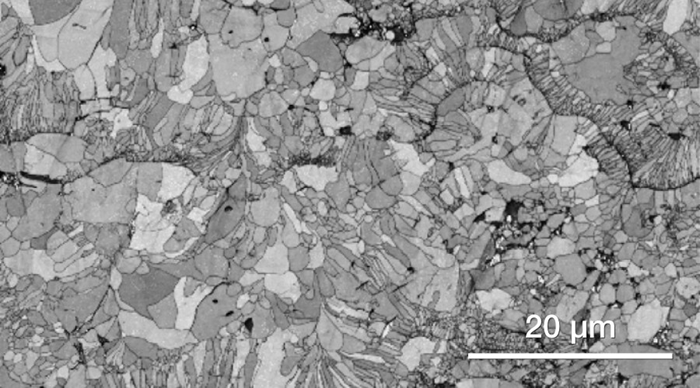

Material contrast from a mix of different metals. Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

Bright-field (BF) STEM3+ image of a biological section of a planarian. Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

CL image of diamonds. Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

Excellent Analytical Capabilities

Outstanding analytical capabilities with a flexible chamber that can accommodate multiple EDS, EBSD, or WDS detectors. Elemental information is available at your fingertips thanks to Thermo Scientific's ChemiSEM Technology, which offers live, quantitative, elemental mapping for unprecedented ease of use and time to result.

The Quattro ESEM's through-the-lens pumping enables precise EDS and EBSD analysis of non-conductive samples, even in low vacuum conditions.

ChemiSEM image of dental filling material, showing a mixture of Hg, Cu, Sn and Ag. Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

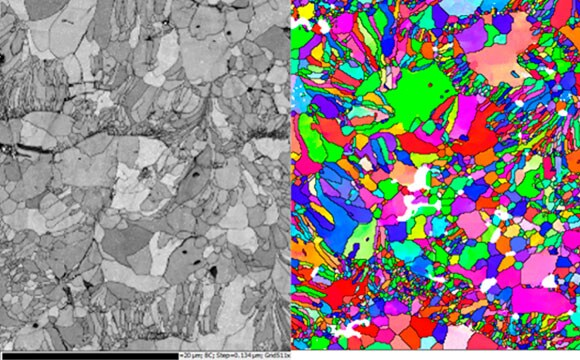

EBSD on ceramic materials in low vacuum. Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

Minimize Sample Preparation Time with the Unique Combination of High-Vacuum, Low-Vacuum, and Environmental Modes

Polymeric fibers (low vacuum imaging, 80 Pa). Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

Hydrated mold spores (ESEM imaging, 800 Pa). Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

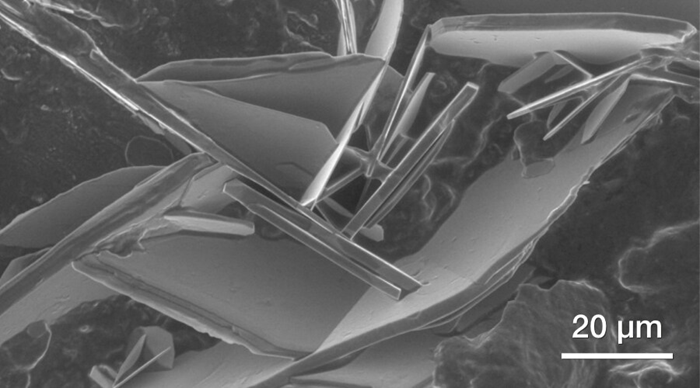

Salts on bacon (ESEM imaging, 700 Pa). Image Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

Ease of Use with Innovative Options and Advanced Automation

Easy to use, intuitive software with User Guidance. The unique Undo function allows for the efficient exploration of imaging conditions, speeding up the process thanks to a couple of clicks of a mouse.

Optimize work andexplore the imaging condition with the unique Undo function. Video Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

Advanced Automation

Depending on the specific application requirements,advanced automation can be provided in different ways, with either Thermo Scientific AutoScript 4 Software or Thermo Scientific Maps Software.

The Quattro ESEM can be controlled with AutoScript 4 software. Utilize an application programming interface (API) based on Python to record and monitor dynamic parameters like temperature, stage location, or pressure or to optimize in situ cooling or heating studies.

Maps Software automates large-area acquisition on numerous samples using up to four simultaneous signals. In addition to a clear increase in system productivity, it offers a multi-scale, multi-layered visualization environment in which 2D and 3D data and imagery can be imported from any source to correlate different modalities.

Live drift compensation with AutoScript 4 Software on an ESEM heating stage experiment. Video Credit: Thermo Fisher Scientific – Electron Microscopy Solutions

ESEM heating stage experiment on a silver wire, heated from 300 ˚C to 530 ˚C. AutoScript 4 Software was used to obtain a live drift compensation through a combination of beam shift and stage moves. This approach yielded a consistent and stable image of the silver wire throughout the entire duration of the recording, even as the wire changed its position on the substrate.

Product Specifications

Source: Thermo Fisher Scientific – Electron Microscopy Solutions
