Puncture Fixture Equipment - Features and Applications

Puncture fixtures are used to evaluate the puncture resistance of materials such as plastic films, fabrics, and geomembranes. ADMET offers customized puncture fixtures, or customers can select fixtures designed according to specific testing methods.

FS-PT-ASTM D751 Puncture Fixture

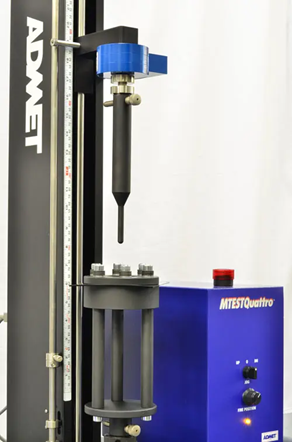

Image Credit: Admet

Testing Standards

ASTM D751 Section 18 & Section 22

Fixture Configurations

ASTM D751 includes two distinct sections dedicated to evaluating the integrity of coated fabrics through burst and puncture testing. Section 18 specifies the use of a spherical plunger for determining the bursting strength, whereas Section 22 employs a sharper puncture probe to measure the puncture resistance.

Both assessments are performed in a compressive mode, with the plunger or probe descending towards the specimen, securely positioned within the FS-PT-ASTM D751 specimen holding ring. This holding ring is consistently used for both testing methods as prescribed by ASTM D751.

FS-PT-ASTM D3787 Puncture Fixture

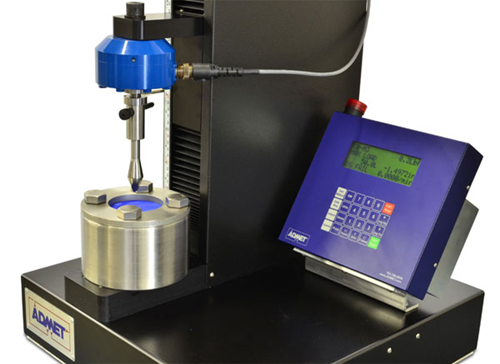

eXpert 7603 performing puncture testing, capable of ASTM D3787. Image Credit: Admet

Testing Standard

ASTM D3787

Fixture Configurations

FS-PT-ASTM D3787 uses a constant-rate-of-traverse (CRT) ball burst test to determine the bursting strength of textiles. It includes a specimen holding ring measuring 44.45 mm (1.75 in) in diameter and a probe with a radius of 12.7 mm (0.5 in). Textiles or fabrics with a high degree of ultimate elongation can be tested using this method. 20 kN and 50 kN fixture options are also available.

FS-PT-ASTM D4833 Puncture Fixture

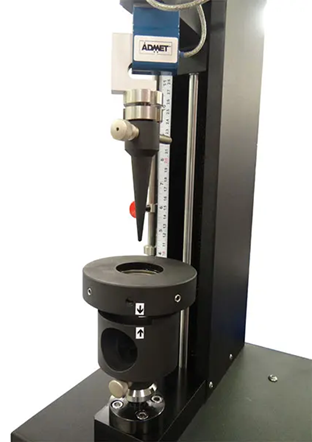

Image Credit: Admet

Testing Standard

ASTM D4833

Fixture Configurations

The FS-PT-ASTM D4833 features an 8 mm diameter probe and a 45 mm diameter specimen holding ring designed to assess the puncture resistance of geomembranes and similar products. 20 kN and 50 kN capacity fixtures are available.

FS-PT-ASTM D5748 Puncture Fixture

Image Credit: Admet

Testing Standard

ASTM D5748

Fixture Configuration

To assess the protrusion puncture resistance of stretch wrap film, FS-PT-ASTM D5748 comprises a specimen holding ring with a diameter of 102 mm and a probe with a 9.5 mm radius.

FS-PT-ASTM F1306-SV Puncture Fixture, Small Specimen Version

Packaging puncture test. Image Credit: Admet

Testing Standard

ASTM F1306

Fixture Configurations

The ASTM F1306 standard outlines a test method for measuring the slow rate penetration resistance of flexible barrier films and laminates. ADMET provides the FS-PT-ASTM F1306-SV, designed to test samples up to 35 mm (1.375 inches) in diameter, using a probe with a radius of 1.6mm, as stipulated by the standard. Additionally, for single-column universal testing machines with throat lengths shorter than 203 mm (8 inches), ADMET offers a single-column version of the FS-PT-ASTM F1306 fixtures.

FS-PT-ASTM F1306-LV Puncture Fixture, Large Specimen Version

ASTM F1306 on an eXpert 2600 Dual Column Testing Machine. Image Credit: Admet

Testing Standard

ASTM F1306

Fixture Configurations

The ASTM F1306 standard specifies a test method to assess the slow-rate penetration resistance of flexible barrier films and laminates. ADMET provides the FS-PT-ASTM F1306-LV for testing specimens larger than 35 mm (1.375 inches) in diameter, featuring a probe with a radius of 1.6 mm, as defined by the standard. For applications using single-column universal testing machines with throat lengths shorter than 203 mm (8 inches), ADMET also offers single-column versions of the FS-PT-ASTM F1306 fixtures.

FS-PT Custom Puncture Test Fixture

Image Credit: Admet

Admet specializes in designing, constructing, delivering, and integrating custom mechanical test equipment, including puncture fixtures, tailored to meet the unique testing needs of customers. Admet has developed bespoke puncture fixtures for specific materials and testing applications.

Choose the diameter of the hole and the plunger

Plunger Diameter: 2 – 90 mm

Hole Diameter: 5 – 100 mm

The plunger diameter and support can be designed to meet most ASTM, DIN, or ISO standards
