Precision Wavelength Control with Compact Halogen Light Source
The AvaLight-HAL-S-Mini is designed to perform optimally across the visible to near-infrared spectrum. This compact, stabilized halogen light source allows for precise focus adjustment of the fiber connection, enhancing power output at specific wavelengths. It also features adjustable electrical power settings, enabling you to either increase power or extend the bulb's lifespan.
Equipped with a filter slot on its front, the AvaLight-HAL-S-Mini accommodates either 1" round or 2"x2" square filters, allowing you to block certain wavelength ranges or reduce intensity as needed.
The adjustable focus ensures maximum light transmission through the optical fiber. Replacing the bulb is straightforward and can be completed quickly.
An optional combined cuvette holder and attenuator (model CUV-ATT-DA-HAL) is available, along with in-line options such as the filter holder (FH-INLINE) or the attenuator (ATT-INL) for further light modulation.
The optical output can be adjusted using a dongle located on the rear of the device or directly through your spectrometer. At its lowest setting, the light bulb offers a color temperature of 2647 K, which significantly extends its lifespan. When set to the standard or medium mode, the color temperature shifts to 2759 K, delivering approximately 30 % more power with a bulb life of 2000 hours. In high-power mode, the color temperature increases to 2879 K, providing about 70 % more power compared to the long-life mode, though this comes with a shorter bulb lifespan.
The AvaLight-HAL-S-Mini includes an internal TTL shutter, which can be controlled via your AvaSpec spectrometer. This allows the user to utilize the automatic dark save feature in theAvaSoft spectroscopy software.

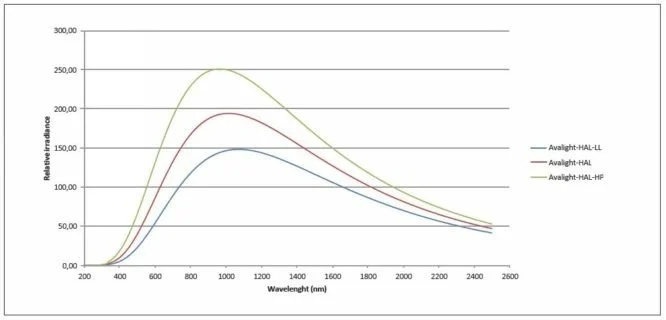

Spectral output of AvaLight-HAL-S-Mini. Image Credit: Avantes BV
Benefits
Stabilized, compact halogen light source
Internal TTL shutter
High-power and long-life modes to meet the individual demands of the user
A variety of accessories are offered for a full setup
Product Information
Technical Data. Source: AvantesBV
| AvaLight-HAL-S-Mini (standard) | AvaLight-HAL-S-Mini (long life) | AvaLight-HAL-S-Mini (high power) | |
|---|---|---|---|
| Wavelength range | 360-2500 nm | 360-2500 nm | 360-2500 nm |
| Stability | < 0.1%/°C | < 0.1%/°C | < 0.1%/°C |
| Drift | < 0.1%/hour | < 0.1%/hour | < 0.1%/hour |
| Time to stabilize | < 20 min | < 20 min | < 20 min |
| Output to bulb | 12.0 VDC/0.87 A | 10.8 VDC/0.8 A | 13.5 VDC/0.93 A |
| Bulb life | 2000 h | 7081 h | 440 h |
| Optical power* 200 µm fiber | 0.59 mWatt | 0.35 mWatt | 0.77 mWatt |
| Optical power* 600 µm fiber | 4.53 mWatt | 3.53 mWatt | 5.97 mWatt |
| Optical power* 1000 µm fiber | 12.1 mWatt | 9.5 mWatt | 15.9 mWatt |
| Bulb color temperature | 2,759 K | 2,647 K | 2,879 K |
| Power requirement | 12 VDC/2.08 A | 12 VDC/2.08 A | 12 VDC/2.08 A |
| Temperature range | 0-55 °C | 0-55 °C | 0-55 °C |
| Dimensions, weight | 150 x 78 x 37 mm, 510 g | 150 x 78 x 37 mm, 510 g | 150 x 78 x 37 mm, 510 g |
| Lifetime shutter | 1,000,000 cycles (typical) | 1,000,000 cycles (typical) | 1,000,000 cycles (typical) |
*Optical power measured from 350-1100 nm
Ordering Information. Source: AvantesBV
| AvaLight-HAL-S-Mini2 | 10 W Tungsten Halogen light source, fan cooled, incl. TTL shutter, needs extra PS-12 V/2.08 A power supply |
| AvaLight-HAL-S-Mini2-RM | Rack-mounted version of AvaLight-HAL-S-Mini2 |
| IC-DB26-2 | Interface cable AvaSpec-USB2/EVO platform to AvaLight-HAL-S-Mini2 for shutter and power setting |
| AvaLight-HAL-B-Mini2 | 10 W Tungsten Halogen Replacement bulb for AvaLight-HAL, AvaLight-HAL-S-Mini(2) |
| PS-12V/2.08A | Power supply 100-240 VAC/12 VDC, 2.08 A, necessary for AvaLight-HAL-Mini2 |
| DONGLE-H | Dongle for high power setting |
| DONGLE-L | Dongle for long life setting |
Options.Source: AvantesBV
| GL-WG305-3 | Separate 50 x 50 x 3 mm long-pass filter > 305 nm |
| GL-KG3-3 | Separate 50 x 50 x 3 mm bandpass filter, transparent > 325 nm and < 700 nm |
| GL-BG28-3 | Separate 50 x 50 x 3 mm bandpass filter, transparent > 360 nm and < 500 nm |
| GL-GG395-3 | Separate 50 x 50 x 3 mm long-pass filter > 395 nm |
| GL-GG475-3 | Separate 50 x 50 x 3 mm long-pass filter > 475 nm |
| GL-OG515-3 | Separate 50 x 50 x 3 mm long-pass filter > 515 nm |
| GL-OG550-3 | Separate 50 x 50 x 3 mm long-pass filter > 550 nm |
| GL-NG9-1 | Separate 50 x 50 x 1 mm Neutral Density filter (transmission ca. 10% 400-1100 nm) |
| GL-NG9-2 | Separate 50 x 50 x 2 mm Neutral Density filter (transmission ca. 1% 400-1100 nm) |
| GL-NG9-3 | Separate 50 x 50 x 3 mm Neutral Density filter (transmission ca. 0.1% 400-1100 nm) |
