Powder Characteristics Tester: HMKFlow 6393

The HMKFlow 6393 range of powder characteristics tester from Dandong HMKTest Instrument Co. Ltd is a device for testing the flowability of powder. The tester is designed in compliance with ASTM D6393 Standard Test Method for Bulk Solids Characterization by Carr Indices.

The HMKFlow 6393 Carr Index Powder Characteristics Tester is an all-inclusive tester with the potential to examine powder flowability. The analysis includes the quantification of Carr angle of fall, Carr angle of repose, Carr angle of spatula, Carr angle of difference, Carr packed bulk density, Carr loose bulk density, Carr cohesion, Carr compressibility, Carr dispersibility, and Carr uniformity.

HMKFlow 6393 has turned out to be the most economical powder testing apparatus that conforms to ASTM D6393. The intelligent software designed by HMKTest fulfills the intelligence requirements, by helping the operator judge and perform calculations once the test is completed.

The HMKFlow 6393 device is available in two variants—HMKFlow 6393 PT1000 single software version intelligent and HMKFlow 6393 PT1001 double software version intelligent. The single software version includes Windows software, and the double software version includes CPU inset software, in addition to the Windows software.

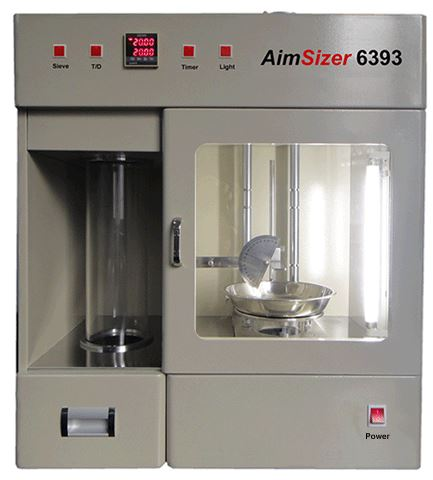

Image Credit: Dandong HMKTest Instrument Co. Ltd

HMKTest has designed and created the HMKFlow 6393 PT1000 intelligent single-software powder comprehensive characterization tester. It is an innovative apparatus for testing powder flowability, by integrating intelligent algorithm software with conventional cost-effective powder comprehensive characterization tester design.

HMKFlow 6393 PT1000 can perform measurement analyses such asCarr angle of repose, Carr angle of spatula, Carr angle of difference, Carr angle of fall, Carr compressibility, Carr loose bulk density, Carr uniformity, Carr packed bulk density, Carr dispersibility, Carr cohesion, and porosity, all in a single instrument.

Moreover, it is powered by intelligent analysis and judgment calculation software designed specifically by HMKTest. The software is compatible with mobile phone Android system as well as PC Windows system.

The software automatically executes intelligent analysis, calculation, judgment, storage, and printing upon just entering the relevant basic measurement values. It also simplifies the operation and ensures good repeatability. The software totally eliminates the challenges posed by inaccurate measurement results that arise while using conventional, low-cost manual judgment and manual calculation.

HMKFlow 6393 is extensively used in powder coatings, powder physical properties research, pharmaceutical, food, graphite, battery materials, non-ferrous metals, powder engineering design, non-metallic ore, and teaching.

Image Credit: Dandong HMKTest Instrument Co. Ltd

Image Credit: Dandong HMKTest Instrument Co. Ltd

Image Credit: Dandong HMKTest Instrument Co. Ltd

Image Credit: Dandong HMKTest Instrument Co. Ltd
