This extremely durable and waterproof digital detector array (DDA) has been specifically designed for optimal portability andindustrial radiography's demanding conditions.
High Resolution
76 μm pixel pitch.
Dust-tight and waterproof
Protection level IP67.
Lightweight and ruggedized
3.2 kg/1 m drop test pass.
Important Features

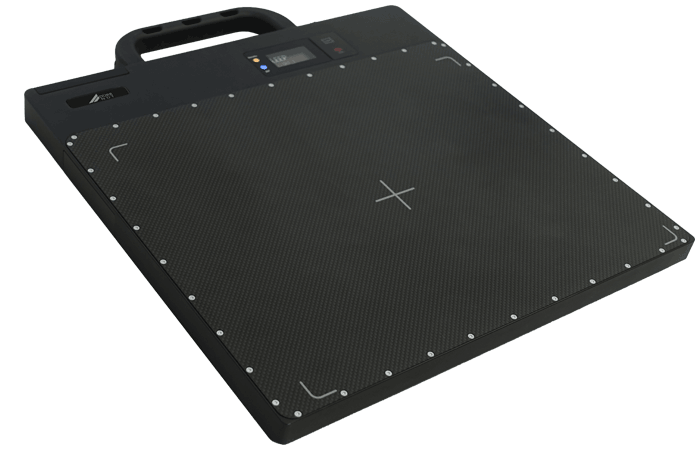

Image Credit: DÜRR NDT GmbH & Co. KG
Fit for gamma and X-Ray sources.
Incredibly sturdy construction with a handle designed with portability in mind.
Dust-tight and waterproof (IP67).
High-resolution.
Display with Wi-Fi, LAN, battery, and sensor status indicators.
Built-in wireless access point.
Connector for Gigabit Ethernet and power.
Passes 1 meter drop test,
Comes with 2 battery packs.
Technical Data
Source: DÜRR NDT GmbH & Co. KG
DRC 2430 NDT | |
---|---|
Active area | 233 mm x 291 mm (9.2" x 11.5") |
Dimensions(H x W x D) | 368 mm x 327 mm x 21.5 mm / 330 mm x 327 mm x 21.5 mm (without handle) |
Weight | 3.2 kg (7 lbs) |
Number of pixels | 3072 x 3840 |
Exposure time | 500 ms to 180 s |
Image transfer time(wired/wireless) | 2/4 s |
Max. energy | 250 kV (for long life in typical applications), Isotopes (higher energies possible) |
Pixel pitch | 76 μm |
Scintillator | GOS |
ADC | 16-bit |
Interface | Gigabit Ethernet, WLAN: 2.4 GHz (802.11abgn) / 5 GHz (802.11n, 2x2 MIMO) |
Battery | Lithium-ion (7.4 V, 29.6 Wh) |
Operating conditions | 0 to 45 °C (32 to 113 °F), 30 to 85 % humidity |
Protection level | IP67 (dust-tight and waterproof) |
Housing | Aluminum frame, carbon-fiber entrance window (150 kg area load) |
Software | DÜRR NDT D-Tect 9.9 or higher |
Scope of supply | Detector, 2 battery packs, battery charger, Ethernet data cable |
Sample Images
Weld seam, 9 mm titanium plate, X-ray (ISO 17636-2 Class B compliant). Image Credit: DÜRR NDT GmbH & Co. KG
Profile image, DN 150 x 9 mm, Iridium-192. Image Credit: DÜRR NDT GmbH & Co. KG
Weld seam, 10 mm steel plate, X-ray (ISO 17636-2 Class B compliant). Image Credit: DÜRR NDT GmbH & Co. KG
Welded pipe, stainless steel, t = 3.6 mm, double wall ellipse technique, X-ray. Image Credit: DÜRR NDT GmbH & Co. KG
