Plasma De-Contaminators Alternate Gas Configuration: Evactron® E50

The E50 De-Contaminators from Evactron are high performance, compact yet streamlined plasma cleaners designed for ion and electron beam instruments, like FIBs, TEMsand SEMs.

The Evactron E50 Plasma Radical Source (PRS) has a compact design that makes it a multipurpose solution for load locks, SEM/FIB chambers, or sample preparation chambers. It provides rapid, effective, and robust cleaning across a broad range of pressures, allowing artifact-free, high quality pictures and improved efficiency of sample analysis.

There are two configurations in the Evactron E50 alternate gas PRS—the precision filter (0.5-μm pore size) model for general laboratory conditions and an ultra-high purity filter (3-nm pore size) model to fulfill the rigorous needs of the semiconductor sector SEMI F38-0699 directive.

The in-line filters avoid the entry of particulates, produced from gas feedlines, into the plasma stream. Alternative gases, which have been verified, include CDA, O₂, Ar/O₂, Ar/H₂, N_2,and H₂/N₂. For safety reasons, the use of 100% H₂ is not suggested.

E50 Alternate Gas System Features

Energy-efficient radiofrequency hollow cathode plasma (RFHC)

Dual-action cleaning with UV and plasma afterglow

RF power—75 W peak, up to 50 W continuous

Wired touchpad programming or Bluetooth Android tablet

Programmable power, recipes, number of cycles, and cleaning time

High-vacuum 'pop'ignition

Compatible with TMP and advanced venting is not required

External interlock connection (optional)

A broad range of pressure operation—0.3 Pa/2 mTorr to 80 Pa/600 mTorr

Does not damage sensitive components—no sputter etch

Gases for plasma includeCDA, O2, Ar/O2, Ar/H2, N2,and H2/N2

Enables rapid cleaning that is more than 100 times faster than the previous generation Evactron models

PRS can be set up on the load lock or the SEM chamber

Match or gas flow changes are not required for plasma ignition

Push-button cleaning operation

Complies with RoHS, NRTL, TUV, CE, and SEMI standards

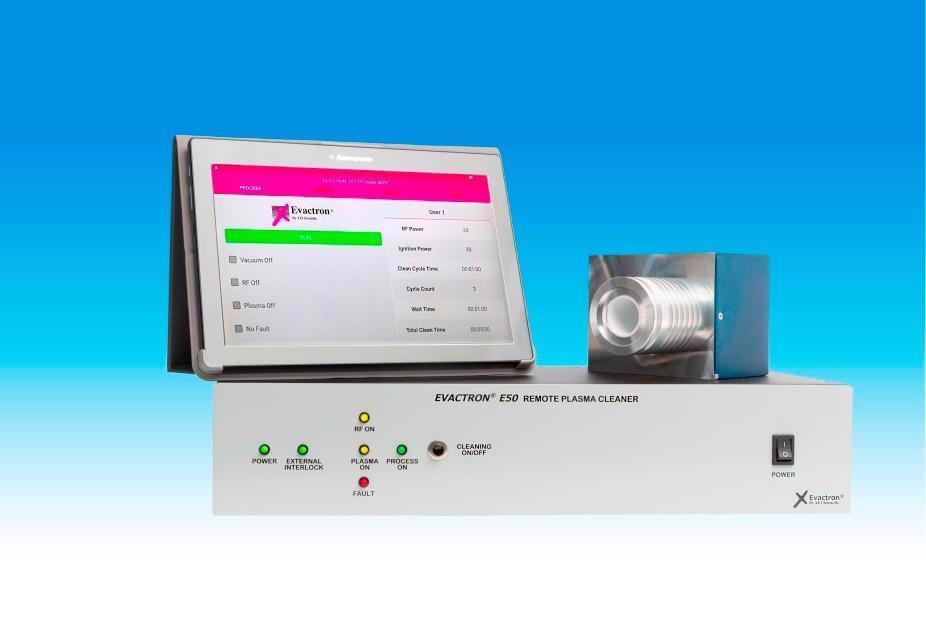

Image Credit: Evactron E50 (XEI Scientific)

Equipped with wireless tablet programming, the Evactron E50Plasma De-Contaminator was developed to eliminate hydrocarbon contamination from high vacuum chambers, like FIBs and SEMs. The compact design of the Evactron E50 fits a majority of the FIB and SEM models and load-locks. The E50 uses air and alternate gas plasma with UV afterglow to quickly decrease hydrocarbon contamination.

Specifications of Evactron E50 Alternate Gas System

Hardware interlock

Desktop controller equipped with push-button operation

Bluetooth communication package and Android tablet

Offers 100–240 VAC 50/60 Hz input

RF power—35 to 75 W at 13.56 MHz RFHC

Chassis dimensions—width × height × depth: 17.2″ × 3.5″ × 8.6″ (44 × 8.9 × 22 cm)

RoHS, NRTL, TUV, CE, and SEMIcompliant

E50 E-TC Alternate GasSystem

Image Credit: Evactron E50 E-TC (XEI Scientific)

The Evactron E50 E-TC Plasma De-Contaminator was specifically developed for facilities where a wired touchpad interface for programming is required. The touchpad (134 × 112 × 69 mm) is linked to the controller through an RS-232 cable. The Evactron E50 E-TC shares the features of the Evactron E50, usingair and alternate gas plasma with UV afterglow to decrease hydrocarbon contamination and thus provides rapid results.

Specifications of Evactron E50 E-TC System

The tethered touchpad communication package

Desktop controller with push-button operation

Hardware interlock

Offers 100–240 VAC 50/60 Hz input

RF power—35 to 75 W at 13.56 MHz RFHC

Chassis dimensions—width × height × depth: 17.2″ × 3.5″ × 8.6″ (44 × 8.9 × 22 cm)

RoHS,NRTL, TUV, CE, and SEMIcompliant

Plasma chemical etch plus UV active desorption

External hollow cathode plasma radical source

No sputter etch damage or debris

Easy to use sample and chamber cleaning

Plasma strikes at high vacuum, no venting required

Image Credit: Evactron (XEI Scientific)

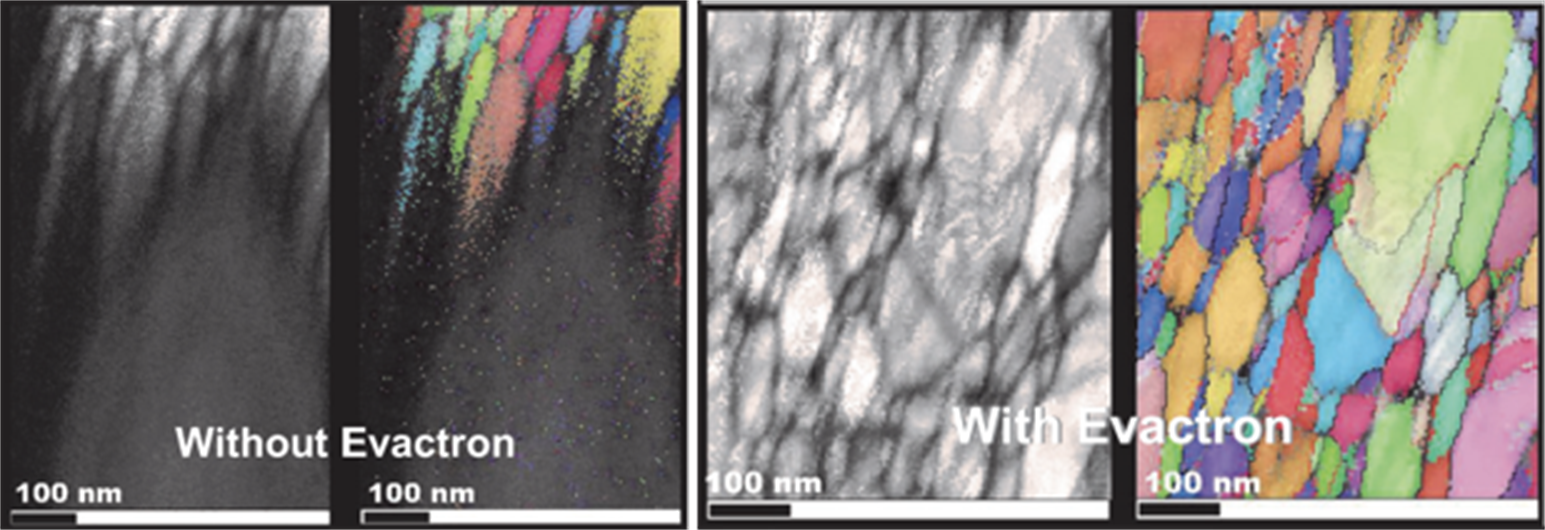

Plasma cleaning of the sample prior to TKD experiments affords many advantages. The improvement in pattern quality and enhanced measurement efficiency is needed for extended experiments, which can include fast and multiple scans at the same sample position (e.g., for repeated in-situ heating or straining experiments). The advantage of plasma cleaning is recommended for all high resolution TKD experiments. Plasma cleaning the sample inside the microscope chamber is recommended since the chamber, detectors and the holder are cleaned simultaneously.
