Universal shape finderQICPICoffers particle characterization ranging from below 1 µm to 34,000 µm. The modular particle size and shape analyzer developed the full power of dynamic image range analysis. High-speed image analysis using a pulsed light source with illumination times of less than 1 nanosecond cause the particles to be optically frozen while a high-resolution, high-speed camera images the razor-sharp particle projections with a resolution of up to 4 MP and frequency of up to 500 frames per second.

QICPIC’s powerful algorithms evaluate millions of particles in shortest time to guarantee superior statistically relevant results. Measures for length, width, equivalent circumference and diameter of a circle describe the size of a particle. Sphericity, aspect ratio and convexity provide information about the particle shape. Fibres can also be properly evaluated with length, diameter, straightness and elongation. All parameters may either be presented as distribution for the whole sample or individually for each single particle. A particle gallery with numerous selection and filter options supports the generation of specific and meaningful results. With the recorded particle video stored in the data-base the complete measurement can be viewed subsequently. QICPIC has an array of applications in industry and research, in pharmaceutical and chemical industry, food and beverage technology or soil science to name a few.

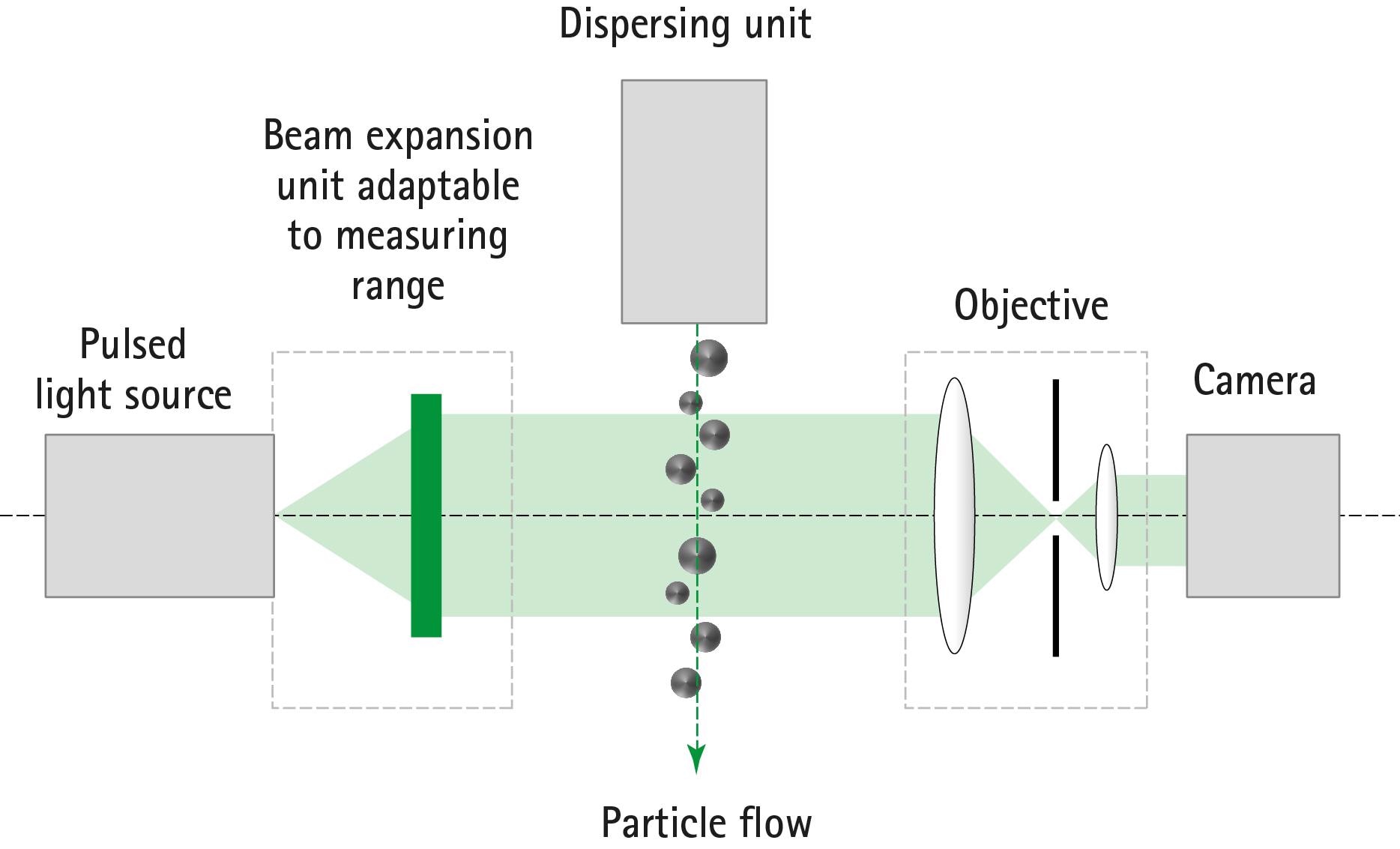

Optical Setup of QICPIC

Measuring ranges with maximum resolution

With a range of up to 7 precision lenses the overall particle measuring range from below 1 µm to 34 mm is covered. The wide dynamic measuring range of each optical module (1:2,000) the particle size and shape characterization of even wide distributed disperse products. Different levels of image capturing performance are realized with selected high speed and high-resolution CMOS cameras and matching interfaces. As the images of every single particle are assessed individually the quality of singling out particles is of prime importance.

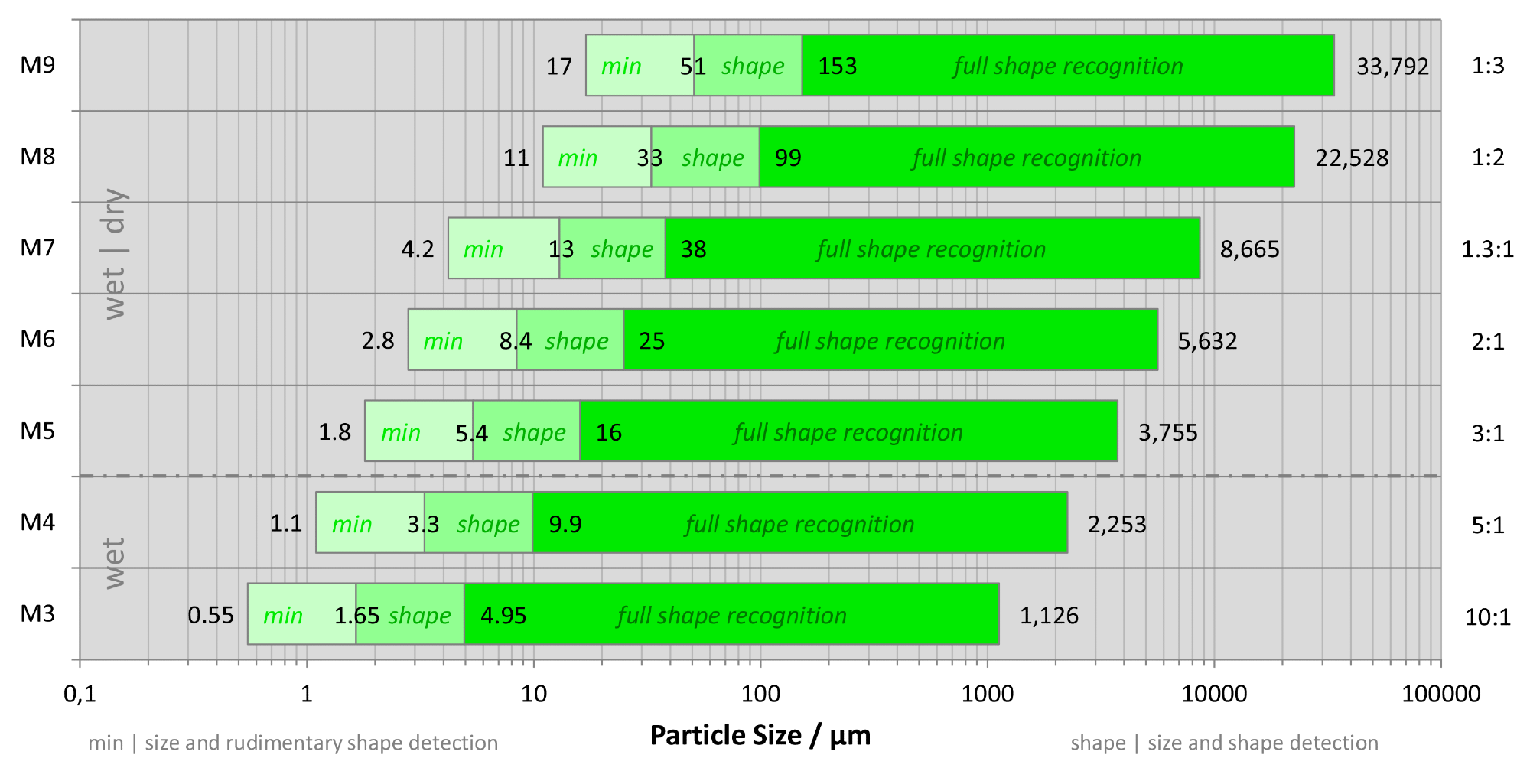

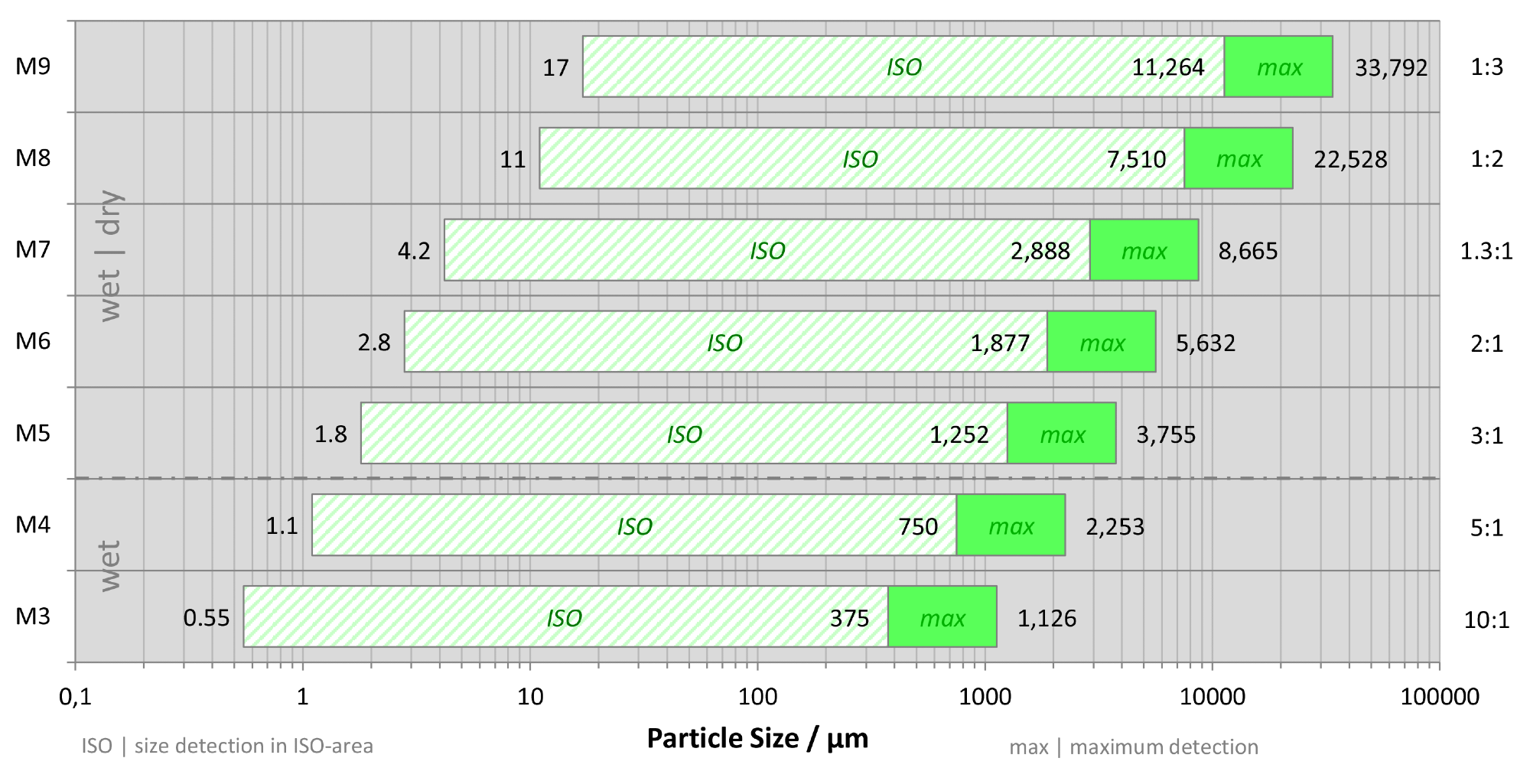

QICPIC | Measuring ranges M3 to M9 from 0.55 µm to 34,000 µm with maximum resolution

Feature highlights

Reliable and fast determination of particle size and particle shape as well as fiber characterization

Wide measuring range from < 1 µm to 34 mm

Fully compliant with ISO 13322-1/2 for image analyses standards

Flexible adaptation to a wide range of applications by modular system design with a great selection of dispersing and dosing units for dry and wet applications

Powerful evaluation modes | Meaningful results

High resolution size and shape distributions, adaptable output

High confidence level by fastest image acquisition allowing for a high number of particles

QICPIC-L Series

The high-speed and high-resolution CMOS cameras use the latest data transfer and processing technologies. The particle analyzerQICPICoffers two levels of performance:

Modular system design for product-specific characterisation

Applying dosing and dispersing units of modular design for dry and wet products ­the particle sizer QICPIC is flexible to adapt to powders, granules, fibres, suspensions and emulsions. This ensures a product-specific characterization of particle size and particle shape parameters matching the true nature of the application.

Dry applications

» RODOS | Injection disperser for finest, even cohesive dry powders | 1.8 µm to 4,000 µm» GRADIS | GRADIS | Gravity disperser for coarser, even fragile dry particulate systems | 1.8 µm bis 18,000 µm» VIBRI | Vibratory feeder for precise dosing and feeding of dry particulate systems (in combination with RODOS, GRADIS or OASIS)» ASPIROS | Micro dosing system for feeding of small amounts of precious or toxic substances in encapsulated sample vials (in combination with RODOS or OASIS) | 1.8 µm to 500 µm» FIBROS | Pre-disperser for gentle separation and feeding of dry, even curly fibres (in combination with GRADIS) | Fibre thickness 1.8 µm to 5,000 µm, fibre length 500 µm to 30,000 µm

Wet applications

SUCELL/L | Closed-loop flow-through cell for suspensions and emulsions |< 1 µm to 2,000 µm | (50) 500 ml cell

FLOWCELL | Open-loop cell for high volume with mid-size or coarse particles | 10 mm cell: 11 µm to 5,000 µm or 20 mm cell: 17 µm to 10,000 µm

LIXELL + LIQXI | Dispersing and dosing combination for suspensions and emulsions | < 1 µm to 500 µm

MULTISAMPLER | Sample handling system for automated feeding of wet samples in 39 ml vials in batch operation (in combination with SUCELL/L) | 70 vials per rack

Specialities

OASIS | Combined dry and wet disperser consisting of RODOS & SUCELL/L | < 1 µm to 4,000 µm

LIQIBACK | Reprocessing unit for recycling of dispersion liquids (in combination with SUCELL/L or OASIS) | 0.45 µm and 1 µm

Universal Shapefinder for Particle Characterization – QICPIC

QICPIC with RODOS/L and VIBRI/L QICPIC with LIXELL and LIQXI QICPIC with GRADIS and VIBRI/L QICPIC with SUCELL/L
