Next-Gen FL5000 MSIR Flame Detector

上海仪舶实验室自动化 25-01-24 12:41:56

Next-Gen FL5000 MSIR Flame Detector

The MSA General Monitors® FL5000 is a cutting-edge multi-spectrum infrared (MSIR) flame detector designed to offer exceptional false alarm resistance, even over extended distances. It uses a multi-spectral optical IR sensing array combined with advanced Artificial Neural Networks (ANN) to effectively distinguish real flames from most false alarm triggers.

Highlights

Next-Generation Flame Detection

Features

False Alarm Discrimination.Improved false signal suppression using advanced neural network technology.

Enhanced Performance.Detects fires up to 310 ft (95 m) away.

Third-Party Verified. 22 FM-test fuel sourcesfor unbiased performance verification.

Bluetooth Technology.Configuration and diagnostics using the exclusive Flame Connect app.

Backwards Compatibility.Easily upgrade FL4000H/FlameGard 5 MSIR detectors with the upgrade kit.

Optical Path Integrity Self-Check.Continuous Optical Path Monitoring (COPM) performs a self-check every two minutes to ensure the optical path is clear and the electronic circuitry is functional.

Test Anytime, Anywhere.Easily test with the exclusive TL105 Test Lamp that allows the FL5000 MSIR Flame Detector to be safely tested under real fire conditions with a simulated flicker of a flame.

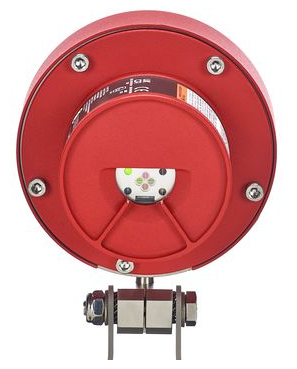

Next-Gen FL5000 MSIR Flame Detector

Image Credit: MSA - The Safety Company

Specifications

Source: MSA Safety

Applications Compressor Stations, Drilling Rigs, Fuel Loading
Distance 310 ft (95 m) for n-Heptane fire
Heated Optics Yes
Housing 316 Stainless Steel, Red Powder Coated
Markets Oil & Gas, Utilities, General Industry
Product Diameter 5.44" (138 mm) - base, 3.50" (89 mm) - optical housing
Product Height 4.3" (109 mm)
Product Weight 7.6 lbs (3.45 kg) - without mounting bracket
Response Time 10 sec
Spectral Range 2-5 microns (IR)
Warranty 5 Years

Options

Accessories: Mounting bracket, test lamp, rain guard, air curtain, cleaning solution, upgrade kit
