Neutron Imaging Detector from Photonic Science

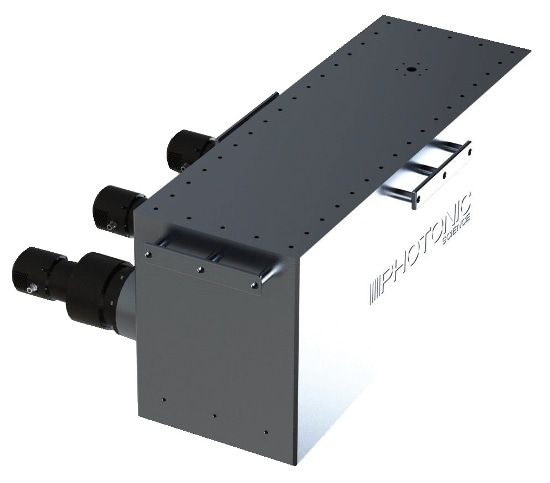

The neutron imaging detector system available from Photonic Science helps in recording a unique digital backscattered neutron Laue diffraction pattern. This is achieved by a center hole included in the system. The center hole permits the neutron beam to penetrate through the camera system before reaching the sample.

This set up enables the neutron scintillator to be located very close to the sample, allowing a large solid angle of diffracted beams to be imaged.

High-resolution/high-sensitivity is realized because of the use of a custom scintillator as well as an intensified cooled CCD camera readout allowing high electro-optical gain down to single neutron sensitivity.

Prolonged exposures can be used for exposing weak diffracting patterns.

By feeding a TTL triggering pulse to a BNC connector, synchronization with pulsed neutron sources reaching 100 ns at a repetition rate of 50 Hz can be achieved. A device server driver allows remote, real-time acquisition.

The Neutron imaging detector system utilizes a Lithium-6 screen manufactured by Photonic Science’s sister company, Scintacor.

The range of cooled neutron detectors offered by Photonic Science uses LiF:ZnS:Ag scintillator screens that are read out by very low-noise, high-sensitivity sCMOS or ICCD sensors.

Imaging applications use 10 cm x 10 cm up to 43 cm x 43 cm active-area high-resolution scintillators integrated with a low noise, fast read-out sCMOS camera of a resolution of 4096 x 4096.

Diffraction and Small-Angle Scattering applications use 26 cm x 20 cm active-area, high-efficiency scintillators integrated with an ultra-low noise ICCD camera of a resolution of 1306 x 1040. This enables a single quantum detection capability.

Larger detection areas can be acquired by tiling many cameras together. A version for faster neutrons is available for research reactor facilities as well as laboratory sealed sources.

Key Features

Multiplexed acquisition from tiled arrays

Genicam compliance

Acquisition of 16-bit digitized image in real time

Very high dynamic range of up to 20,000:1

Readout noise is equivalent to a single neutron

Applications

Protein crystallography

Neutron tomography/radiography

Small-angle neutron scattering

Neutron diffraction

Neutron reflectometry

Image Credit: Photonic Science

Specifications for PSEL ICCD and sCMOS Neutron Detectors

Table 1. Source: Photonic Science

Lithium-6 Based Screens from Photonic Science’s Sister Company Scintacor

Table 2. Source: Photonic Science
