Monitoring Fluids and Solid Materials with the SonAire® M3 150 kHz

MassaSonic^® SonAire^® Series M3 and M3is Sensors from Massa are battery-operated wireless level sensors that intercommunicate using ZigBee RF Modules. The M3is versions are intrinsically safe rated for zone Ø, CIDI and CID2 environments. These sensors have detection ranges between 4" (100 mm) and 35' (10.7 m).

The sensors use modern ultrasonic technology to provide precision non-contact distance measurement for liquid level solid stockpiles or hazard zones and remote locations. Compared with other systems, the M3 sensors do extremely well due to their affordability, effortless operation, and ability to be installed and calibrated without any need for a target.

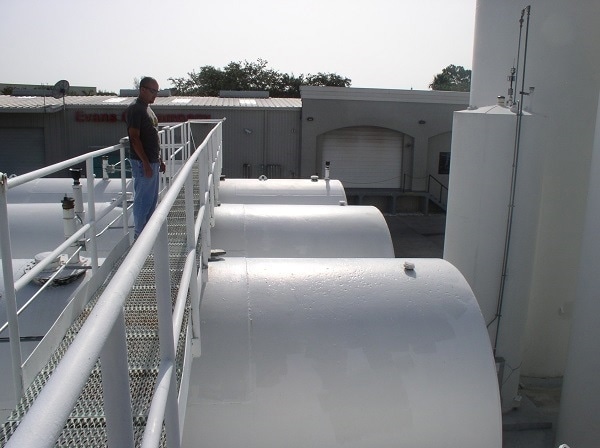

The sensors pass on narrow beam sound pulses. It then reports the distance to the target and processes return echoes. The sensor housing material is Kynar (PVDF), which is used to provide excellent chemical resistance in highly rough industrial surroundings. The short range version is suitable for totes, small tanks, horizontal tanks, and tallow pond monitoring.

Click Here to Learn More

The RoHS compliant SonAire Sensors^® is used to measure and store data such as temperature, battery voltage, range, and several other parameters at user-determined time intervals. The sensor is commissioned onto the ZigBee network using an internal pushbutton, and the operating mode can be identified using an LED.

The package is rated for both high pressure and immersion washing in compliance with IP67. Widely used lithium AA type batteries are used, which are easy to replace. The typical battery life is four years.

All sensors in the SonAire^® Series are provided in two variants. Standard SonAire M3 Sensors are custom designed, making them suitable for operation in typical industrial applications. Intrinsically safe SonAire M3is Sensors can also be employed in unsafe environments. The SonAire M3is Sensors are certified by Factory Mutual as meeting the demands for Class 1 Div 1 (C1D1), All Groups, which is the highest rating.

Key Features

The key features of the SonAire^® M3 150 kHz Sensor are as follows:

Cost efficient

Narrow beam

Wireless, 10 sensors/gateway

Chemically resistant PVDF construction

Low power

Integrated temperature/sound speed compensation

Easily replaceable long-life batteries

Enable set-up where power lines are not present

Applications

The key applications of the SonAire^® M3 150 kHz Sensor are as follows:

Flood zone monitoring and waste basins

Outdoor stockpiles

Oil patch, mine and chemical operations

Fast, remote set-up sites

Danger zones

Solid and liquid level monitoring

Totes, tanks, and drums

Specifications of SonAire^® M3 150 kHz Sensors

The key specifications of the SonAire^® M3 150 kHz Sensors are as follows:
