Laser Vibrometer: VibroGo

The VibroGo^® from Polytec is a battery-powered vibrometer, truly portable and suitable for field studies with faster and easier condition monitoring of machines and facilities on the run. Noise and vibrations are detected by the portable sensors and the values are directly displayed in the time and frequency domain.

The system also enables on-board analysis in the field, whilst enveloping a broad frequency, ranging up to 320 kHz. The exceptional resolution accompanied by high linearity across the entire frequency range offers a simple and accurate analysis tool.

The VibroGo^® can be employed for an enhanced understanding of the dynamics and acoustics in nature and technology for product development, researchand quality assurance.

Highlights

Touch screen and autofocus enables simple operation

Facilitates on-board storage and faster analysis of measurement data

Accurate analysis of acoustics and dynamics in the field or laboratory

The system is lightweight, versatileand outdoor-proof (IP64), and has an optional mobile power supply, standing up to 3 hours

Enables measuring of DC up to 320 kHz and velocities up to 6 m/second, from a safe distance of up to 30 m

Facilitates wireless measurement and remote control options from any place

Acceleration and displacement are added as additional output signals

Executes analog and digital signal outputs

On-Board Data Recording and Monitoring

Connectivity may become challenging at any place and time. The system enables measurement on the run and records vibration measurement data for several hours, simultaneously checking and verifying the signals and finetuning the settings instantly.

The completely self-sufficient operation ensures the delivery of valuable data for further processing and sharing

Integrated data recorder and monitoring of data on-board and via any web browser. Image Credit: Polytec

Measuring Acoustics and Dynamics on the Go

The VibroGo is an ideal system with portability, multi-purposeand non-contact vibration sensor characteristics. The lightweight tripod can be used for quick setup. Mobile power supply facilitates independent operation for 3 hours.

The system enables a safe measurement of machinery vibration at difficult-to-access or hazardous regions due to high voltage, temperatureor radiation from a sufficient distance. Ethernet and wireless connectivity options enable measurement and remote control from anywhere, for comfortable sensor configuration including data transfer.

VibroGo laser vibration sensor for stand-off condition monitoring. Image Credit: Polytec

VibroGo with on-board recording and monitoring of measurement data. Image Credit: Polytec

Field measurements like entomology for pest control with VibroGo. Image Credit: Polytec

Condition monitoring in industrial plants and on the machine with portable laser vibration sensor VibroGo. Image Credit: Polytec

Outdoor, battery-powered measurement for biological research and entomology. Image Credit: Polytec

Remote inspection in hazardous areas from a safe distance. Image Credit: Polytec

Truly Portable Laser Vibration Measurement — VibroGo^®

On the go with VibroGo® – Truly portable vibration measurementPlay

Video Credit: Polytec

Related Areas of Applications

Biology and medicine

Industrial quality assurance

Electronics, semiconductorsand solar

Accessories and Components

Compliance with Standards

Source: Polytec

.	.
Laser safety	IEC/EN 60825-1
Electrical safety	IEC/EN 61010-1
EMC	IEC/EN 61326-1. Emission: Limit class AIEC/EN 61000-3-2 and 61000-3-3.Immunity: IEC/EN 61000-4-2 to 61000-4-6 and IEC/EN 61000-4-11

Transportation Case

The VIB-A-CAS16 is a robust transportation case for VibroGo, which is included with the sensor.

Image Credit: Polytec

Optical Accessories

A-MIR-xxxx Mirror Sets

The mirror sets from Polytec comprise different sizes of mirrors to support the setup of the measurement.

Image Credit: Polytec

OFV-036-M Pan/Tilt Adjustable Mirror

This component has a mirror diameter of 25 mm.

Image Credit: Polytec

Tripods, Test Stands, Positioning Stages

VIB-A-P01 Tripod Mountable Tilt Stage

Image Credit: Polytec

VIB-A-P02 Tripod Mountable Traverse/Tilt Stage

Image Credit: Polytec

VIB-A-P06 Tripod Mountable X/Y/Tilt Stage

Image Credit: Polytec

VIB-A-P07 Pan/Tilt Adjustable Mounting Plate

This piece of equipment is designed for installation in industrial production lines, enabling fine adjustment of the tilt and rotation angles by ±1.3°.

Image Credit: Polytec

VIB-A-T02 Tripod with Pan/Tilt Head

Image Credit: Polytec

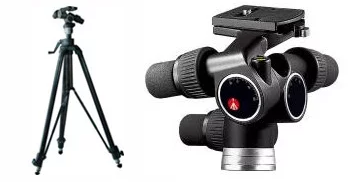

VIB-A-T05 Tripod with Geared Pan/Tilt Head

Image Credit: Polytec

VIB-A-T08 Tripod

Image Credit: Polytec

Software, Data Acquisition

Data Acquisition and Analysis Software

The system includes an easy-to-use vibration analysis software loaded with 2-channel USB data acquisition ranging up to 20 kHz.

Image Credit: Polytec

Cables

A-CBL-0001 Ethernet Cable RJ 45/M12 5 m

Ethernet cable provided for the transfer of digital data between VibroGo and a computer (requires VibSoft 5.5 or newer).

Image Credit: Polytec

A-CBL-0002 Ethernet Cable RJ 45/M12 10 m

An Ethernet cable to facilitate digital data transfer between a computer and VibroGo (requires VibSoft 5.5 or newer).

Image Credit: Polytec

VGO-C-200-C04 Trigger Cable 1.5 m

This cable is used for connection with the Trigger input (CON 4) and is included in the scope of delivery of VibroGo.

Image Credit: Polytec

Power Supply

A-PPS-01 Plug-in Power Supply

A plug-in power supply with 12 V AC/DC capability is included in the scope of delivery of VibroGo.

Image Credit: Polytec

A-MPS-001 Mobile Power Supply

The system comes with a high-performance lightweight rechargeable battery (lithium polymer, A-MPS-PB1)to facilitate mobile power supply.

Image Credit: Polytec

Wireless Connectivity

A-WIC-001 WLAN-Stick CE

CE-certified WLAN stick enables wireless access. This component is for use in all countries in the EU and Switzerland, South Africa, India, Qatarand Oman.

Image Credit: Polytec

A-WIC-002 WLAN-Stick FCC

FCC-certified WLAN stick facilitates wireless access for countries like the United States, Canadaand the Republic of Taiwan.

Image Credit: Polytec

Miscellaneous

A-LAG-0633 Laser Adjustment Goggle

This component enables accurate pointing of the laser on the device undertest.

Image Credit: Polytec

A-RET-xxxx Retro-Reflective Supplies

This component enables the selection of tape, sprays, sheetsand micro glass beads for the enhancement of signal-to-noise ratio during the measurement of uncooperative surfaces.

Image Credit: Polytec
