Laboratory Raman Fiber Spectrometer: i-Raman EX

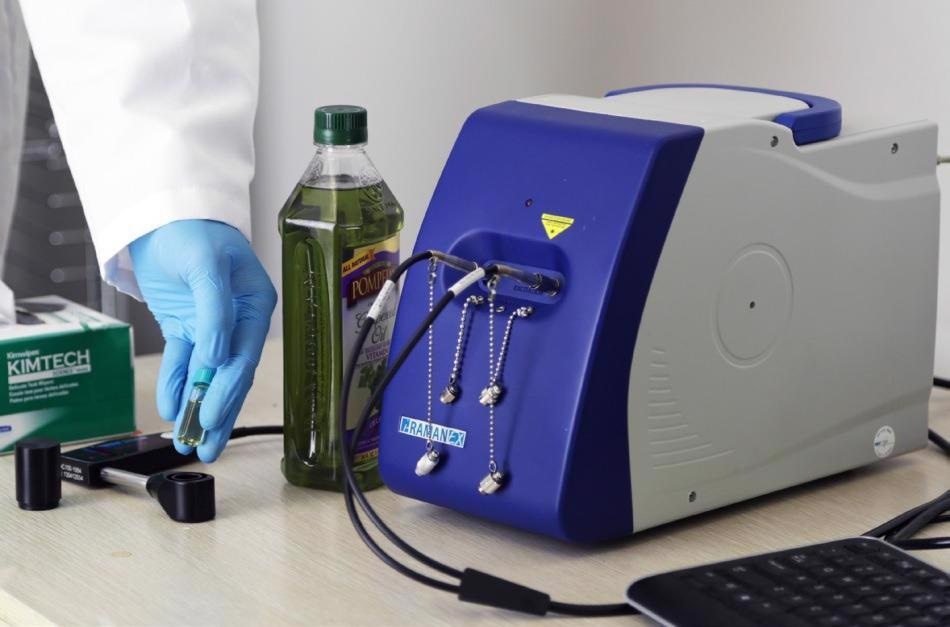

The i-Raman^® EX spectrometer is part of B&W Tek’s award-winning range of i-Raman laboratoryRaman systems and features a 1064-nm version of the company’s patented CleanLaze^® excitation laser.

The laboratoryRaman spectrometer uses a high-sensitivity InGaAs array detector with a high dynamic range and deep TE coolingand also features a high-throughput spectrograph design, thus delivering an excellent signal-to-noise ratio without causing autofluorescence. Thanks to these features, users can quantify an array of natural products, colored samplesand biological samples, like cell cultures.

The i-Raman EX spectrometer offers a spectral coverage range between 100 and 2500 cm⁻¹, enabling users to quantify the whole fingerprint area. The spectrometer has a lightweight design, a small footprintand consumes only minimal power, offering research-grade Raman capabilities anywhere.

The i-Raman EX spectrometer is supplied with an XYZ-positioning-stage probe holder and a fiber-optic probe. It can be utilized with many different sampling accessories to enable the measurements of different kinds of samples. The spectrometer can also be used with B&W Tek’s proprietary BWIQ^® multivariate analysis software or with BWID^® identification software.

With the i-Raman EX spectrometer, users can easily achieve a high-precision quantitative and qualitative Raman solution without fluorescence.

Applications

Bioscience and biomedical diagnostics

Forensic analysis, such as narcotics, paints and fibers

Pharmaceutical material analysis

Chemical warfare agent detection

Polymer and chemical analysis

Petroleum analysis

Explosives detection

Food and agriculture

Environmental science

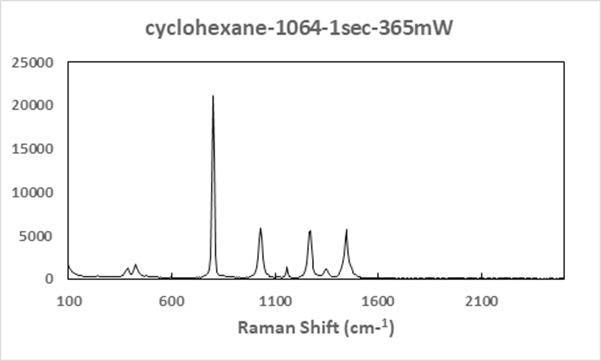

Cyclohexane spectrum with 1-second integration time, showing the high throughput and excellent signal-to-noise ratio. Image Credit: B&W Tek

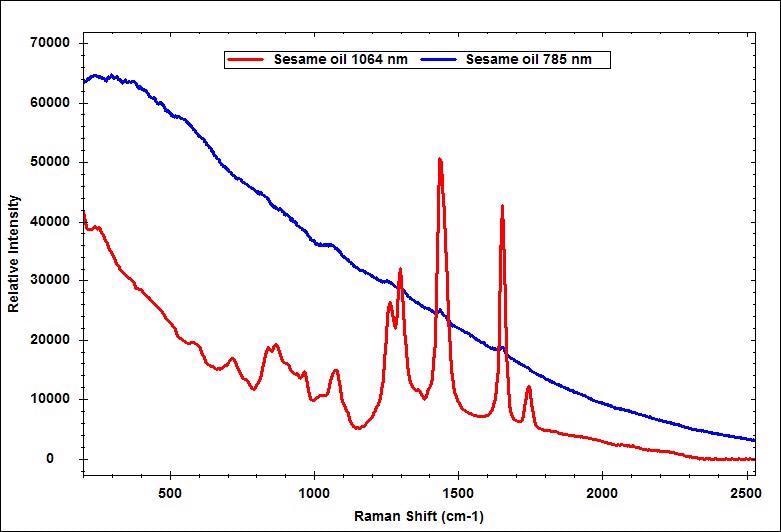

Comparison of the measured spectra of sesame oil with 785 nm and 1064 nm Raman system. Image Credit: B&W Tek

Comprehensive

B&W Tek offers a complete package of sampling accessories for quantifying liquid and solid samples, providing users the ultimate utility right out of the box.

Quantitative

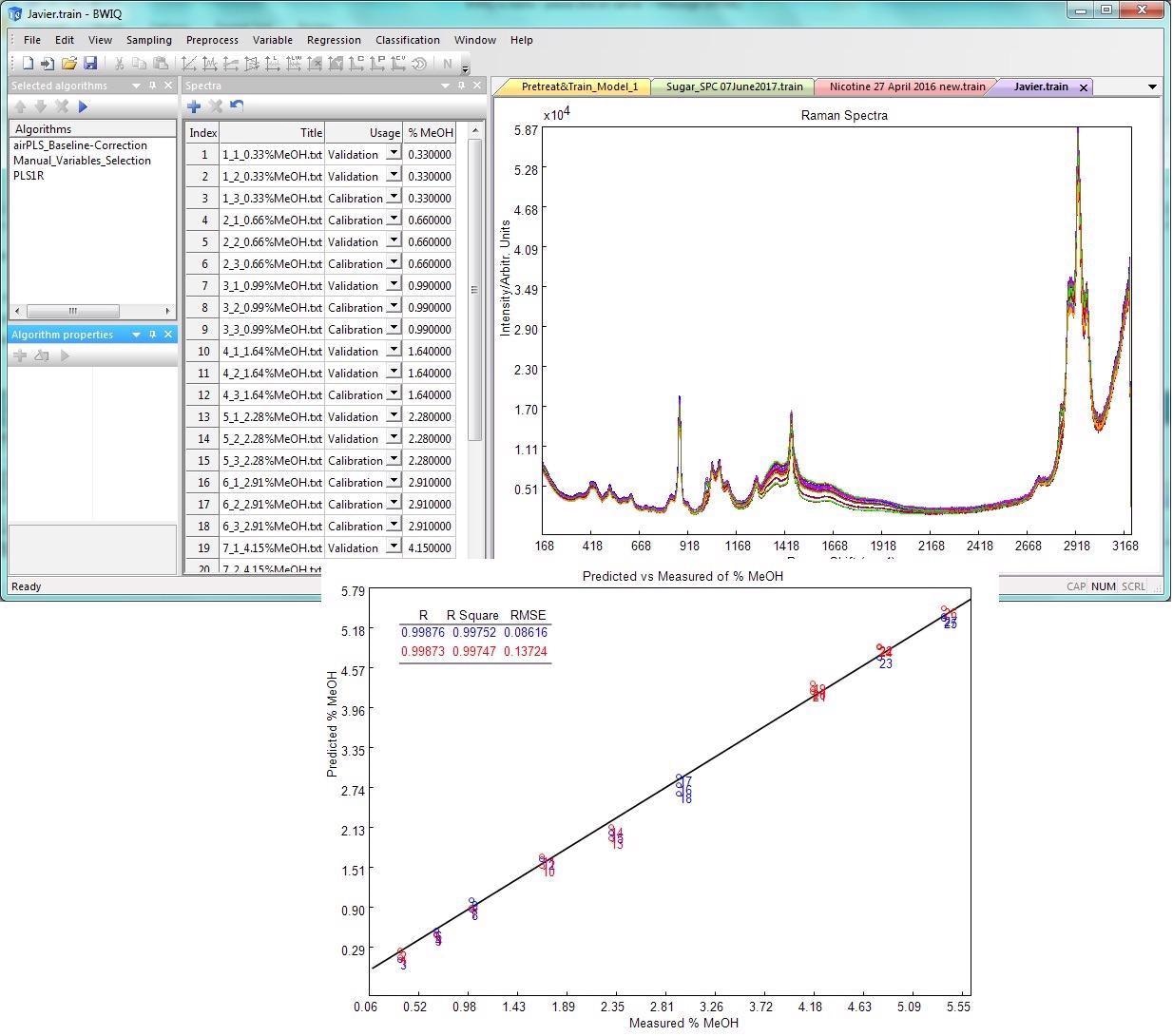

The advanced BWIQ^® quantitative Raman analysis software package from B&W Tek has intelligent algorithms, an intuitive user interface, and efficient matrix calculation power, rendering it easy to use by both novice and expert users.

Image Credit: B&W Tek

Software

Software packages from B&W Tek provide solutions to meet the needs of Raman applications. Simple data management, robust calculationsand easy-to-follow, user-friendly workflows are now available at the tips of users’ fingers.

B&W Tek includes the general spectroscopic software, called BWSpec^®with each systemfor instrument control and data acquisition, such as real-time peak analysis and trending. The BWID^® software is optional and has been optimized for quick detection and verification of materials with spectral libraries.

For Raman applications in controlled settings, BWID^®-Pharma software supports FDA 21 CFR Part 11 Compliance requirements. The software portfolio from B&W Tek also includes a multivariate software package—BWIQ^®—to enable a quantitative and qualitative analysis of spectral data.

The BWIQ^® software includes chemometric techniques, like Principal Component Analysis (PCA), Partial Least Squares Regression (PLS)and Support Vector Machine (SVM) regression, extensive graphics for model interpretationand a complete suite of preprocessing tools.

Image Credit: B&W Tek

Specifications: BWS485II

Source: B&W Tek

*Resolution measured using atomic emission lines. Raman resolution per ASTM E2529-06 (Standard guide for testing the resolution of a Raman spectrometer) is available on request.

Features

Patented CleanLaze^® technology for laser stabilization

High-throughput spectrograph for faster signal collection

1064-nm excitation to reduce fluorescence

Fiber-optic coupling for easy sampling

Included Accessories

Probe holder

Laser safety goggles

Fiber-optic Raman probe

Image Credit: B&W Tek

Optional Accessories

Microscope adaptor

Immersion Raman probe shaft

Cuvette holder

Enclosure for Raman sampling system

Raman flow cell

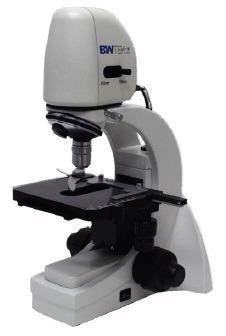

Video microscope

An array of long-working-distance lenses (up to 6 m) for stand-off measurement
