Integrable Metrology 3D Sensors - S wide
The S wide is developed to quantify huge areas in a single shot, ideal for applications where speed and shape measurement is considered the priority.
FOV (single shot) 34.7 × 29.1 mm
Acquisition time 1s
Optical resolution 9.35 µm
System noise 1 µm
Image Credit: Sensofar Metrology
Single Shot Areal Imaging
The S wide offers all the advantages of a digital microscope combined into a high-resolution measuring instrument. With just one shot, it obtains 35 × 29 mm of XY area and up to 40 mm of depth without any Z movement. The combination of proprietary Fringe Projection technology along with telecentric lenses yields an outstanding performance and 1 µm system noise.
Image Credit: Sensofar Metrology
Objective Lens
Table 1. Source: Sensofar Metrology
| Fringe Projection | |
|---|---|
| MAG | 0.243X |
| NA | 0.015 |
| WD (mm) | 80 |
| FOV1 (mm) | 34.7 x 29.1 |
| Spatial sampling2 (µm) | 14.2 |
| Optical resolution3 (µm) | 9.35 |
System Specifications
Table 2. Source: Sensofar Metrology
| . | . |
|---|---|
| Measuring principle | Fringe Projection (Gray code & Slit, Gray code & Phase Shift) |
| Observation types | Bi-telecentric lens with 0.243X magnification and 0.015 NA |
| Color camera | 5Mpx: 2448x2048 pixels (60 fps) |
| Total magnification (27" screen) | 11X |
| Display resolution | 0.001 µm |
| Max. Extended measuringarea | 300x300 mm with 10x12 stitched fields (Max. resolution 450 Mpx) |
| Vertical measuring range | 10 mm (up to 40 mm) |
| XY stage range | Manual: 150x100 mm; Motorized: 154x154 mm, 302x302 mm |
| LED light sources | Green (530 nm) and blue (460 nm) |
| Ring light illumination | White |
| User management rights | Administrator, advanced operator, operator |
| Advanced software analysis | Included: SensoVIEW; Optional: SensoPRO, SensoMAP, Geomagic® |
| Power | Line Voltage 100-240 V AC; frequency 50/60 Hz single phase |
| Software communication | DLL (C++ or C#, Windows 10® - 64 bits) - XML (any operating system) |
| Computer | Latest INTEL processor; 3840x2160 pixels resolution (4K) (27”) |
| Operating system | Microsoft Windows® 10, 64 bit |
| Environment | Temperature 10 ºC to 35 ºC; Humidity |
1 Maximum field of view with 3/2” camera. 2 Pixel size on the surface. 3 L&S: Line and Space, half of the diffraction limit according to the Rayleigh criterion. Values for blue LED.

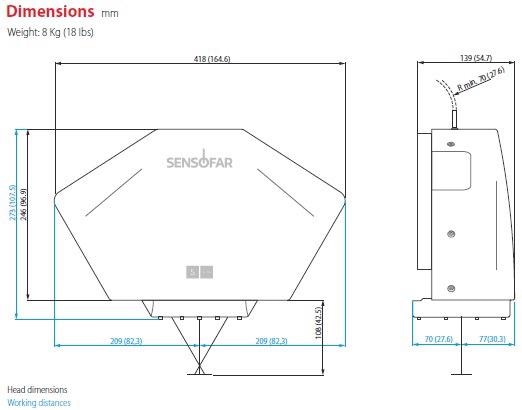

Dimensions
Image Credit: Sensofar Metrology
