InfraCal 2 Model TRANS-SP From Spectro Scientific

The InfraCal 2 TRANS-SP is ideal for measuring oil in water, total petroleum hydrocarbons (TPH) in soil, or fats, oils, and grease (FOG) in wastewater concentration levels. It utilizes traditional EPA methods 413.2 and 418.1, or ASTM method D7066-04, along with a range of solvents such as Freon-113, hydrocarbon-free grade of perchloroethylene, AK-225, S-316, or other spectroscopic infrared transparent solvents for extraction.

The extracted sample is deposited into a 10 mm quartz cuvette cell with a Teflon stopper, which retains light end volatile components for accurate measurement. The analyzer provides precise results down to 0.1 ppm.

The newest addition to the line of user-friendly analyzers, the InfraCal 2 TRANS-SP, has additional features like data storage and transfer, multiple calibrations, and password protection for instrument settings. It utilizes the same measurement technology as the original InfraCal Model CVH.

InfraCal 2 Oil in Water AnalyzerPlay

Video Credit:AMETEK Spectro Scientific

Specifications

MDL Soil: 1 ppm

MDL Water: 0.1 ppm

Solvent(s): Perchloroethylene, S-316, Freon-113

Method Complies: ASTM D7066, EPA 413.2, EPA 418.1

Method Compares: EPA 1664, ISO 9377-2

Highlights

The rugged dependability of InfraCal Analyzers is exemplified by the fact that some units, over a decade old, continue to operate reliably in the corrosive environment of offshore oil rigs. The analysis procedure takes less than 15 minutes and can be done by minimally trained personnel. They use field-proven infrared technology for measuring oil in water, oil content in drilling mud or drill cuttings, TPH (total petroleum hydrocarbons) in soil, and FOG (fats, oil, and grease) in wastewater.

Operating Principle

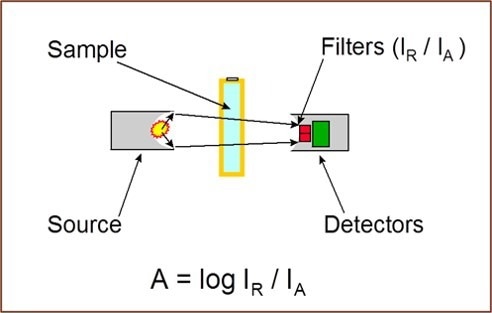

The InfraCal TOG/TPH Analyzer capitalizes on the principle that hydrocarbons, such as oil and grease, can be extracted from water or soil using the appropriate technique and solvent. At a particular wavelength, the extracted hydrocarbons absorb infrared energy, and the amount of energy absorbed is proportional to the solvent's oil and grease concentration. The analyzer can be calibrated to directly display readings in the desired units.

Image Credit: AMETEK Spectro Scientific

Specifications

Source: AMETEK Spectro Scientific
