Industrial Controlled Air Incinerator – Waste Management
The I8-1000 modelis Inciner8’s largest incinerator.
It is a controlled air incinerator, offering ideal combustion conditions for a variety of waste types. Its top-loading design offers liquid retention, making this incinerator optimal for incineration of a number of different waste streams.
Emission Data
Average emissions / EU standards on basic incinerators (with secondary chamber)
| Parameter | Limits (1/2 hour av) | Measured |
|---|---|---|
| Total dust | 30 mg/m3 | 12 mg/m3 |
| Sulfur dioxide | 200 mg/m3 | 2,4 mg/m3 |
| Nitrogen dioxide* | 400 mg/m3 | 60 mg/m3 |
| Carbon monoxide | 100 mg/m3 | 78,3 mg/m3 |
Typical General Waste Applications
Remote housing
Industrial waste < 8000 kg day
< 5000 people communities
Bigger camps
Universities
Additional Information
Options

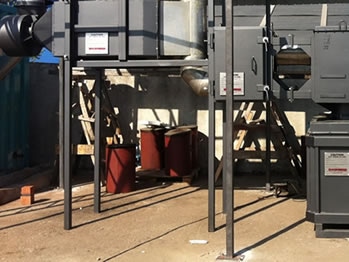

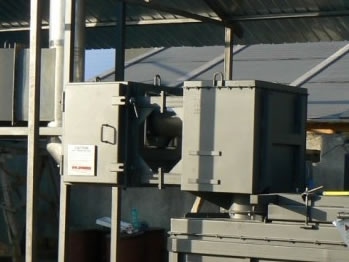

Platform mounted

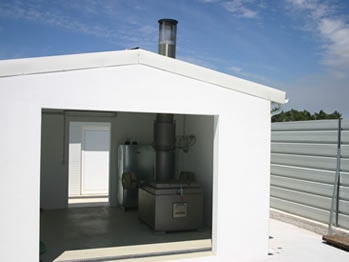

Shelter

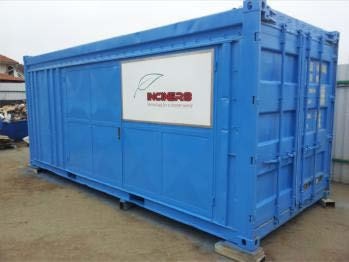

Containerized
Extras
Heat exchanger
Venturi scrubber
Pollution control systems
Technical Specifications
| Operational Specifications | |
|---|---|
| Combustion Chamber Volume (m3) | 8.7 m3 |
| Burn Rate* | up to 600 kg per hour |
| Average Fuel Consumption | 40 - 50 ltrs p/h |
| Operational Temperature | > 850 °C |
| Gas Retention in Secondary Chamber | 2 secs |
| Temperature Monitoring | Yes |
| Average ash residue (%) | 3% |
| Thermostatic Device | Yes |
| Physical Specifications | |
|---|---|
| External Length (mm) | 6540 mm |
| External Width (mm) | 1840 mm |
| External Height (mm) | 6260 mm |
| Door Size (mm) | 4000 x 1500 |
| Shipping Weight | 21500 kg |
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
