Hydrogen Peroxide Vapor Analyzer System - HPV Analyzer

The Process Insights’s HPV analyzer is a simple turnkey solution that allows users to accurately measure concentrations of both hydrogen peroxide (H₂O₂) and water (H₂O) present with a given vapor sample, as both H₂O₂ and H₂O are codependent. This HPV analyzer operates in real time, thereby allowing users to confidently determine H₂O₂ and H₂O concentrations during cycle development, as well as throughout the actual sterilization cycle in a continuous manner for documentation and validation purposes.

Low Pressure Monitoring - Accurate, Reliable Results

Unlike other chemical sensors, the HPV analyzer measures concentrations of both H₂O₂ and H₂O present in the vapor phase under ambient or vacuum conditions.

As compared to other analytical techniques that require the use of low pressure during sterilization processes to ensure complete penetration of product packaging, the HPV analyzer instead allows users to closely monitor these cycles in real time to ensure that an accurate and precise measurement of the concentrations of both H₂O₂ and H₂O during each cycle.

Overall, the HPV analyzer is unique for the following reasons:

Rapid response rate

Multiple sample points on one analyzer

Not subject to sensor poisons or analyte degradation

Built-in validation available

Proven Technology

The HPV analyzer is equipped with Process Insights’s multi-wavelength ClearView db filter photometer analyzer platform that has successfully allowed users to measure H₂O₂ and H₂O concentrations present within various vapor mixtures for over 20 years through the use of near-infrared (NIR) and fiber optic-coupled analyzers.

The optimal wavelengths for both H₂O₂ and H₂O were selected to produce a simple, rugged, and reliable analyzer that has been specifically designed for this purpose. In fact, the newly developed design of the HPV analyzer is equipped with fixed wavelength filter technology, as well as a dual beam design to ensure the utmost stability and accuracy during operation.

Fiber optic cables provide the NIR light energy to the probe in the isolator, which then returns the non-absorbed light energy back to the analyzer to provide the optical equivalent of vapor sampling. The HPV analyzer is capable of measuring H₂O₂ and H₂O concentrations as low as 0.1 mg/L and 1.0 mg/L, respectively.

Easy Operation and Control

The HPV analyzer can be easily controlled using its touch screen, or remotely when connected to Ethernet (Modbus TCP/IP). All required analytical calculations are encoded in the software.

Quick Installation and Start-up

The complete HPV analyzer system consists of a pre-calibrated HPV analyzer, one or two G-SST probes and a pair of fiber optic cables for each probe. By eliminating the need for the user to program the HPV analyzer, easy start-up occurs by simply connecting the probe or probes using fiber optic cables, taking a ZERO reading in the dehumidified isolator and subsequently beginning measurements of H₂O₂ and H₂O.

Performance Validation

When performance validation is required, the G-SST probe is equipped with an optional and highly recommended built-in validation filter that is comprised of polymeric material. By utilizing this probe, validation of system performance is made easy as a result of the spectral characteristics the probe utilizes at wavelengths in order to measure H₂O₂ and H₂O concentrations.

In addition, the G-SST was specifically chosen for its impressive insensitivity to moisture and other unwanted temperature conditions. When performing a validation measurement, the validation filter is temporarily moved into the light path, thereby allowing for the optical characteristics of the system to be checked.

HPV Analyzer Optional Enclosures

The HPV analyzer, which will typically be housed in a stainless-steel enclosure, is applicable for use in medical, pharmaceutical and food industries. Note that other enclosure options, such as, painted carbon steel, explosion-proof or purged materials, can be made available according to the specific area classification requirements.

The Smart Choice for Reliable HPV Measurement

Process Insights’s HPV analyzer system is a proven tool capable of providing users with highly accurate and real-time measurements on the concentrations of both H₂O₂ and H₂O present within vapor phases. The long-term stability which eliminates the need for any maintenance requirements makes the HPV analyzer a particularly cost effective and smart choice that can optimize production within its given application, as well as ultimately ensuring product quality and enhancing profitability.

Product Specifications

H₂O₂ Vapor Measurement Range:

0.1-50.0 mg/L

71.2 – 35,600 ppm V/V

H₂O₂ Measurement Accuracy:

± 0.1 mg/L

H₂O Vapor Measurement Range:

1.0 mg/L – to condensation

> 1345 ppm V/V

H₂O Measurement Accuracy:

1.0 mg/L

Enclosure Options:

Stainless Steel Dimensions:

16 inches x 12 inches x 6 inches

41 cm x 30 cm x 15 cm

Painted Carbon Steel Dimensions:

14 inches x 12 inches x 6 inches

36 cm x 30 cm x 15 cm

Sample Points Channels: 1 or 2

Response Rate:

Minimum of one second

Can be adjusted according to the user’s specific requirements

Operating Environment:

Ambient Temperature: 10 – 45 °C

Optimal ambient temperature stability: < ± 2 °C

Relative Humidity: 0 – 90% non-condensing

User Programmable Features:

Password protection for configuration changes

Sampling time: minimum of one second; however, can be adjusted according to user’s specific needs

Reporting units: mg/L or ppm-V

HPV Analyzer System Accessories and Options:

Second channel available for additional independent sampling point

Customizable length fiber cables

KF or Tri-clover^® flanged fiber feed throughs and dual fiber feed throughs

Annual factory calibration service available

Universal power supply (110-240 VAC converter to 24 VDC)

Custom calibration for elevated temperature

Fiber Cable:

500 μm Ultra Low-OH fiber with Stainless Steel SMA-905 connectors

Kevlar^® protected or armored cables available

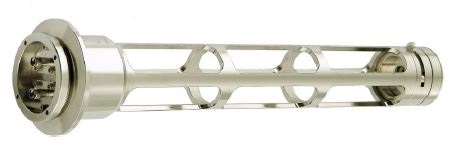

G-SST Vapor Process Probe works in Vacuum-to-Positive Pressure

G-SST Vapor Prove for HPV Analyzer:

Operating Temperature Range: 5 °C to 120 °C

50 cm path length - double pass 25 cm

Suitable for multiple purposes:

Vacuum (down to 1 x 10^-5 Torr)

Positive pressure (up to 1520 Torr, 2 atm)

SMA 905 fiber optic interface

Optional built-in validation filter

Probe may be mounted fully inside the isolator or through isolator wall using a 2-inch sanitary flange

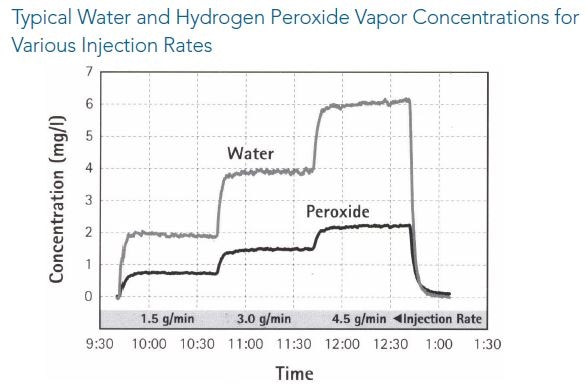

Hydrogen Peroxide and Water Concentrations in an Isolator
