Glacier™ T: Compact, High-Performance TE-Cooled CCD Spectrometer
The Glacier® T series from B&W Tek is a high-resolution, double-pass transmission-based thermoelectric-cooled (TEC) linear CCD array spectrometer particularly designed for Raman spectroscopy.
The Glacier T spectrometer has been preconfigured for 785 nm or 532 nm excitation with a broad spectral range or high-resolution option.
The TE-cooled spectrometer also features a high-speed USB 2.0 interface, a built-in 16-bit digitizerand 2048 elements, thereby constantly delivering improved high-throughput outcomes.
Integrating a Glacier T spectrometer to its equivalent excitation laser system and Raman probe offers an OEM building block or module-level Raman system. In addition, application support and system development are available for OEM applications
Features
A 16-bit digitizer
A resolution* of 3.0 cm−1 to 4.5 cm−1
Rapid F/2 spectrograph
OEM building block
Raman shift* of 0 cm−1 up to 4000 cm−1
14 °C TE-cooled detector
*-Varies by model
Accessories
A 532-nm laser
A 785-nm laser
An industrial-grade probe
A lab-grade probe
Raman Spectrum: Cyclohexane.
Image Credit: B&W Tek
Dark Current: Uncooled versus Cooled CCD Detectors at 30 Seconds

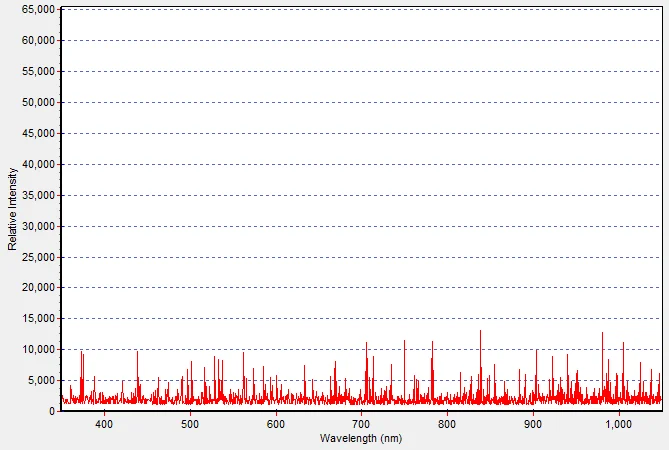

Room Temperature. Image Credit: B&W Tek
Cooled to 14 °C. Image Credit: B&W Tek
Specifications
Table 1. Source: B&W Tek
| . | . |
|---|---|
| DC Power Input | 5 V DC < 1.5 Amps |
| AC Adapter Input | 100 - 240 VAC 50/60 Hz, 0.5 A @ 120 VAC |
| Detector Type | Response Enhanced 2048 element linear silicon CCD array |
| Pixels | 2048 x 1 elements @ 14 µm x 200 µm per element |
| Spectrograph F# | 2.0 |
| Slit | 20 mm (785 nm), 10 mm (532 nm) |
| Spectrograph Optical Layout | Transmission |
| Dynamic Range | 300 typical |
| Digitizer Resolution | 16-bit or 65,535:1 |
| Readout Speed | 500 kHz |
| Data Transfer Speed | Up to 180 spectra per second via USB 2.0 |
| Integration Time | 5 ~ 65,535 ms x multiplier |
| External Trigger | Aux Port |
| Operating Temperature | 15 °C - 35 °C |
| Operational Relative Humidity | 85% Noncondensing |
| TE Cooling | 14 °C |
| Weight | ~1.8 kg (3.9 lbs) |
| Dimensions | 191 mm x 94 mm x 90 mm (7.5 in x 3.7 in x 3.5 in) |
| Computer Interface | USB 2.0 / 1.1 |
| Operating Systems | Windows: XP, 7, 8, 10 (32-bit & 64-bit) |
Available Models
Table 2. Source: B&W Tek
| Model # | SpectralRange | SpectralResolution | ApproximateRaman Shift | Resolution* |
|---|---|---|---|---|
| BTC162E-532S | 532 - 676 nm | ~0.15 nm | 0 cm-1 - 4000 cm-1 | ~4.0 cm-1 @ 614 nm |
| BTC162E-532H | 532 - 645 nm | ~0.11 nm | 0 cm-1 - 3300 cm-1 | ~3.0 cm-1 @ 614 nm |
| BTC162E-785S | 780 - 1050 nm | ~0.37 nm | 0 cm-1 - 3200 cm-1 | ~4.5 cm-1 @ 912 nm |
| BTC162E-785H | 784 - 996 nm | ~0.29 nm | 0 cm-1 - 2700 cm-1 | ~3.5 cm-1 @ 912 nm |
*-Varies by Model
Accessories
Raman Probes
Table 3.Source: B&W Tek
| Model # | Grade | For Excitation |
|---|---|---|
| BAC100-532 | Lab | 532 nm |
| BAC100-785 | Lab | 785 nm |
| BAC102-532 | Lab (Trigger) | 532 nm |
| BAC102-785 | Lab (Trigger) | 785 nm |
| BAC101-532 | Industrial | 532 nm |
| BAC101-785 | Industrial | 785 nm |
Sampling Accessories
Table 4. Source: B&W Tek
| Model # | Description |
|---|---|
| BAC151A | Video Microscope Sampling System |
| BAC150 | Raman Probe Holder |
| BCR100A | Cuvette Holder |
| BAC160 | Liquid Sample Flow Cells |
Lasers
Table 5. Source: B&W Tek
| Model # | Wavelength | Power |
|---|---|---|
| BWN-532-OEM | 532 +/- 1 nm | Up to 100 mW |
| BRM-785 | 785 +/- 0.5 nm | Up to 1 W |
