FT4 Powder Rheometer (Universal Powder Tester)

The FT4 Powder Rheometer - a universal powder tester for measuring powder flow properties and powder behaviour.

The FT4 was design for comprehensive powder characterisation, as a tool for solving powder processing issues. It differs from other powder testers in many ways but when assessing industrial value, three features are critical:

The ability to simulate powder processing conditions, by testing samples in a consolidated, moderately stressed, aerated or fluidised state.

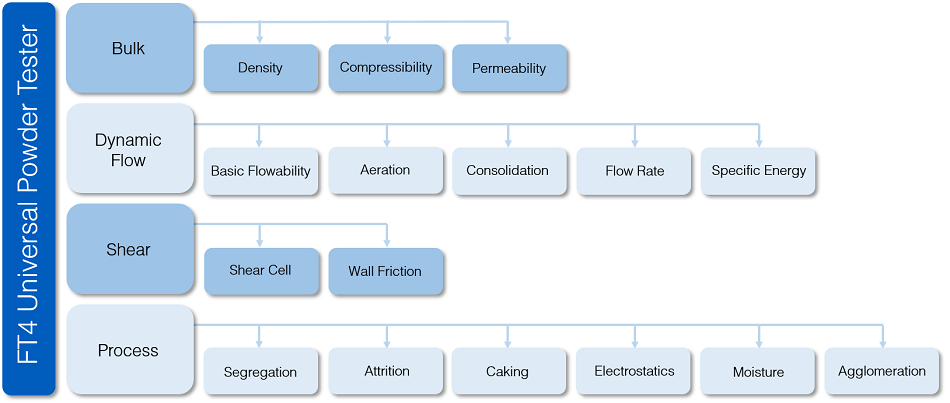

The application of multi-faceted powder characterisation to assess dynamic flow, bulk and shear properties to construct the most comprehensive understanding of how a powder behaves.

Unparalleled sensitivity, enabling the differentiation of powders that other testers classify as identical.

The FT4 Powder Rheometer^® employs unique technology for measuring the resistance of the powder to flow, whilst the powder is in motion.

In addition to unique dynamic methodology, the FT4 also includes a shear cell for measuring the powder’s shear strength, a wall friction kit to quantify how the powder shears against the wall of the process equipment (in accordance with ASTM standard D7891), and includes accessories for measuring bulk properties, such as density, compressibility and permeability.

The range of measurement capabilities makes the FT4 a truly universal powder tester and by far the world’s most versatile instrument for measuring and understanding powder behaviour.

Features

Fully automated test programs and data analysis

Conditioning mode provides unparalleled repeatability

Range of sample size, 10ml to 160ml (in addition a 1ml Shear Cell can be selected for limited sample size)

Download the Brochure for More Information

FT4 Powder Rheometer - a Universal Powder Flow TesterPlay

The equipment is the most professionally designed and user friendly equipment we’ve used.

Process Diversity

The nature of all processing environments is such that a range of conditions in unavoidable and the powder being processed will be handled under different stress regimes. To fully predict the powder’s in-process performance, it is essential to measure and quantify how it responds to each of these external variables.

Proven Applications

The FT4 has application in all powder processing industries, including Pharmaceuticals, Fine Chemicals, Food, Cosmetics, Toners, Metals, Ceramics, Plastics, Powder Coatings, Cements and Additive Manufacturing. Applications extend to:

Filling

Tablet Compression

Hopper flow

Wet granulation end point and scale up

Flow additive selection and optimisation

Humidity effects

Electrostatic charge

Mixing / Blending

Feeding

Segregation

Attrition

Dry powder inhalers

Caking

Milling

Conveying

Wall friction and adhesion

Hopper design

Compact hardness and payoff

Download the Brochure for More Information

Shear Cell Testing using the FT4 Powder RheometerPlay
