eLINE Plus: Ultra High Resolution Electron Beam Lithography, Nanoengineering and Imaging

The eLINE Plus from Raith is the optimum, extensively distributed system for Research Centers and Universities that want to integrate an Electron Beam Lithography system with an open platform for additional optional nanofabrication processes and methods in a single tool. A gas injection system for FEBIP processes, completely integrated nanomanipulators for e.g. nanoprobing, and a variety of further options complement the uncompromised lithography system architecture and make the eLINE Plus the world’s most universal and unique nanoengineering EBL system.

Gemini-type e-beam colum for broadest nanoengineering application bandwidth.

Gemini-type e-beam colum for broadest nanoengineering application bandwidth.Image credit: Raith

Nanoengineering, Nanomanipulation and Focused Electron Beam Induced Processes (FEBIP)

Broad range of nanofabrication processes

Advanced TFE electron column offering the smallest beam size in the world

Open and upgradable platform concept

Unique stitch-error-free writing modes, periodixx and traxx

Multiple detector concepts for unprecedented flexibility in mark recognition, imaging and analytical applications

Raith NanoSuite: Full software interface with all modules completely integrated

Expandable Research Tool Concept

With eLINE Plus´s modularly expandable research tool concept, users can upgrade and adapt their system to current trends in nanoresearch even long after the system is purchased. By spanning beyond the “classical EBL application range”, the eLINE Plus paves the way for interdisciplinary activities – across a number of fields of research.

The smallest electron beam size of 1.6 nm, delivered by an EBL system, signifies an indisputable prerequisite for examining the maximum resolution nanofabrication beyond frontiers – whether in nanolithography or other focused electron beam induced processes (FEBIP).

TwinLITH – Combining the Strengths of FIB and EBL

The ideal solution for next-generation nanofabrication is provided when a Raith electron beam lithography tool is combined with a Raith focused ion beam system. As the Raith systems share a software and hardware platform, perfect synergy of 2D EBL resist accelerated lithography and 3D direct FIB patterning can be realized. The shared lithography architecture makes it easy to exchange GDSII designs, sample holders and job lists, and thus permits advanced and efficient nanofabrication. These two separate and complementary systems allow additional nanofabrication tasks to be worked on in parallel without losing time or compromising the entire benefit of either nanofabrication method. Write with two hands simultaneously and make the most of each tools strengths for process development, patterning and control.

eLINE Plus Nanolithography Applications

Sub 5 nm lines in HSQ e-beam resist (Image Credits: J. Yang, D. Morecroft, M. Mondol, K. Berggren, MIT, and J. Klingfus, Raith USA)

Sub 5 nm lines in HSQ e-beam resist

Metallic lateral spin valves (Image Credits: F. Casanova et al., CIC nanoGUNE, San Sebastian, Spain)

Metallic lateral spin valves

Dense devices: 1 kB crosspoint RRAM (Image Credits: Sunghyun Jo, University of Michigan, USA)

Dense devices: 1 kB crosspoint RRAM

Advanced EBL: Photonic crystal structure in membrane (underetched) (Image Credits: William Whelan-Curtin, University of St. Andrews, UK)

Advanced EBL: Photonic crystal structure in membrane (underetched)

Precise neurite guidance by nanogratings (Image Credits: Laboratorio NEST Pisa, Nano Lett. 2011, 11, 505-511)

Precise neurite guidance by nanogratings

eLINE Plus Nanoengineering Applications

Nanoprobing of freely suspended Pt-nanowire, deposited on gold contact pads with EBID

Nanoprobing of freely suspended Pt-nanowire, deposited on gold contact pads with EBID

3D nanosculpturing by electron beam induced deposition (EBID)

3D nanosculpturing by electron beam induced deposition (EBID)

EBID-Deposit nanoprofilometry for growth rate determination (Raith)

EBID-Deposit nanoprofilometry for growth rate determination (Raith)

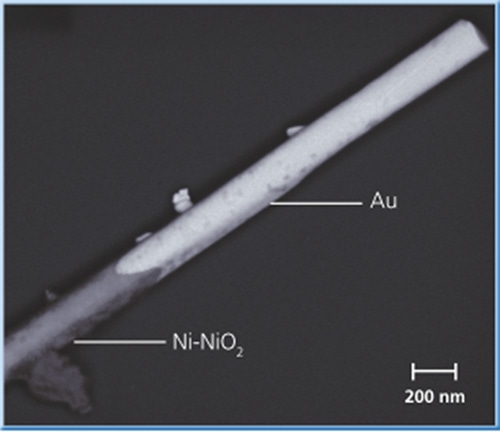

Material contrast with energy selective inlens BSE-detector

Material contrast with energy selective inlens BSE-detector

eLINE Plus Product Details

Main Application

Nanoengineering

Nanolithography

Nanomanipulation, nanoprofilometry, nanoprobing

Focused Electron Beam Induced Processes (FEBIP)

SEM imaging and analysis

Column Technology

Electron

Gemini

Inlense SE detector

30 kV

Energy selective BSE (EsB) detector option

Stage

Large Z travel

4” full travel

Rotation and tilt option

Unique Writing Mode

periodixx

traxx
