DXR3 Flex Raman Spectrometer

The research-grade Thermo Scientific™ DXR3 Flex Raman Spectrometer can be used with other analytical methods. The compact spectrometer employs the same design and optics as other sophisticated spectrometers in Thermo Scientific’s DXR3 Raman Spectrometer research product series. As a result, it enables transportability and hyphenation while maintaining data quality.

The DXR3 Flex Raman Spectrometer can assist users in achieving their objectives more quickly, whether they need to correlate chemistry and materials performance, expand their understanding of the materials with chemical identification, or oversee a process in real time.

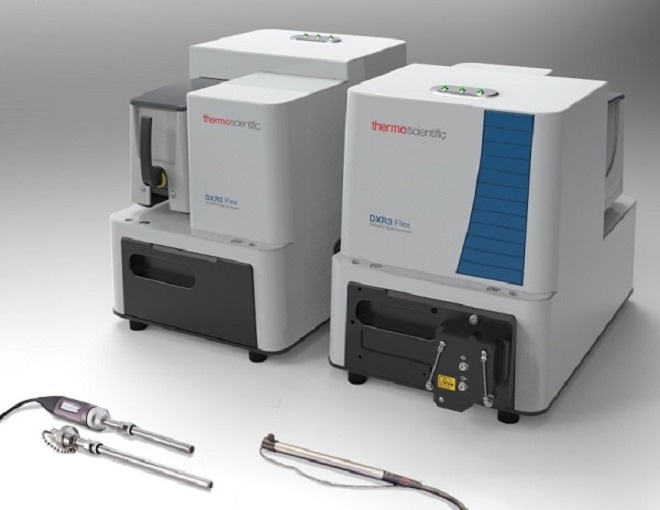

Image Credit: Thermo Fisher Scientific – Materials & Structural Analysis

DXR3 Flex Raman Spectrometer Overview

Custom coupling to nearly any equipment at any position is possible with open architecture. It is often referred to as the “Raman engine.”

Coupling with the DXR3 Flex Raman Spectrometer reduces the need for additional measurements and assumptions, allowing users to acquire answers faster

One measurement offers data from multiple approaches, all of which were obtained at the same time and under the same conditions

Discover the physical, chemical, and structural properties of the samples, in addition to how they interact with one another, all from a single measurement

Research laboratory-level spectroscopic performance

Excitation laser wavelengths and spectral resolution can be configured to optimize performance for specific materials

Free-space optical coupling removes fiber optic losses, resulting in increased sensitivity

Fiber optics coupling, macro and micro sample holders, objectives, camera, and other accessories are provided

Lasers are shareable and exchangeable with Thermo Scientific™ DXR3 Raman Microscopes

DXR3 Raman instrument is compatible with Thermo Scientific™ OMNIC™ software, data, and spectrum libraries. OMNIC D/S Software complies with CFR 21 Part 11

Couple the DXR3 Flex Raman Spectrometer With:

Rheology

Hot melt extrusion

Various microscopic stages and sample holders

Lab- and manufacturing-scale processing equipment

Optic-fiber systems: Any system with an optic fiber input (for supplying excitation frequency from the DXR3 Flex Raman Spectrometer) and output (to get emitted Raman signal back to DXR3 Flex Raman Spectrometer)

Raman Spectrometer Uses

Pharmaceutical

Geology

Polymers

Automotive/Aero

Cosmetics

Life Science/Bio-materials

Process/Bioprocess monitoring

Nanotechnology

Materials science research

Academic research
