Deep Reactive Ion Etching — PlasmaPro 100 Estrelas DRIE

The PlasmaPro 100 Estrelas platform from Oxford Instruments has been developed to provide complete flexibility for Deep Reactive Ion Etching (DRIE) applications- serving a diverse set of process requirements across the Advanced Packaging, Micro Electromechanical Systems (MEMS), and Nanotechnology markets.

Specifically designedfor research and volume production, the PlasmaPro 100 Estrelas provides the ultimate flexibility with Bosch and Cryogenic processes.

High etch rate and high selectivity with the Bosch process

Tapered through etches

Higher mean time between cleans (MTBC)

Enhanced reproducibility

Highly anisotropic (vertical) profile

Extensive range of applications

Smooth sidewall and high aspect ratio processes

Low rate and low power for nano-silicon etch and notch control (SOI)

Electrostatic or mechanical clamping (substrates’ compatibility)

Video Credit: Oxford Instruments Plasma Technology

Overview

To obtain anisotropic profiles, the DSiE technique or the Deep Reactive Ion Etching (DRIE) repeatedly integrates isotropic silicon etching and passivation steps. With the help of a high-density plasma source and quick gas-switching capability, this method allows users to achieve smooth sidewalls, profile verticality, and high etching rates together with high selectivity to masking materials.

From high aspect ratio processes to tapered via etches and smooth sidewall processes to high rate cavity etches, the PlasmaPro 100 Estrelas has been creaed to ensure that the wide range of applications in MEMS, advanced packaging and nanotechnology can be realised without the need to change chamber hardware.

Nano and microstructures can be realized as the hardware has been designed with the capability to run Bosch^™ and Cryo etch technologies in the same chamber.

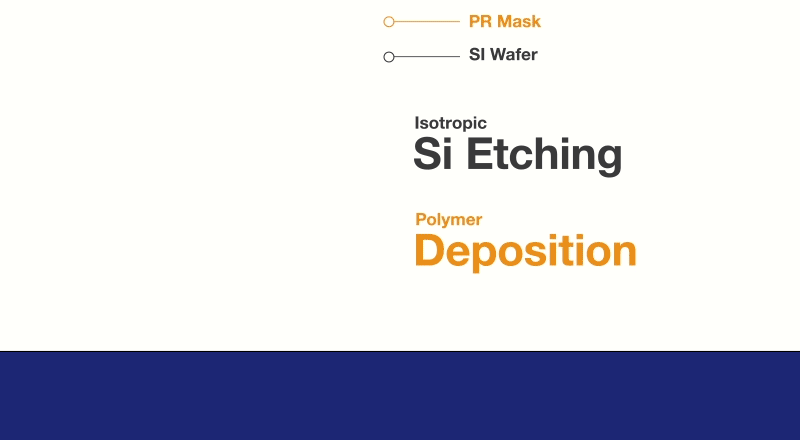

Bosch Process. Image Credit: Oxford Instruments Plasma Technology

Features

The platform is compatible with 50 mm to 200 mm substrates, guaranteeingthatusers have the chance to design devices that can be taken to production using the same chamber hardware.

Auto match — Process flexibility

Fast-acting close-coupled MFCs — Quick control (originally developed for ALD)

Higher flow MFCs and associated generators — High radical densities

Reduced chamber volume and high throughput pumping — Guarantees high gas conductance

System Requirements

High-density plasma (chemically driven process)

Sophisticated recipe editor

Close-coupled gas pod

Effective wafer cooling

High flow and pumping

Rapid and simple switching from liquid nitrogen (LN2) to the chiller and vice-versa

Heated liners and top plate

Applications

Bosch Applications

Normally, Bosch DSiE is utilized for features >1 µm and depths >10 µm, including:

MEMS for Smart Devices, Consumer, and Industrial Electronics

Microfluids

Through Silicon Via (TSV)

Biomedical devices

SiO₂ and Quartz Etch

High Q Capacitor Arrays and High Q Resonators for Quantum Devices

Image Credit: Oxford Instruments Plasma Technology.

Image Credit: Oxford Instruments Plasma Technology

Cryogenic Applications

Normally, cryogenic DSiE is utilized for smooth sidewalls and/or nano-etching and temperature-sensitive materials, as it offers a low-temperature process (−110 °C).

Photonics

Nano applications

Molding

Image Credit: Oxford Instruments Plasma Technology

Image Credit: Oxford Instruments Plasma Technology

Specifications

Table 1. Source: Oxford Instruments Plasma Technology

Parameter	Bosch	Cryogenic	Mixed Gas
Rate (?m/minute)	High	Moderate	Low
Selectivity to PR	Very High	High	Low
Profile	Vertical	Vertical or Sloped	Vertical or Sloped
Aspect Ratio	Very High	High	Low
Sidewalls	Scallops	Smooth	Smooth
ARDE control	Yes	Limited	Limited
Cleaning	Regular	Rare	Regular
Min. feature /nm	≈ 300	≈ 10	30

Atomic Layer Etching (ALE)

Atomic Layer Etching (or ALE) is a sophisticated etch method enabling outstanding depth control on shallow features. As device feature size decreases, ALE is required to achieve the accuracy needed for peak performance.

High-fidelity pattern transfer (etching) is necessary for the fabrication of present advanced microelectronic devices. Since features reduce to sub-10 nm levels and novel devices utilize ultra-thin 2D materials, there is a growing need for atomic-scale fidelity.

This has resulted in an increasing interest in a method called Atomic Layer Etching (ALE), which circumvents the limitations of traditional (continuous) etching at the atomic scale. Plasma-based atomic layer etching is a cyclical etching process of gas dosing and ion bombardment that eliminates material layer by layer and has the potential to eliminate single atomic layers with very low damage.

How Does Atomic Layer Etching Work?

Video Credit: Oxford Instruments Plasma Technology

Process Benefits

Achieves etching of layers with high-depth precision

Low damage to underlying substrates

Up to 200 mm wafer with normal uniformity <±2%

Can be utilized together with standard ICP

Advanced technology for high control of etch depth

Atomic Layer Etching Process

Normally, Atomic Layer Etching includes a cycle of four steps that are repeatedas required to obtain the necessary etch depth. The example below highlights ALE of AlGaN etching with Cl₂/Ar.

Step 1) Dosing of the substrate with an etching gas, which adsorbs on and reacts with the etch material. The etch gas is frequently plasma separated to improve the rate of adsorption. With the proper choice of dosing gas and parameters, it could be self-limiting if the chemical dose stops following adsorbing one monolayer.

Step 2) Purging of all residual dose gas.

Step 3) Bombardment of the surface exhibiting low energy inert ions, which eliminate the reacted surface layer. This could be self-limiting if the energy of the ions is enough to eliminate the chemically modified layer but inadequate to (sputter) etch the basic bulk material.

Step 4) Etching products are purified from the chamber.

Image Credit: Oxford Instruments Plasma Technology

Key Benefits

Benefits of Atomic Layer Etching

Low damage etching, as a result of the use of low ion energies

Self-limiting behavior

Accurate control of etching depth

High selectivity, as dose gas and ion energy can be customized to reduce the etching of mask layers or basic materials

Ultra-thin layer removal

Smooth etch surfaces

Anisotropic in nature, as a result of the reliance on ion bombardment

Etch rate is least impacted by the aspect ratio of etched features (that is, reduced ARDE), as the supply of radicals and surface ion bombardment have been isolated into separate steps

Enhanced uniformity, as a result of its self-limiting nature

Image Credit: Oxford Instruments Plasma Technology

ALE Features

Etch rates 2 to 7 Å/cycle

Rapid recipe control down to 10 milliseconds

Illustrated outcomes in a-Si, Si, MoS₂, SiO₂, GaN, AlGaN layer etching

Atomic Layer Deposition-style gas dose delivery happens with 10-millisecond open-close response

ALE of MoS₂ shows no Raman defect peak after etching, highlighting the low damage etching capabilities of ALE. Image Credit: Oxford Instruments Plasma Technology

25 nm wide Si trenches etched to 110 nm depth by ALE, HSQ mask still in place. Image Credit: Oxford Instruments Plasma Technology

AlGaN surface roughness after 200 ALE cycles, left = before etching (Ra = 600pm), right = after etching (Ra = 300pm). The surface has been smoothed by ALE. Image Credit: Oxford Instruments Plasma Technology

ALE Processes

Wide Range of Materials

ALE is ideal for an extensive range of materials, such as Si, a-Si, SiO₂, MoS₂, GaN, AlGaN, III-V’s, Si₃N₄, graphene, HfO₂, Al₂O₃, ZrO₂, metals, etc.

Table 2. Source: Oxford Instruments Plasma Technology

Material Etched	Dose Gas	Etch Gas
MoS2	Cl2	Ar
Si or a-Si	Cl2	Ar
SiO2	CHF3or C4F8	Ar or O2
AlGaN or GaN	Cl2, BCl3	Ar
AlGaN or GaN	N2O	BCl3
GaAs or AlGaAs	Cl2, BCl3	Ar
InP or InGaAsP etc.	CH4, Cl2	Ar
SiN	H2	Ar
Al2O3	BCl3	Ar
Graphene	O2	Ar
HfO2, ZrO2	Cl2, BCl3	Ar

AlGaN ALE Process Cycle. Image Credit: Oxford Instruments Plasma Technology

AlGaN Etch per Cycle with and without Chlorine dose. Image Credit: Oxford Instruments Plasma Technology

PlasmaPro 100 ALE

The Atomic Layer Etching equipment is constructed based on 13+ years of experience.

Listed below are the key features:

Quick recipe control, down to 10 milliseconds

Dose gas pulses down to 10 milliseconds, providing outstanding control of dose quantity

Integrated traditional and atomic layer etching can be done in a single tool, with mode selection through software recipe control

Chamber and source design proven for ALE and standard etching

Outstanding control of ion energy, along with power control down to 0.3 W in increments of 0.1 W

Patented hardware (US 10,008,369 B2)
