DECTRIS EIGER®2 Photon-Counting X-Ray Detectors

DECTRIS EIGER^®2 photon-counting detectors feature an active detector area that can range in size from extremely small to very large, a small pixel size of 75 µm, and a high speed. These detectors enable researchers to fully utilize the rising beamline photon fluxes with their count-rate capability of 10⁷ ph/s/pixel and DECTRIS Instant Retrigger^® technology.

The most resilient detector for modern beamlines is EIGER2, which has excellent support, and optional vacuum capability, and is constantly being improved.

Fast: Continuous readout and an exceptionally high frame rate are provided by EIGER2 detectors

More and better data: The detectors have two energy-discriminating thresholds that can be adjusted; a substantial active area and a high-count rate. Neither readout noise nor dark current exists

Reliable: These detectors offer remarkably stable performance and radiation-resistant construction. Due to efficient industrial production and excellent customer service throughout the entire product’s lifetime, delivery terms are guaranteed

Detectors

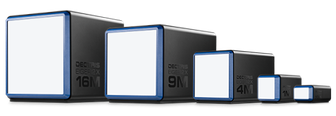

EIGER2 X/XE

Image Credit: Dectris Ltd

The brightest 4^th generation synchrotron sources have been equipped with EIGER2 X/XE hybrid-photon-counting detectors, which are the fastest and largest X-Ray detectors.

EIGER2 X/XE CdTe

Image Credit: Dectris Ltd

The EIGER2 X/XE CdTe detector family has been designed for high-energy applications at synchrotron beamlines and offers the highest commercially available resolution and frame rate.

EIGER2 S

Image Credit: Dectris Ltd

EIGER2 S hybrid-photon-counting detectors provide beamlines with an unbeatable price per pixel without compromising resolution since they are the most cost-effective detectors of the most recent generation of synchrotrons.

Compare

Source: Dectris Ltd

*All specifications are subject to change without notice.

Techniques

X-Ray Diffraction

Image Credit: Dectris Ltd

Due to the high dynamic range of DECTRIS strip detectors, patterns with both light and strong reflections are easily handled.

Scattering

Image Credit: Dectris Ltd

The excellent signal-to-noise ratio and fast frame rates of the detectors make them ideal for scattering techniques like SAXS/WAXS.

Imaging

Image Credit: Dectris Ltd

Spectral sensitivity for analytical instruments in the medical and industrial fields is facilitated by the multiple thresholds of DECTRIS detectors.

Spectroscopy

Image Credit: Dectris Ltd

Even the most sophisticated spectroscopic methods are improved by the union of single-photon sensitivity and the absence of background noise.
