Cryostats for Laboratory Sample Cooling

The Janis SHI-4 series cryostats are considered the most versatile systems available for laboratory sample cooling. These cryostats are fitted with interchangeable optics, and have provisions for a wide range of electrical connectors. A robust mounting flange and as tapped holes on the vacuum shroud ensures easy mounting in any orientation.

Standard Configuration

The Janis SHI-4 series cryostats are specifically designed for measurements to 325 K, and optional configurations enable operation to 500 K or 800 K (with special thermometry).

These systems are optimized for experiments requiring optical access to the sample, and include the following components:

Four o-ring sealed quartz windows

Optical vacuum shroud and radiation shield

10-pin electrical feedthrough, with three spare electrical access ports

Gold-plated OFHC copper sample holder

Silicon diode thermometer and control heater

Safety pressure relief valve and evacuation valve

Easily removable window block with o-ring seal situated just above the windows (SHI-4-2 and SHI-4-5 systems only)

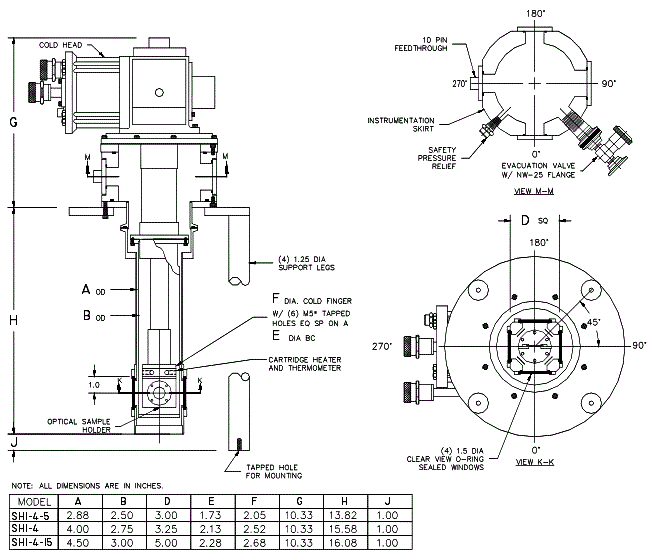

Standard Optical (SHI-4-x) Configuration Mechanical Drawing (Models SHI-4, SHI-4-15, SHI-4-5)

Available options:

Rotatable vacuum shroud

Custom designed vacuum shroud

Compact vacuum shroud (for use with electromagnets)

Additional electrical feedthroughs (SMA, BNC, multipin, and others)

Rotation and positioning stages

Fifth window port

Matrix isolation configuration

Specially modified window block with larger window as an option (SHI-4-x)

Radiation shield windows

IR and other window materials

500 K & 800 K high temperature systems available on most models (800 K with special thermometry)

Large sample volume configurations

Non-optical configurations

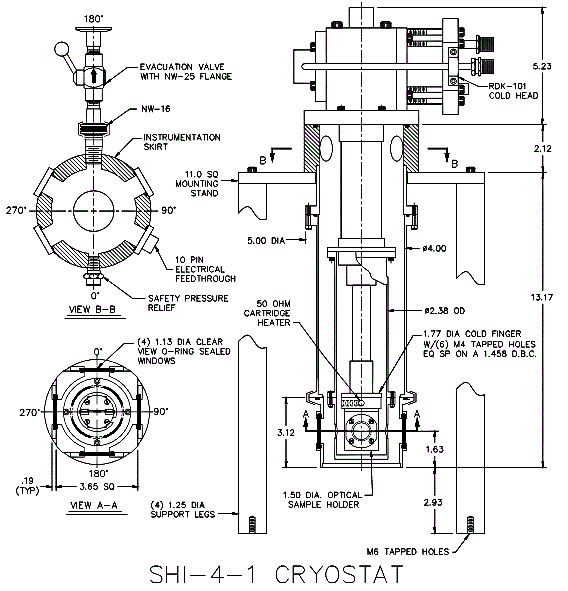

Model SHI-4-1 Standard Optical Cryocooler Mechanical Drawing

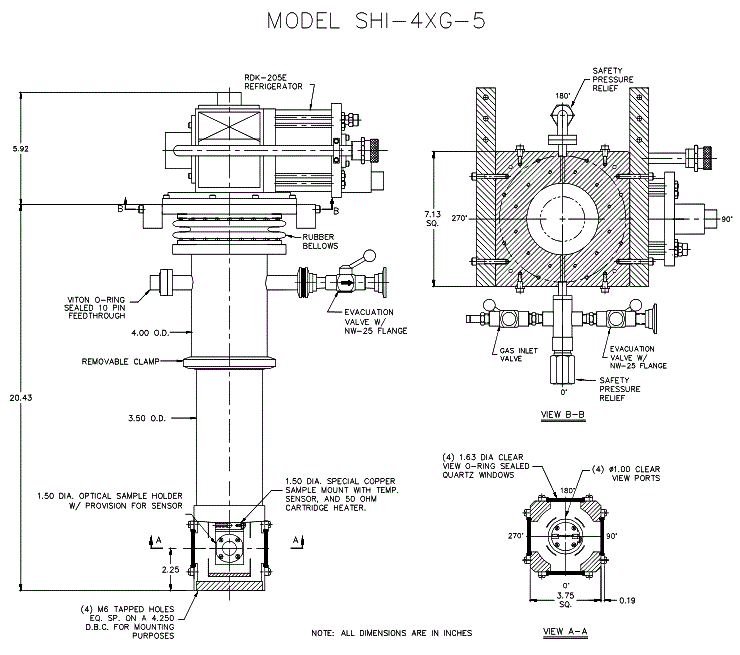

Low Vibration Interface (SHI-4XG-x) Configuration Mechanical Drawing shows dimensions for the 0.5 W model. Other models are also available.

Standard models include:("x" indicates the cooling power of the refrigerator)

SHI-4S-x (Sub-compact)

SHI-4-x (Optical)

SHI-4T-x (Non-optical)

CCR4-MMP (Cryogen-free probe station)

SHI-4XG-x (Low vibration interface)

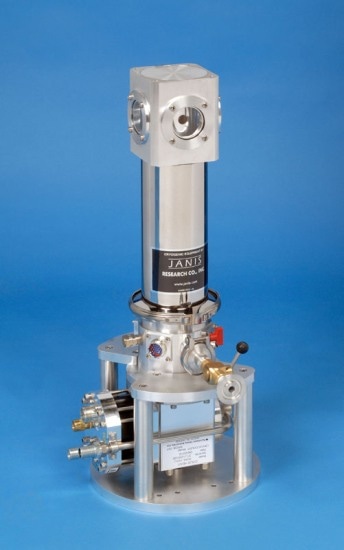

SHI-4-2 0.2 Watt 4 K Optical Cryocooler

SHI-4-5 0.5 Watt 4 K Optical Cryocooler

SHI-4 1 Watt Optical 4 K Cryocooler

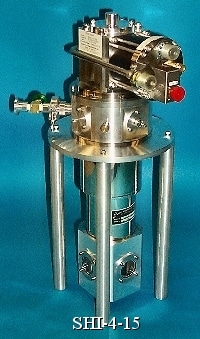

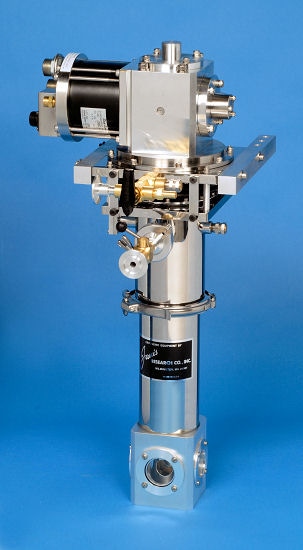

SHI-4-15 1.5 Watt Optical 4 K Cryocooler

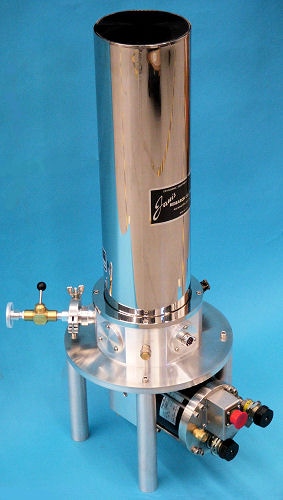

SHI-4T-1 Non-Optical 4 K Cryocooler with Optional Mounting Stand

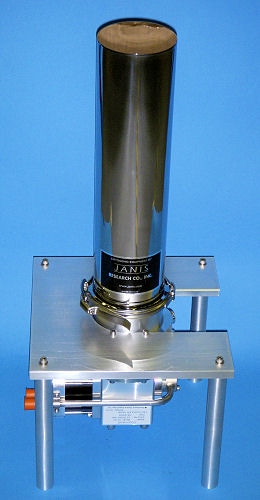

SHI-4T with Optional 800 K High Temperature Stage

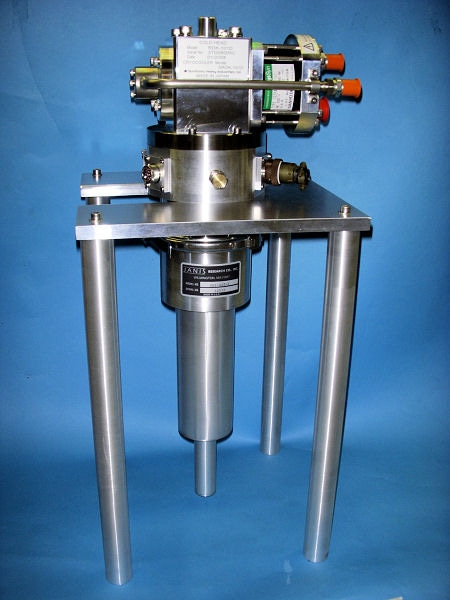

SHI-4ST-1 Sub-compact, Non-optical 4 K Cryocooler

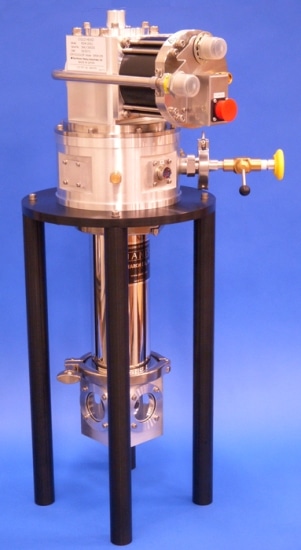

SHI-4XG-5 Low Vibration Interface 4 K Cryocooler

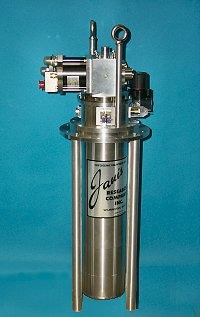

SHI-4T-4 Non-optical 4 K Cryocooler
