CLUE: Cathodoluminescence Solutions for Electron Microscopy

The Cathodoluminescence Universal Extension from HORIBA Scientific improves any SEM’s analytical abilities while maintaining its original functionality. As the sample has the potential to remain in the same spot, it is possible for CLUE to be integrated easily with the availability of other microscopy applications, like EBIC and EDS.

Features

CLUE systems include HORIBA's MicroHR, iHR and LabRAM series spectrometers, Synapse Plus^™ and Syncerity^™CCDs and EMCCDs, Symphony^™InGaAs arrays as well as photomultiplier tube detectors to create unrivaled flexibility.

In addition, CLUE is completely automated, regulated by LabSpec 6^™software, with data-fitting, experimental parameters, display, and export. It is user-friendly and provides advanced data acquisition routines and extensive system control.

Specifications

i-CLUE-e

Fast Imaging CL

Plug-and-Play Fast CL Imaging Module Features:

Field upgradable to complete hyperspectral CL solution

Ultra-compact panchromatic CL detection can be performed with PMT detection (200-900 nm)

Driven by EM software

Comes with a manually retractable ellipsoidal mirror with fine positioning adjustment

Remote control available for Brightness, Contrast, Gain, Reverse signal, High voltage

Large field of view available with High NA diamond-turned mirror

Image Credit: Horiba Scientific

F-CLUE-e

Spectroscopy andImaging CL

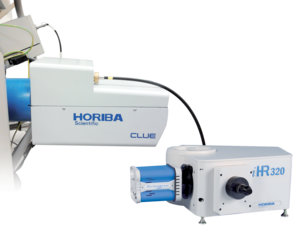

Rugged Fiber Coupled CL Add-on Detector Features:

Ultra-compact multi-detector available for CL imaging and Spectroscopy

Large field of view with High NA diamond-turned mirror

iHR320, 1 Entrance, 2 Exits ports, 7 mm slits

PMT 185-900 nm, integrated HV, CLLINK controller

Remote control available for Brightness, Contrast, Gain, Reverse signal, High voltage

Deep cooled CCD Open Electrode ranges from 200 to 1100 nm

Completely driven by Labspec 6 Software

Manually retractable ellipsoidal mirror available with fine positioning adjustment

Image Credit: Horiba Scientific

F-CLUE-p

Spectroscopy andImaging CL

Fiber Coupled CL Add-on Detector Features:

Ultra-compact multi-detector CL imaging and Spectroscopy

iHR320, 1 Entrance, 2 Exits ports, 7 mm slits

PMT 185-900 nm, combined HV, CLLINK controller

Deep cooled CCD Open Electrode 200 to 1100 nm

Large field of view with High NA diamond-turned mirror

Remote control for Contrast, Brightness, Gain, Reverse signal, High voltage

Motorized retractable parabolic mirror with fine positioning adjustment

Completely driven by Labspec 6 Software

Image Credit: Horiba Scientific

H-CLUE-p

Spectroscopy and Imaging CL

Directly Coupled High Sensitivity CL Add-on Detector Features:

Extensive spectral range multi-detector CL imaging and Spectroscopy

iHR320, 1 Entrance, 2 Exits ports, and 7 mm slits

Deep cooled CCD Open Electrode ranges from 200 to 1100 nm

Motorized retractable parabolic mirror with fine positioning adjustment

Large field of view with High NA diamond-turned mirror

Remote control for Brightness, Gain, Contrast, Reverse signal, High voltage

Comes with PMT 185-900 nm, integrated HV, CLLINK controller

Entirely driven by Labspec 6 Software

Time Resolved CL, Angle Resolved CL, and polarization

Image Credit: Horiba Scientific

R-CLUE-p

Spectroscopy and Imaging CL, Raman and PL

Fiber Coupled Versatile SEM-Raman-PL-CL Add-on Detector Features:

Field upgradable on users’ Raman microscope

Multi-laser and multi-detector Raman, PL, and CL Add-on for Scanning Electron Microscope imaging and Spectroscopy

Large field of view with High NA diamond-turned mirror

Completely driven by Labspec 6 Software

Several focal lengths spectrometers

Deep cooled CCD Open Electrode ranges from 200 to 1100 nm

Motorized retractable parabolic mirror with fine positioning adjustment

Remote control available for Brightness, Contrast, Gain, Reverse signal, High voltage

Image Credit: Horiba Scientific
