BTA: Breakthrough Analyzer

A versatile, compact,and high-performanceBreakthrough Analyzer.

Advanced design reduces dead volume, ensuring precise and reliable experimental outcomes

Customizable with up to sixprecision mass flow controllers and two vapor sources

Enables sample activation up to 1050 ℃

Equipped with a thermostated environmental chamber for consistent temperature control, even when utilizing vapors

Utilizes patented high-performance blending valves

Seamless integration with commercial Mass Spectrometer (MS) and Fourier Transform Infrared Analyzer (FTIR)

Secure door lock system for enhanced user safety

Description

Engineered for Performance

The Breakthrough Analyzer (BTA) is an adaptable gas delivery and management system designed for the precise characterization of adsorbent performance under process-relevant conditions.This system provides reliable adsorption data for gas/vapor mixtures through a flow-through system.

The BTA is a safe and highly optimized device for collecting transient and equilibrium adsorption data formulti-component systems. It can be customized with up to six precision mass flow controllers and features patented high-performance blending valves, offering unparalleled flexibility in experimental design. The gas-delivery design is superior, allowing precise control over composition and flow rate while minimizing dead volume.

Constructed from high-quality stainless steel, the column of the BTA can accommodate 0.05 to 2.5 g of adsorbent material. Automated sample activation up to 1050 °C is possible with the rugged,precise,and reliable resistance furnace.

Operating pressures are meticulously controlled from atmospheric to 30 bar through a servo-positioned controlled valve.

The thermostated environmental chamber ensures uniform temperature control throughout the entire system, eliminating cold spots and maintaining temperatures up to 200 °C. Operator safety is guaranteedduring analysis thanks to the BTA secure door lock system.

For experimental studies, vapor generators can be added to the BTA, facilitating the use of crucial probe molecules such as water. The BTA seamlessly connects to commercially available FTIRand MS systems, enabling efficient gas identification and quantification.

Safety and Features

Image Credit: Micromeritics Instrument Corporation

A safeand finely-tuned apparatus designed for gathering both transient and equilibrium adsorption data in multi-component systems.

Software-initiated shutdown

Door closure during analysis

Alarm for furnace temperature control

Optional valve for shutting off all Mass Flow Controllers (MFCs)

Optional integration with shutdown system

Optional gas detector in the thermostated environmental chamber

Optional shut-off valve for added control

Temperature-Controlled Thermostated Environmental Chamber

Prevents condensation of vapor streams.

Electropolished 316 SS Sample Column

Capable of holding up to 2.5 g, it is suitable for powder use; alternative diameters are also available for pellets or extrudates.

Touch Screen

Facilitates straightforward operation of the instrument and enables the monitoring of experimental conditions.

Sample Column

It is specifically tailored for handling small sample quantities.

Proprietary Blending Valves

Offer significant benefits in terms of gas mixing and reduction of system dead volume.

Addition of Detectors and Other Optional Accessories

The system's scalability allows for the gradual enhancement of capabilities by integrating detectors and various optional accessories (such as a MS, gas-chromatography-mass spectrometry, additional vapor sources, and vacuum activation, among others available upon request).

Automatic Door Lock

Guarantees temperature stability throughout the analysis process while prioritizing user safety.

Up to 6 Gas Inlets and 2 Vapor Sources

Providing an extensive array of analysis possibilities.

Specifications

Source: Micromeritics Instrument Corporation

.	.
Furnace Temp Max	1050 °C
Thermostated environmental chamber Temp Max	200 °C
Sample Mass	Up to 2.5 g
Sample Volume	Up to 2.5 mL

Additional Specifications

Determination of breakthrough curves

Investigation of kinetic performance of adsorbents

Determination of sorption selectivity

High-resolution separations using small sample quantities

Study of co-adsorption and displacement

Dynamic adsorption and desorption experiments

Ultra-low dead volume for rapid signal response

Automated switching between purge and process gases

Fully automated control via PC

Up to 6 high-precision mass flow controllers

Determination of single- and multi-component adsorption data

In-situ sample preparation up to 450 °C with a stainless steel column and 1050 °C with a quartz column

Programmable control of total pressure, flow rate, composition, and temperature

Optimized for research-scale sample sizes with interchangeable reactor beds

Configurations for gas-vapor and vapor-vapor separation

Touch Screen interface

Locked door during analysis to ensure user and analysis protection from altered temperature conditions

Patented “No Dead Volume” mixing valve with rapid switching

Configurations

Mass spectrometer

In multicomponent adsorption studies, MSis frequently employed to monitor the residual gas composition. TheMS is a prevalent detection method utilized for breakthrough analysis.

FTIR Analyzer

FTIR spectrometers are commonly chosen for experimental breakthrough studies, including the separation of xylenes or other aromatic hydrocarbons.

Humidity Sensor

Enables cost-effective direct monitoring of water content, particularly valuable in applications related to production control.

Sample Preparation System

Small quantities of active material can be mixed with an inert carrier to generate a homogenous sample and enhance analysis reproducibility.

CO₂ Sensor

Enables cost-effective, direct monitoring of CO₂ content, particularly valuable in applications related to production control.

Sample Column (Different Volume)

The BTAis compatible with various column diameters to cater to different sample morphologies, including powders, pellets, and extrudates.

MFC and Mixing Valves (Maximum 6 Gas Inlets)

Supplementary mass flow controllers and blending valves can be incorporated into the BTA to enhance analytical capabilities and broaden the scope of feasible experiments.

Vapor Source (Max of 2)

Optional vapor sources for the BTA are compatible with moisture and other vapors, including xylenes or other aromatics.

Application and Materials

Popular Applications

Direct Air Capture

Differential Absorption Lidar (DAC) poses challenges due to the low concentrations of carbon dioxide (CO₂) in the air, coupled with other impurities such as moisture. The captured CO₂ can sequestered underground, sold, or converted into value-added chemicalsto counterbalance carbon emissions.

Image Credit: Micromeritics Instrument Corporation

CO₂ Adsorption

CO₂emissions from power generation, chemical plants, and refineries represent significant point sources, and the elevated concentrations often necessitate distinct operating conditions compared to direct air capture.

Image Credit: Micromeritics Instrument Corporation

Olefin/Paraffin Separations

They constitute a fundamental component of the petrochemical industry and are employed in the manufacturing of polymers such as polyethylene and polypropylene. These separation processes are energy-intensive and contribute to an increase in CO₂ emissions.

Image Credit: Micromeritics Instrument Corporation

Natural Gas Separation

Before being utilized in industrial applications and households for heating and food preparation, natural gas, which is a blend of hydrocarbons and various gases, must undergo purification.

Image Credit: Micromeritics Instrument Corporation

Toxic Gas Adsorption

Porous solids find application in personal protection and are currently under development for capturing toxic gases, such as sulfur dioxide, hydrogen sulfide, and nitrogen dioxide, from natural gas or other process feeds.

Image Credit: Micromeritics Instrument Corporation

Water Adsorption

Extraction of water from the air could be a crucial technology in regions with limited access to clean water, either due to arid climates or the escalating demand for water in agriculture.

Image Credit: Micromeritics Instrument Corporation

Materials

Zeolites

Pressure swing adsorption employs Zeolites, such as 5A, 13X, or LiX, which have highselectivity fornitrogen adsorption. This process is utilized in air separation and oxygen production.

Image Credit: Micromeritics Instrument Corporation

Silicas

Amine-functionalized silicas serve as efficient and remarkably selective adsorbents, finding application in the direct air captureof CO₂.

Image Credit: Micromeritics Instrument Corporation

Porous Membranes/Monoliths

To enhance the operational efficiency of separation processes, porous membranes, and monoliths coated with zeolites or metal-organic frameworks (MOFs)are frequently employed.

Image Credit: Micromeritics Instrument Corporation

Activated Carbon

Activated carbon-filled canisters are utilized to capture volatile organic components (VOCs) emitted from automobile fuel systems, thereby minimizing these VOC emissions.

Image Credit: Micromeritics Instrument Corporation

Porous Aluminas

Alumina-supported ionic liquids prove to be effective adsorbents with promising applications in the separation of CO₂from natural gas.

Image Credit: Micromeritics Instrument Corporation

Metal-Organic Frameworks

MOFsexhibit high selectivity as adsorbents, making them effective for challenging commercial applications, including the separation of alkanes and olefins, olefins and alkynes, direct air capture, and the separation of CO₂and methane (CH₄).

Image Credit: Micromeritics Instrument Corporation

Breakthrough Adsorption Theory

Breakthrough analysis stands as a potent technique for assessing the sorption capacity of an adsorbent under flow conditions. Dynamic breakthrough adsorption offers numerous advantages compared to static adsorption measurements.

Efficiently gather data on multicomponent adsorption

Recreate process conditions

Assess adsorbate selectivity

When performing breakthrough analysis, careful sample preparation is crucial to avoid issues like pressure drop and mass transfer limitations.

Pressure drop occurs when the interstitial space between particles is not large enough to accommodatethe gas flow rate, while mass transfer limitations arise when the material's pore size is similar tothe kinetic diameter of the adsorbate. Properly sizing particles is thus essential for achieving optimal results.

Image Credit: Micromeritics Instrument Corporation

Multicomponent Vapor Analysis

The Micromeritics BTA can concurrently pass two vapor streams through its packed column. Its thermostated environmental chamber prevents condensation during analysis, maintaining a consistent temperature for all gases and vapors within the instrument.

Vapor streams are produced using a bubbler, which enables acarrier gas to reach saturation with the selected vapor. The accompanying figure illustrates multicomponent ethanol/water breakthrough measurements performedon zeolite 13X.

Image Credit: Micromeritics Instrument Corporation

Examining a Breakthrough Curve

Complete Adsorption

The adsorbate gas is entirely adsorbed, rendering it undetectable at the outlet of the breakthrough column.

2. Breakthrough

The adsorbate gas is initially identified at the outlet of the breakthrough column. Gas adsorption persists, however, the adsorbent reaches a point where it can no longer adsorb all of the incoming gas.

3. Saturation

The adsorbent has become saturated, reaching a point where it can no longer adsorb the adsorbate gas, enabling the gas to pass through the column unimpeded.

Image Credit: Micromeritics Instrument Corporation

Carbon Dioxide Adsorption

Single-component CO₂breakthrough adsorption experimentswere executed using zeolites 13X and 5A, as well as metal-organic frameworks MIL-53(Al) and Fe-BTC. All materials were analyzed at 30 °C with an equimolar gas stream comprising 10 sccm nitrogen and 10 sccm CO₂.

A 1 sccm stream of helium was also introduced into the feed gas stream as a tracer gas to assist in determining the onset of the breakthrough experiment.

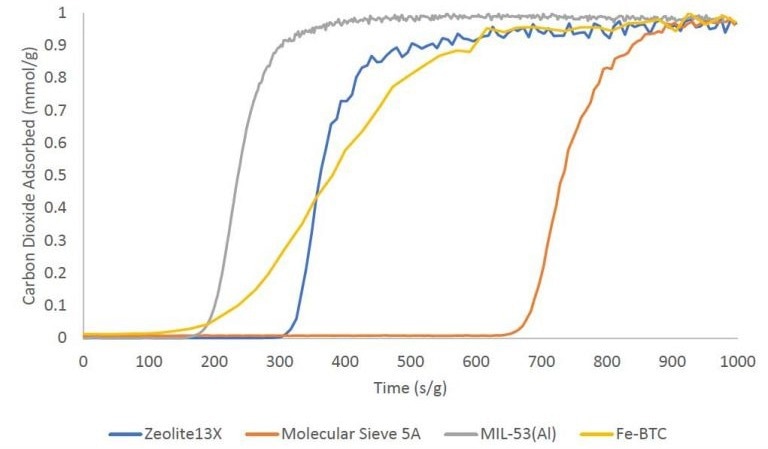

The breakthrough curves for these materials are depicted below on a mass-normalized axis. The overall quantity of CO₂ adsorbed follows this trend: molecular sieve 5A > zeolite 13X > Fe-BTC > MIL-53(Al). The table provided outlines the total quantity adsorbed in mmol/g.

Image Credit: Micromeritics Instrument Corporation

Source: Micromeritics Instrument Corporation

MATERIAL	CARBON DIOXIDE ADSORBED (MMOL/G)
ZEOLITE 13X	2.94
MOLECULAR SIEVE 5A	3.52
MIL-53 (AI)	1.23
FE-BTC	2.30

High-Pressure Adsorption

The application of zeolite 13X in catalysis and adsorption has been extensively studied. This study employed zeolite 13X as an adsorbent for CO₂ adsorption to generate breakthrough curves within the pressure range of 1 to 10 bar.

Equimolar flow rates of 10 sccm nitrogen and 10 sccm CO₂were used for these measurements.A1 sccm stream of helium servedas a tracer gas to identify the start of the breakthrough experiment. All measurements were conducted at an analysis temperature of 30 °C. Between each measurement, the zeolite 13X sample was reactivated overnight to guarantee complete desorption of CO_2^.

Image Credit: Micromeritics Instrument Corporation

The figure illustrates a consistent increase in breakthrough time across successive experiments as the pressure is elevated. Following the CO₂breakthrough measurements, an equilibrium adsorption quantity was determined for each curve by solving the breakthrough equation.

An isotherm was subsequently constructed, demonstrating the quantity of CO₂ adsorbed at 1, 2, 3, 5, 7, and 10 bar total pressure. At 10 bar, zeolite 13X demonstrated an adsorption capacity of approximately 15 mmol/g for CO₂.

Although isothermal data collected through breakthrough experiments may not be directly comparable to static adsorption measurements, it offers an evaluation of the adsorbent under conditions relevant to the process.

Image Credit: Micromeritics Instrument Corporation

Software

BTA Software

MicroActive is distinguished as the most intuitive, versatile, and comprehensive analysis software designed specifically for adsorption studies. Its adaptability, user-friendly interface, and ease of operation make it suitable for a wide range of experimental conditions and automates the breakthrough process from sample activation to analysis, such as the execution of cyclic experiments.

Image Credit: Micromeritics Instrument Corporation

When integrated with the industry-leading MicroActive analysis software, the BTA systemprecisely and reproducibly characterizes adsorbents.

Utilizing comprehensive analysis methods, it effectively analyzes dataand adeptly solves the breakthrough equation, even for the most challenging samples.

MicroActive Software enables

Data reduction from MS

Quantity adsorbed selectivity
