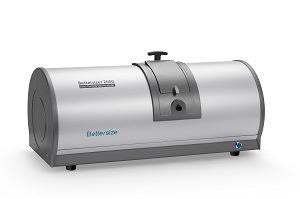

Bettersizer 2600 - Wet or Dry Particle Size Analyzer

The Bettersizer 2600 uses Laser Diffraction Technology to measure particles with sizes ranging from 0.02 to 2,600 μm. There are 92 photoelectric detectors that convert light signals from the scattering spectrum to electrical signals, which are then sent to intelligent software. The accurate and reliable particle size distribution can be obtained by applying the Mie scattering theory to the data and performing mathematical conversions.

The Bettersizer 2600's modular design makes it versatile. The dynamic imaging module combines laser and imaging tests, extending the measurement range to 3,500 μm and analyzing particle size and shape. The various dispersion system modules cater to a wide range of testing requirements, including both dry and wet dispersion methods.

BT-A60 Autosampler | Automated Efficiency in Particle TestPlay

Video Credit: Bettersize Instruments Ltd.

Features and Benefits

Auto-alignment of the laser diffraction system: elimination of manual adjustments

Modular dual-camera imaging system: 24 detailed particle parameters

Seamless switching dispersion units that can be used with wet or dry techniques

Software designed with ease of use and efficiency in mind

Dual optical system: Laser Diffraction and Dynamic Imaging

Compliance with ISO 13320, 21 CFR Part 11, USP <429>, ISO 13322-2

Measurement: Particle size and shape

Wide particle size range: wet dispersion: 0.02 to 2,600 μm; dry dispersion: 0.1 to 2,600 μm; dynamic image: 2.0 to 3,500 μm

Advanced laser diffraction system: A Combination of Fourier and inverse Fourier design

92 distributed spherical detectors array: detection of light signals from 0.016° to 165°

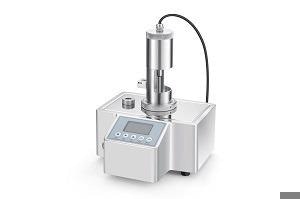

Dynamic Imaging Module: PIC-1. Image Credit: Bettersize Instruments Ltd.

The Bettersizer 2600 laser particle size analyzer and the wet dispersion system can be seamlessly integrated with the PIC-1 dynamic imaging module, a flexible and all-inclusive dynamic image analysis tool.

Parameter and Specification

Particle size range: 2–3,500 μm*

Size and shape parameters: 24

Camera type: CCD sensor, 1.5 Megapixels

Imaging rate: 120 fps

Illumination: White and blue LED

Image recognition: Up to 10,000 particles per minute

Magnification: 0.5× and 10×

Source: Bettersize Instruments Ltd.

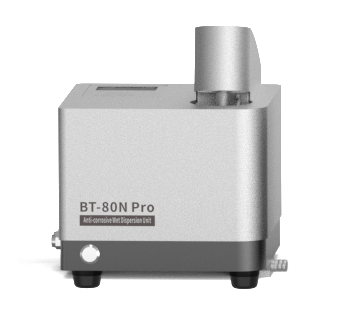

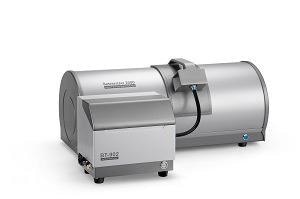

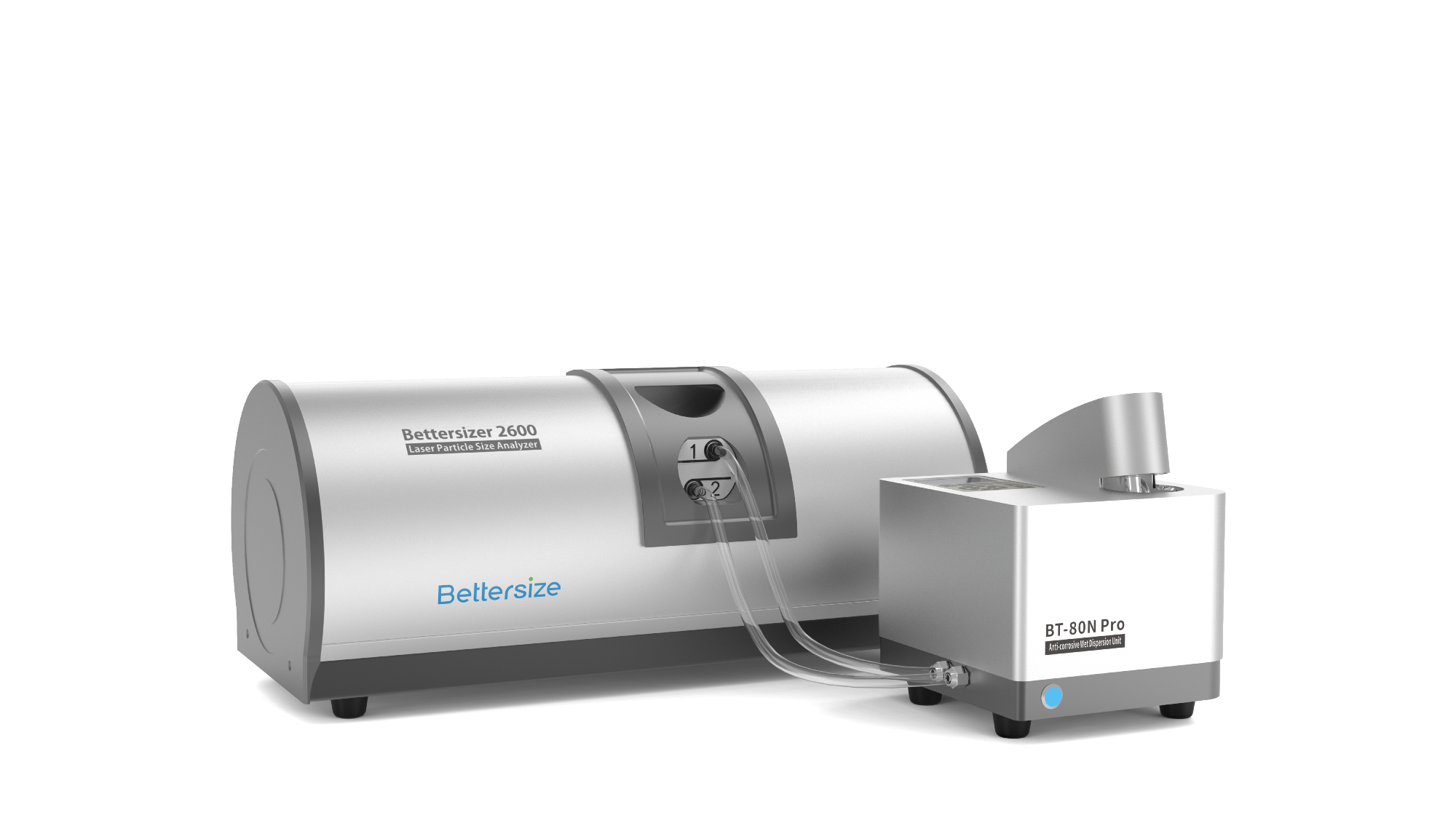

Sample Dispersion Modules	BT-802	BT - 804	BT-80N	BT - 80N Pro	BT-902	BT-903
Sample Dispersion	Wet sample dispersion	Wet small volume sample dispersion	Anti-corrosive sample dispersion	Anti-corrosive Wet sample dispersion	Dry sample dispersion	Dry small volume sample dispersion
Dispersion Modules
Combine with Main Device
Volume / Sample Mass	600 mL	8 mL	50 - 80 mL (dispersion medium)	80 - 200 mL(dispersion medium)	0.2 g-10 g	0.05 g-1 g
Automation	Fully automated	Semi-automated	Semi-automated	Fully automated	Fully automated	Fully automated

Intuitive and Powerful Software

Conversion from wet to dry dispersion can be done just by clicking a button

Editable reports and automatic data backup

Accurate analysis accomplished through appropriate application of the Fraunhofer or Mie assessment models according to sample size and type

Simple to use with an apparent intuitive interface

Easy-to-use SOP operation

Automatic cleaning routine

Real-time mode for finding out the ideal measurement conditions

Completely automated measurement routine with automatic calibration

Applications

Applications for the instrument can be found in the following domains:

3D Printing Materials

Abrasives

Batteries

Building Materials

Food and Beverage

Mining and Materials

Paints, Inks, and Coatings

Pharmaceuticals

Ceramics

Cosmetics

Image Credit: Bettersize Instruments Ltd.
