Bettersizer 2600: Advanced Modular Analyzer Featuring Patented Technologies

上海仪舶实验室自动化 25-01-23 12:46:45

Bettersizer 2600: Advanced Modular Analyzer Featuring Patented Technologies

The Bettersizer 2600 utilizes the widely recognized Laser Diffraction Technology for particle measurement, with a range of particle sizes from 0.02 to 2,600 μm. A total of 92 photoelectric detectors transform light signals into electrical signals, which are transmitted into intelligent softwarefrom the scattering spectrum. A precise and reliable particle size distribution can be obtained by applying the Mie scattering theory to the data and carrying out mathematical conversion.

Due to its modular design, the Bettersizer 2600 has many uses. The dynamic imaging module allows for combined laser and imaging tests, offering both particle shape and sizeanalysis and expanding the measurement range to 3,500 μm. The various dispersion system modules accommodate a broad spectrum of testing requirements, including wet and dry dispersion techniques to satisfy different testing specifications.

BT-A60 Autosampler | Automated Efficiency in Particle Test

Video Credit: Delta-T Devices Ltd

Features and Benefits

Auto-alignment of the laser diffraction system: elimination of manual adjustments

Modular dual-cameraimaging system: 24 detailed particle parameters

Seamless switching dispersion units: adaptability to both dry and wet methods

User-friendly software: efficiency and ease of use

Compliance with ISO 13320, 21 CFR Part 11, USP <429>, ISO 13322-2

Measurement: Particle size and shape

Wide particle size range: wet dispersion: 0.02–2,600 μm; dry dispersion: 0.1–2,600 μm; dynamic image: 2.0–3,500 μm

Dual optical system: Laser Diffraction and Dynamic Imaging

Advanced laser diffraction system: A Combination of Fourier and inverse Fourier design

92 distributed spherical detectors array: detection of light signals 0.016–165°

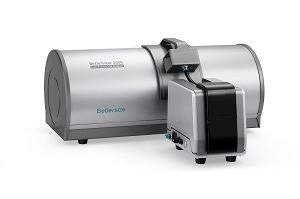

Dynamic Imaging Module: PIC-1

Dynamic Imaging Module: PIC-1. Image Credit: Bettersize Instruments Ltd.

The PIC-1 dynamic imaging module is a flexible and comprehensive dynamic image analysis tool that is designed to work seamlessly with the Bettersizer 2600 laser particle size analyzer and wet dispersion systems.

Parameter andSpecification of PIC-1 Dynamic Imaging Module

Particle size range: 2–3,500 μm

Size and shape parameters: 24

Camera type: CCD sensor, 1.5 Megapixels

Magnification: 0.5× and 10×

Imaging rate: 120 fps

Illumination: White and blue LED

Image recognition: Up to 10,000 particles per minute

Source: Bettersize Instruments Ltd.

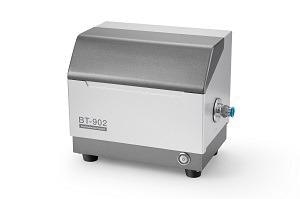

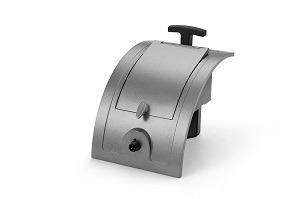

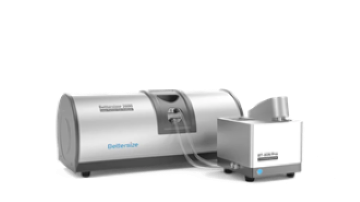

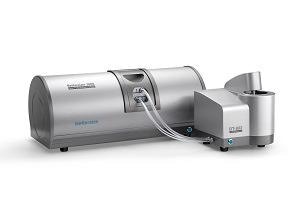

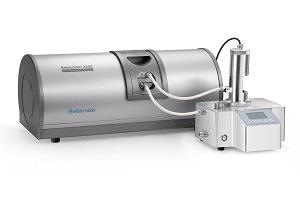

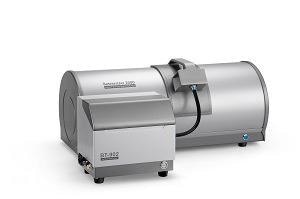

Sample Dispersion Modules BT-802 BT - 804 BT-80N BT - 80N Pro BT-902 BT-903
Sample Dispersion Wet sample dispersion Wet small volume sample dispersion Anti-corrosive sample dispersion Anti-corrosive Wet sample dispersion Dry sample dispersion Dry small volume sample dispersion
Dispersion Modules
Combine with Main Device
Volume / Sample Mass 600 mL 8 mL 50 - 80 mL (dispersion medium) 80 - 200 mL(dispersion medium) 0.2 g-10 g 0.05 g-1 g
Automation Fully automated Semi-automated Semi-automated Fully automated Fully automated Fully automated

Intuitive and Powerful Software

Easy to operate and a clear, intuitive interface

Simple standard operating procedures

Automatic cleaning routine

Real-time mode to determine optimal measurement parameters

Fully automated measurement procedure with automatic calibration

Single-button click to switch from wet to dry dispersion

Automatic data backup and editable reports

Based on sample size and type, accurate analysis is accomplished through suitable implementation of the Fraunhofer or Mie evaluation models

Applications

The following domains are among those where the instrument is used:

Abrasives

Batteries

Building Materials

Ceramics

Cosmetics

Food and Beverage

Mining and Materials

Paints, Inks, and Coatings

Pharmaceuticals

3D Printing Materials

Bettersizer 2600: Advanced Modular Analyzer Featuring Patented Technologies

Image Credit: Bettersize Instruments Ltd.
