Attolight’s Quantitative CL-SEMs Offer “No Compromise” Large Field/Fast Scanning Simultaneous SEM Imaging with Hyperspectral CL Maps

Figure 1. SEM and Quantitative CL map of Photovoltaic Heterojunction(a) SEM image of cross-section of CdTe/CdS photovoltaic heterojunction(b) CL map of the same cross section color-coded by emission frequency. Note the diffusion of sulfur at the junction

Capture the Power of Light Within

Electron microscopists have long had a matrix of e-beam and x-ray spectroscopies in their arsenal. However, cathodoluminescence (spectroscopic analysis of electron-activated light) has presented a unique set of challenges in terms of alignment, limited field of view, uniformity, and reproducibility.

New, fully integrated CL-SEM systems from Attolight solve those problems, requiring zero instrument alignment, producing 300mm fields of view without stitching, at very high speeds, with true quantitative results.

Figure 2. CL-SEM can be used across many different disciplines; Power- HEMT stack cross section Solar – CdTe PhotoVoltaic grain boundary studySemiconductors – Threading dislocation and Basal Stacking Fault in epilayer of GaNPhotonics – InGaN nanowiresNanotech - Strain analysis, GaN/AlGaN core-shell structureLife Sciences/Medicine - Vesicle classification using functionalized nanodiamonds (V=vesicle, NM = Nuclear membrane, M = mitochondria; L = SE image; R = HAADF w/CL overlay

Attolight’s Next-Generation Integrated Optical/Electron Column Design

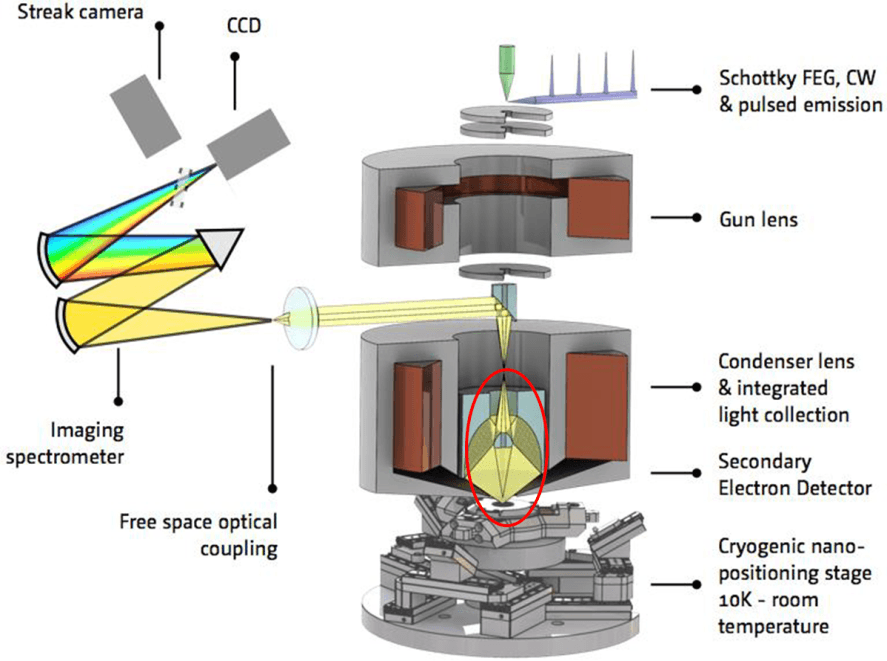

Figure 3. Attolight's integrated optical/electron column design eliminates instrument alignment and increases speed to produce uniform, reproducible electron imaging and hyperspectral CL analysis over very large fields of view (300mm). The result: fast time-to-results.

Benefits:

Designed from the ground up as an integrated CL-SEM system (Figure 2, red circle) puts optical collection within the electron column

Requires ZERO instrument alignment

Ensures CL uniformity and reproducibility, making the system quantitative as well as qualitative

Uses lower beam dosages, reducing the possibility for beam damage to sensitive samples

Fast! Measurement time range from 5s -30min compared to the competition’s 30min –multiple hours​

High numerical aperture optical objective (NA=0.71)

Enables much larger field of view (300mm) compared to parabolic mirror systems

0% photon loss due to vignetting in polychromatic mode

Comfortable 3mm working distance



Figure 4. SEM and Quantitative CL map of microLEDs (300mm field of view, unstitched) (a) Secondary electron SEM image(b) CL image showing InGaN peak shift illustrating defect type (c) CL Image showing same peak shift, illustrating doping uniformity (Sample: Array of 8x8µ microLEDs separated by 1µ spaces)

High current densities; low voltage

30nA for spots <10nm; 250nA for spot size <25nm

3-10kV for optimum contrast

Conventional or high speed hyperspectral imaging

2D RGB hyperspectral maps; 3D maps

Ability to spectrally slice the hypercube for specific wavelengths to isolate/identify local phenomenon and structures

Intuitive User Interface and specialized software

Touch screen based

Context-based

Attomap™ hyperspectral analysis software

Integrated cryogenic Nano-positioning stage (optional: 10K to room temperature)

Assures low drift

Minimal vibration

Unique scanning modes for full wafer characterization without cutting wafer (up to 300mm)

Continuous Upgrade Path

Time resolved CL with on-the-fly changeover from continuous to pulsed mode (<10 psec decay times)

Cryo stage for ultra-low thermal drift

EBIC, EBAC, RCI (fully compatible with cryo stage)



Figure 5. As with all our advanced techniques, Attolight's unique pulsed-mode option for time resolved CL can readily be added to our more basic systems.

Instrument	Hyperspectral CL Mapping	Thermal Range	Spectral Range	Time Resolved
Grammont 2172	Conventional	Room Temp	UV-NIR	No
Allalin 402	Ultrahigh speed	Cryo	UV-NIR	No
Rosa 4634	Ultrahigh speed	Cryo	UV - Full IR	No
Allalin 4027 Chronos	Ultrahigh speed	Cryo	UV - Vis	pSec TS
