ArmD® UV Shaped, ArmD® NIR Shaped Silica Non Circular Core Fiber

Armadillo SIAnon-circular core silica optical fibers display similar outstanding performance and transmission as ArmD^® UV/NIR fibers. Low focal ratio degradation and good image scrambling make it perfect for astronomy applications.

Image Credit:Armadillo SIA

When used with diode lasers, which offer a square-shaped output, the square core fibers provide higher coupling efficiencies than circular fibers.

In laser applications like surface pre-treatment, it is possible to process the material in a uniform way compared to what is possible with a circular beam due to less overlapping. The square output beam decreases the requirement for beam shaping optics.

Three types of standard radii are available for a square shape: r4<10%, 10%<r4<20%, r4 >20%.

Features

Broad UV/VIS/NIR spectral range

ArmD^®NIR: 300 to 2400 nm

ArmD^® UV: 190 to 1200 nm

Broad temperature range (−190 °C to 350 °C)

High laser damage resistance provided

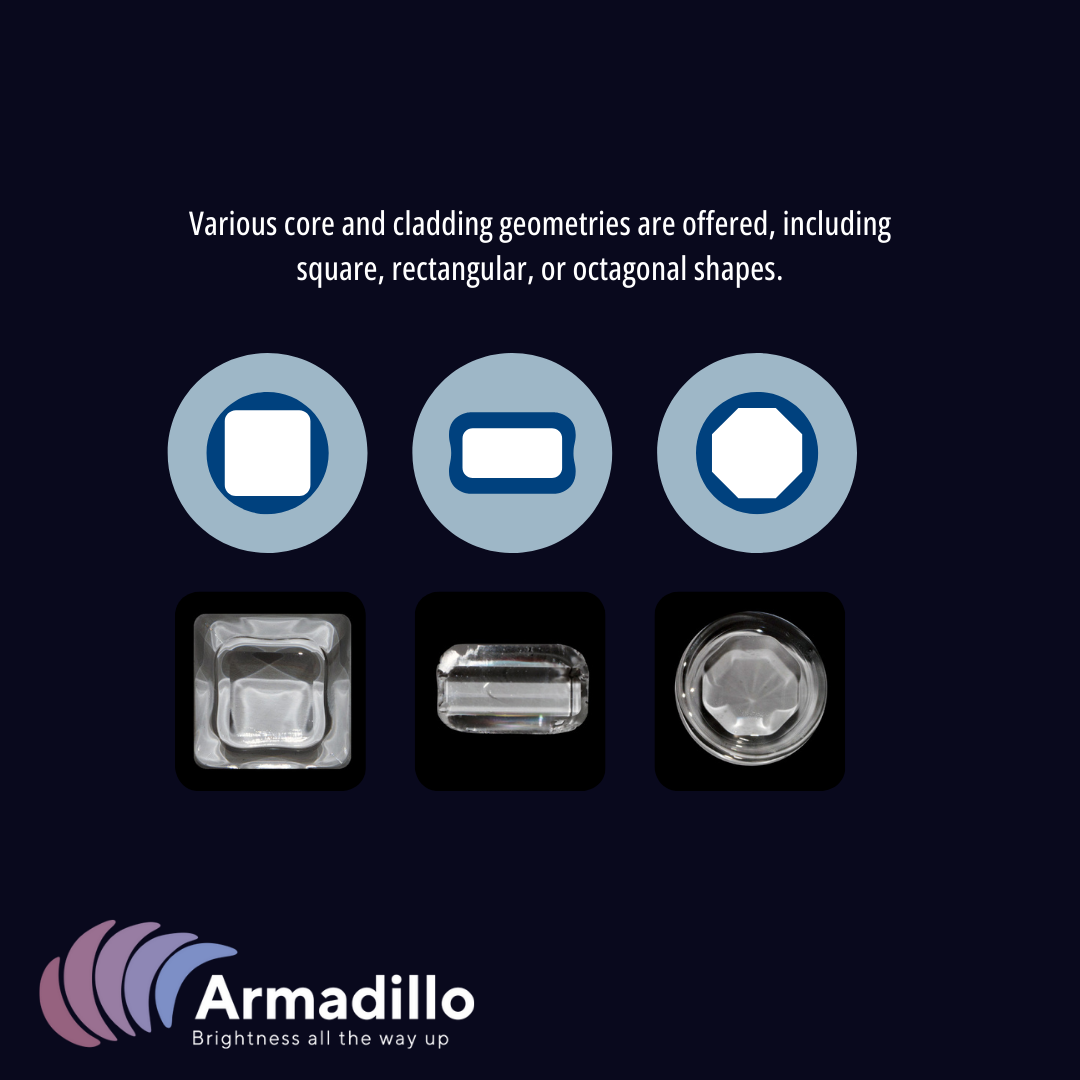

Comes with various core geometries; for example, square, octagonal, rectangular, etc.

Homogeneous power distribution

Image scrambling characteristics is outstanding

Manufactured at ISO 9001-compliant facilities

Materials are biocompatible

Excellent focal ratio degradation characteristics

Sterilizable by ETO and other techniques

Physical Properties:

Step index profile

ArmD^®NIR: low OH-content <1 ppm

Pure synthetic fused silica core

Available NA:

Low NA: 0.16 ± 0.02

High NA: 0.28 ± 0.02

Standard NA: 0.22 ± 0.02

Standard Prooftest:

100 kpsi (Nylon, ETFE, Acrylate jackets)

70 kpsi (Polyimide jacket)

Minimum Bend Radius:

150 × clad diameter (long term)

50 × clad diameter (momentary)
