ARL EQUINOX 100 for QA/QC and Academic XRD

For use in industrial and research labs, the Thermo Scientific™ ARL™ EQUINOX 100 X-Ray diffractometer (XRD) is engineered to satisfy structural and phase analysis needs. The bench-top design is the best and most affordable option for teaching in universities and colleges, conducting dynamic studies, determining formulations, and performing routine analyses.

TheARL EQUINOX 100 XRD is equipped witha unique curved position sensitive detector (CPS)that allows for simultaneous real-time full pattern acquisition, facilitating quicker analysis, in situ experiments, and the development and transitions of crystalline phases.

Versatile sample entry and analysis

Standard power supply; no external water cooling needed

Reliable and robust with no moving parts

Transmission and reflection measurement for superiorsample representativity

High intensity from low-power microfocus source

Real-time simultaneous data acquisition

Reliable and Robust

Thermo Scientific’s ARL EQUINOX series is intended for use in a variety of laboratories, including central, mobile, and production control labs. This X-Ray diffraction (XRD) technology responds to processes more quickly and with more flexibility.

No moving parts: Stationary X-Ray source and detector

Fixed focal length: does not need realignment

Acquisition in asymmetric mode over 110˚2θ

Adjustable sample incidence angle

Ideal for small-angle measurements

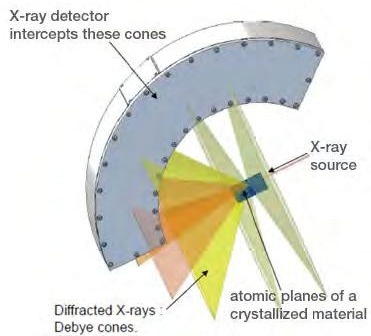

ARL EQUINOX 100 geometry: Asymmetric mode with a PositionSensitive Detector for real-time XRD acquisition. Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Flexible

Flexible Instrument

High Intensity From Low-Power Microfocus Source

Microfocus X-Ray sources are extremely bright beams produced by low-power X-Ray tubes.

This design uses a mirror system to collect and focus the beam of incident scattered X-Rays. The X-Ray flux diffracting the sample is thus significantly higher than in conventional systems, even at low power.

X-Ray flux close to a standard X-Ray source

Focusing mirror for higher intensity

Mirrors capture and focus X-Rays onto the sample for better efficiency.

Beam size: approximately 5 mm × 300 µm

Focusing beam geometry

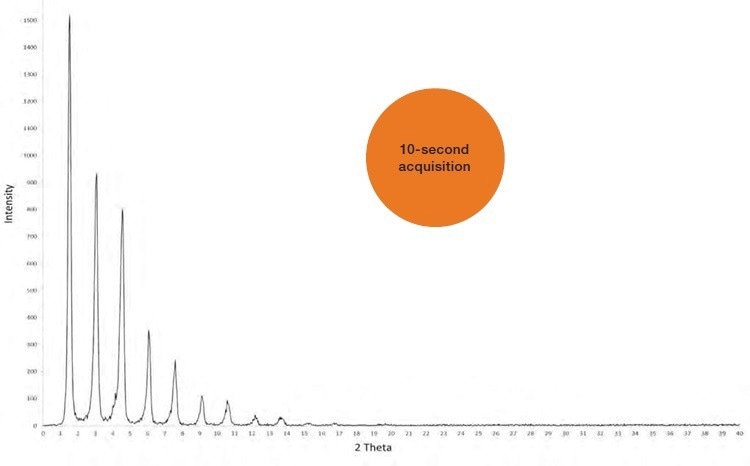

Acquisition at low angle on Silver behenate powder recorded in reflection mode.Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Versatile Sample Entry and Analysis

As the most adaptable benchtop XRD available, the ARL EQUINOX 100 XRD can measure reflection or transmission in a variety of analytical conditions with multiple sample types. Sample holders can be readily switched in a few seconds without requiring realignment. The following are the accessory stages:

Capillary transmission sample stage

Fixed non-spinning sample stage

Single-position spinning stage for reflection and transmission

Temperature-controlled stage

Reflection mode spinning stage with height adjustment

Controlled atmosphere reflection sample stage

Six-position automatic sample changer with spinning stages

GIXRD thin layer analysis stage

Real-Time Simultaneous Data Acquisition

The CPS real-time detectors are unique acquisition instruments that simultaneously collect alldiffraction data. These detectors enable fast analysis as well as dynamic studies by performing real-time diffraction experiments on powders, bulk materials, and thin films.

Applications

Studies and Applications

Dynamic Studies

Dynamic crystallographic measurements in real time are necessary for the study of the physical and chemical properties of materials as a function of temperature, environment, pressure, and other factors.

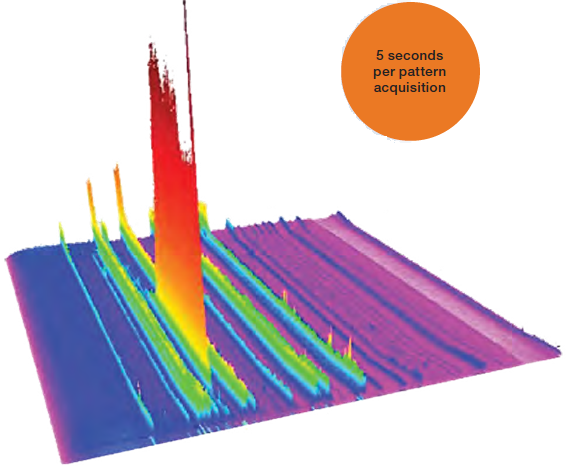

Phase transition at high temperature.Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Position Sensitive Detectors (PSD) allow for the real-time capture of structural phase transitions or material modifications. It can be particularly difficult to ensure that no transition is missed during a measurement when working with unstable compounds, but the PSD acquires the entire XRD diffractogram simultaneously.

Thin Film Applications

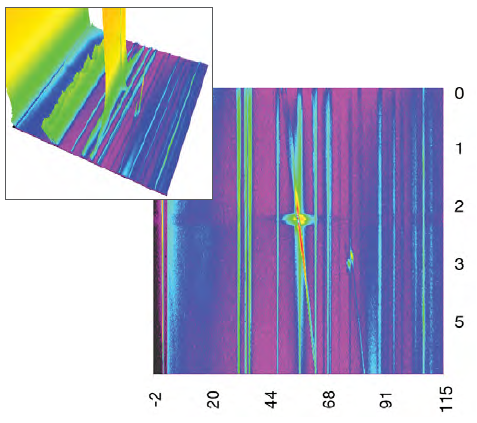

Grazing incidence measurement: Observation of an interference with the substrate peak.Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Evaluation of thin film materials can be accurately and easily conducted using theARL EQUINOX 100 XRD, as it has adedicated sample platform.

Grazing incidence X-Ray diffraction (GIXRD) is employed to discern the phases, texture, or structure of a thin crystallized deposit on a specific substrate. Reflectometry (XRR) is utilized to ascertain the composition and thickness of film deposits, along with the roughness of interfaces.

Attachments

Samples and Attachments

The largest selection of sample holders on the market for benchtop XRD

Fixed Sample Stage

Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Transmission or reflection mode

Glass plate stationary sample mount for powders, tiny solids, or samples

Sample position aligned with a positioning screw

Spinning Stage for Powder Sample

Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Special cups to protect air-sensitive samples

Zero background holder for micro-quantity samples

Reflection and transmission mode on powder

Continuous sample rotation

Spinning Stage With Height Adjustment

Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Reflection mode on powder and bulk

Sample maximum size: 40 × 20 mm with a centered sample

Height adjustment to 30 mm

Continuous sample rotation

Spinning Stage for Filter Studies

Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Available with a silver membrane filter (25 mm diameter)

Specific measurement in reflection mode on filter

Continuous sample rotation

Spinning Stage for Pressed Pellets

Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Continuous sample rotation

Reflection mode for pressed samples like cement

Choice according to customer’s specifications

51 mm steel rings

40 mm steel rings or free pressed

Sample Stage With Controlled Atmosphere



Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Continuous sample rotation

Reflection mode for powder

Modes of operation:

Gas circulation to recycle atmosphere

Completely isolated cell with closed connections

Gas control in the cell

Capillary Stage for Transmission Measurement



Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Goniometric head support

Transmission mode on sample in capillary

Continuous sample rotation

Borosilicate or quartz capillaries available with a diameter from 0.1 to 3.5 mm

Automatic 6-Position Sample Changer



Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Six sample positions in reflection mode

Continuous sample rotation

Zero background holder available

Thin Layer Attachment



Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Specific attachment for thin film application

Excellent for GIXRD

Sample size up to 25 × 25 × 10 mm

High accuracy motors in θ and Z adjustments

X-Ray reflectometry (XRR)

Temperature Controlled Stage



Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

BTS500: temperature range from ambient to 500 °C

Reflection mode

BTS150: temperature range from –10 °C to 150 °C

Fast heating and cooling

Sample conditioning in vacuum, air, or inert gas possible

Accurate temperature measurements by a thermo sensor close to the sample

10^-1 mbar to 1 bar relative

Performance

Analytical Performance

With the ARL EQUINOX 100 XRD, analysis of various materials(ranging from minerals to pharmaceuticals) can be conducted quickly and precisely. Since the entire pattern is acquired simultaneously, the instrument has extraordinary resolution and speed for a benchtop device. The ARL EQUINOX 100 XRD can be used for phase identification, quantitative calculations of percent crystallinity, and even the solution of crystal structures.



Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Portfolio

Thermo Scientific™ SolstiX™ XRD Software 21 CFR Part 11 Ready

With the ARL EQUINOX 100 X-Ray benchtop diffractometer, pharmaceutical companies can confidently achieve in a compliant environment while getting the performance results they need. This is thanks to Thermo Scientific SolstiX XRD Software with Security Suite.

The electronic signature and full audit trail requirements of 21 CFR Part 11 are met by Thermo Scientific's software solutions.



Image Credit: Thermo Fisher Scientific - Elemental Analyzers and Phase Analyzers

Establish requirements for the data record, such as the date and time of the scan, the name of the unique signer, and technological security measures (passwords, for example).

Provide electronic signatures to users as a means of assuming responsibility for the electronic data in the system.

Protect quality assurance-related stored electronic data within manufacturer computer systems.

Implement measures to maintain authentic, incorruptible, and confidential records.
