ARL 9900 - Combined XRD and XRF Spectrometer

When it comes to process control, the Thermo Scientific™ ARL^TM 9900 IntelliPower™ series X-Ray spectrometers are the most powerful and adaptable on the market.

Its proprietary technology, which combines X-Ray diffraction (XRD) and fluorescence (XRF) into one unit, is the secret of its adaptability and productivity. The ARL 9900enables the rapid and precise examination of numerous solid samples.

Every minute, a fresh sample can be loaded for analysis in a simultaneous setup. The goniometer can detect up to 86 elements (B to Am, or 5 to 95 in the Mendeleev table) in concentrations ranging from ppm to 100%.

Sturdy integrated software makes it easier to commission new operations quickly and to report and archive analytical data in the most optimal places on time.

The versatile design and extensive selection of options of the ARL 9900 IntelliPower series enable it to be tailored to fulfill any specific process control requirement. The majority of industrial settings can simply fulfill the requirements for simple installation.

The ARL 9900 has a high level of automation and digital control, making it very easy to use. It can be configured to perform continuous process monitoring in an unattended mode with a direct connection to automatic sample preparation machines if it has the necessary automatic sample introduction equipment.

Furthermore, Thermo Fisher Scientific’s global after-sales assistance is included automatically.

The ARL 9900 IntelliPower Series in Summary

Every Analytical Requirement Met

Determining the appropriate generator power for the application. From 1500 to 4200 W

IntelliPower technology can generate up to 2500 W without requiring external water cooling

Combining two X-Ray technologies into a single instrument offers simplicity, versatility, and productivity

Identifies and assesses up to 86 components, ranging from ppm to 100%, depending on the setup

The instrument’s modular construction enables modification to meet specific application needs

The sequential and fixed channel WDXRF capabilities, including quantitative XRD analysis, can suit all analytical requirements

An easy and reliable method for introducing samples

Easy to adjust to changing analytical needs

Connecting to automated sample preparation equipment enables online process control

The instruments are the successors to the successful ARL 9800 series

ARL 9900 IntelliPower Applications

A Wide Range

The ARL 9900 series is ideal for enterprises that require quick process monitoring to ensure quality control. Among them are those who manufacture or process:

Metals: iron, steel, aluminum, copper, and their alloys, titanium, magnesium, tin, zinc, slags, sinters

Refractories and others

Mining: ores, minerals, limestone, beach sands

Cement

By-products

ARL 9900 IntelliPower Versatility

High-Performance in Every Application

Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

There are many different components that the ARL 9900 can identify. Because of its modular construction, the instrument can be precisely customized to fit the needs of any unique application. The instrument has the following settings:

Up to 32 fixed monochromators available for rapid inspection

Three goniometers can be set up for either quantitative and standard-less analysis of a single element or qualitative and semi-quantitative analysis, which involves scanning the X-Ray spectrum to find elements in a sample

The purpose of the small, integrated X-Ray diffraction apparatus is process control phase analysis

Small and large cassettes can accommodate samples of various sizes. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

Full automation through ARL SMS-2500. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

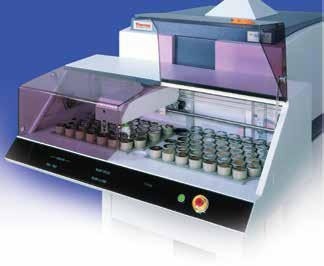

Large X-Y sample changer. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

ARL 9900 IntelliPower Technical Features

X-Ray System

Designed with efficiency and dependability in mind:

An optical system that is very sensitive continuously analyzes data and measures data with extreme precision

An X-Ray tube is placed above the sample to shield it and the instrument from damage caused by faulty samples, such as metal drill bits or fragile pellets.

Well-designed construction ensures maximum dependability and lifespan in use.

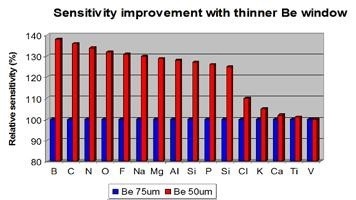

All elements’ detection limits drop and sensitivity rises as the X-Ray tube approaches the sample. Effective full-spectrum stimulation is produced by the Rh anode, but the most abundant elements are not affected significantly. Excellent radiation transmission efficiency during light element activation is made possible by a very small Be window (50 microns). LoVap technology eliminates the need for any W coating on the interior face of the window ensuring exceptional long-term analytical stability

The vacuum chamber used for the analyses has a single lid. There are thus fewer vacuum seals and a lower chance of leaks.

Well-managed temperature and vacuum pressure offer superior short- and long-term stability.

Power Supply: A Choice to Suit Any Applications

Instruments from the ARL 9900 Series can be chosen with an integrated high-frequency, medium- or high-power solid-state generator to best fit each application.

Installing an additional water chiller is not required as the 1500 W or 2500 W power supply each includes a separate cooling circuit.

A 4200 W power supply for applications requiring low detection limits and great performance. At its highest, the conventional generator can generate up to 60 kV/70 mA or 35 kV/120 mA

Sample Introduction: Several Degrees of Automation

The sample introduction mechanism is fast, simple to operate, and incredibly reliable, thanks to its 12-position sample changer

The large X-Y magazine can automatically handle multiple samples. There are 98 coded positions for samples in cassettes or on designated supports in the X-Y magazine. Coding every site enables independent functioning and reduces the time needed to identify which samples are relevant to a particular study. If needed, this larger magazine can easily take the place of the traditional 12-position arrangement

Pressed powders in steel rings can be connected to transport belts using an X-Y sample changer. This fundamental automation is known as ARL SMS-XY

For a variety of sample types, the optional ARL SMS-2300, SMS-2500, and SMS-3500 robotic systems provide completely automated sample introduction and preparation

The device can automatically perform unattended continuous process monitoring and sound an alert if any anomalies with the SMS settings are found. The entire sample preparation and analysis process is connected via the versatile and very strong ARL SMS-2300 and SMS2500 devices. The most recent automation innovation is the ARL SMS-3500 series, which uses a larger, quicker robot to service an XRF instrument in addition to an OES

Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

Full Microprocessor Control

Putting the Emphasis on Reliability and Ease of Use

With full digital control, the ARL 9900 is a simple device to operate. It also guarantees consistent outcomes from various procedures.

The microprocessor architecture consists of clusters of microprocessors, microcontrollers, and digital signal processors coupled via full duplex links. They oversee the instrument's functioning, manage the integrated diffraction system, monochromators, and goniometers, and routinely verify hundreds of status points.

The OXSAS analysis program sends instructions to the master microprocessor, transferring them to the appropriate cluster. The results of the analysis are shown on the screen.

Fixed Monochromators

High-Speed Simultaneous Analysis

Due to its exclusive focus on identifying and assessing a single element, fixed channels provide excellent sensitivity, quick processing, and quick analysis. ARL 9900 series monochromators can be examined simultaneously by up to 32 or 24 of them if a goniometer is incorporated.

The compact slit-crystal form optimizes the sensitivity and spectral background levels, making it possible to identify components at extremely low concentrations. The most recent detectors guarantee a far more accurate analysis and a wider linearity of response. Using detector gas in conjunction with any element from Na is not required.

Each monochromator is equipped with a mechanism that guarantees exceptional stability throughout theanalysis, controlling temperature to within ± 0.1 C. Multilayer synthetic crystals are utilized to investigate the light elements. There are options in the software for deadtime correction, high voltage, and pulse height discrimination.

Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

Goniometers

Very Precise Sequential Analysis

The goniometers can be set up to do qualitative analysis, such as scanning the X-Ray spectrum for components in a given sample, as well as quantitative analysis on individual elements. Two extremely quick and precise gearless goniometers for ARL 9900 series instruments provide standard-less, quantitative, and qualitative analysis.

The Thermo Scientific SmartGonio can analyze elements ranging from F to Am. This little goniometer combines two detectors and three crystals to provide a flexible and inexpensive detecting device. Three SmartGonios can fit within the gadget at once.

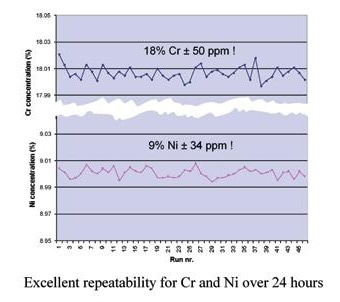

Excellent repeatability over 24 hours, here for Cr and Ni in steel. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

The compact SmartGonio covers F to Am. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

The F45 universal goniometer is an appropriate replacement in applications requiring extra crystals and collimators. Up to two universal goniometers can be installed.

Microprocessors utilizing moiré fringe technology enable both goniometers to position the crystal and detector quickly and precisely, producing extremely accurate sequential X-Ray spectroscopy. This design has severalsignificant benefits.

Fast positioning: Slewing at a maximum speed of 4800° 2 theta per minute is five times more quickly than a standard goniometer and up to twenty times faster than a scanner

Theta/2theta angular link between crystal and detector automatically aligns. Unlike traditional systems, this alignment is done electronically by the microprocessor, so no mechanical modifications are required

Rapid qualitative analysis- Continuous digital scanning allows for ultra-fast spectra collection speeds of up to 1200°/min. Peak identification occurs automatically

These “no wear” systems maintain consistent angular repeatability (< ± 0.0002°) and precision (0.001°) due to the absence of friction-causing gears

High accuracy of peak positions (e.g. 0.01° with LiF crystal)- The analytical peaks are positioned precisely where they should be in principle, offering up to 10 times higher performance than traditional systems

Independent crystal and detector rotation enables the installation of two detectors side by side. Secondary collimators in front of detectors improve count rate and resolution

The universal goniometer may accommodate up to nine different crystals for specific uses. This enables the analyst to select the optimal crystal for every X-Ray spectra segment. A maximum of four main collimators are available to enhance resolution or intensity (fine, medium, coarse, and extra coarse)

Both goniometers are fully capable of being used to research non-routine objects. Thermo Scientific™ QuantAS and UniQuant™ software packages allow standard-less analysis and backup for fixed channels.

Analytical Assistant helps define analytical programs, calibrations and instrument use. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

The 5th generation Moiré fringe universal goniometer. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

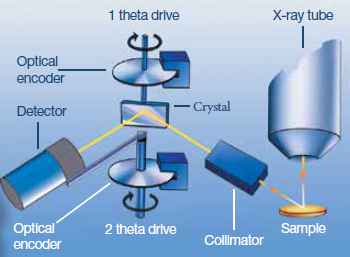

Goniometer principle of operation. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

To provide angular positioning that guarantees the θ/2θ connection between the crystal and detector, Moiré fringe optical encoders are utilized:

No wear

No friction

Exceptional precision in angular placement

Crystal temperature regulation to achieve optimal analytical stability

Two Techniques Integrated in a Single Instrument

XRF and XRD Capability in One Instrument

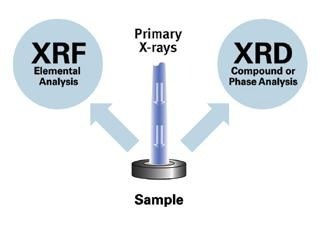

Integration of XRF and XRD in the same instrument: one sample, one instrument, one analysis for two techniques. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

The elemental makeup of a sample can be determined via X-Ray fluorescence (XRF) analysis, however, the method of mixing the elements cannot be revealed. The sole way to gather mineralogical information is by X-Ray diffraction.

For instance, a typical crystalline sample's entire calcium or iron content may be ascertained using XRF. The phases or compounds in crystalline materials, such as rocks, minerals, oxides, and products, can be examined using XRD.

Thus, XRD advances the analysis in the same sample by providing details on the contents of CaO, CaCO₃, Ca(OH)₂, and other Ca phases, as well as the levels of Fe phases, including FeO, Fe₂ O₃, Fe₃ O₄, Fe₃ C, and other Fe phases. As a result, integrating the findings from both XRF and XRD methods enables a more thorough and accurate evaluation of each particular crystalline sample.

In the past, doing these kinds of studies needed two distinct kinds of X-Ray equipment, which meant regular upkeep and operation at a significant expense to the user. Nevertheless, the combination of both methods in a single ARL 9900 instrument is made possible by the integration of state-of-the-art X-Ray diffraction systems, offering the user severaladvantages such as:

Only one sample introduction

Single-user interface for both techniques

Combined elemental and phase data into a single analysis bulletin

Minimized floor space

No water cooler at mid-power levels

Compact Integrated XRD Systems

Productive, Precise

The tiny integrated XRD equipment's Moiré fringe positioning system makes accurate qualitative and quantitative scans possible. Sample alignment issues are avoided by precise sample positioning and parallel beam X-Ray geometry.

Analytical sensitivity and repeatability are improved while working in a vacuum at a constant temperature, especially for fragile phases like free lime. Frequently reported use examples include:

Iron phases in DRI (Direct Reduced Iron) processes

Phases related to electrolysis of aluminum

Other mineral and mining applications

Amorphous content in GBFS and slag cement

Free lime in clinker and in slags

Clinker phases (C₃S, C₂S, C₃A andC₄AF) for which the ClinkerQuant calibration is available

Fe²⁺ determination in sinters

One particular version of the small Integrated XRD system is referred to as the Free Lime-Quartz-Limestone Channel. Free lime determination in clinker and slags, limestone additions in cement, hot meal calcination monitoring, and quartz content in raw meals are still possible, but at a reduced cost.

Automated Options

Full automation through ARL SMS-2300. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

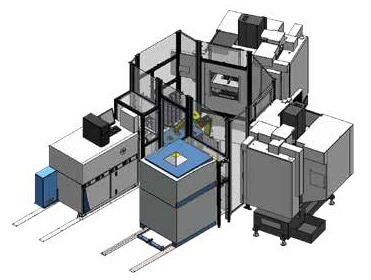

Full automation through ARL SMS-3500 linking ARL iSpark and ARL 9900. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

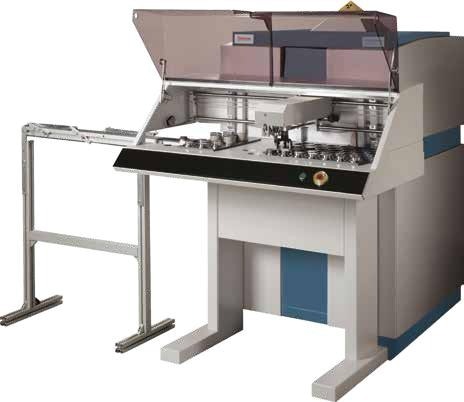

Full automation through ARL SMS-2500. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

Full automation through ARL SMS-XY. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

Software

Reliable Analysis Made Easy

The ARL 9900 operates and analyzes data rapidly,thanks to modern OXSAS software, producing incredibly accurate analytical results. OXSAS is a state-of-the-art software platform that can adjust to shifting needs and gives customers the most recent solutions for as long as the instrument is in use. Operating system: Windows^® 10.

Its key features and benefits are as follows:

Featuring cutting-edge software and a contemporary GUI

Complete and extremely rich capabilities

The software is mature and has many useful features

Easy to use, regardless of needs. All tasks, from simple to complicated, can be defined and completed promptly

OXSAS enables quick and high-quality analysis using template-driven operations

Simple definition and operation of sample batches. Priority samples were supported. Makes unattended analysis convenient

The Integrated Analytical Assistant helps create or extend techniques with optimal analytical parameters for faster and more accurate results

Calibration features include multiple analyte curve displays, quick base curve computation, and templates for editing and measuring calibration standards

To determine the calibration curve, use multi-variable regression with several correction models and calculate integrated theoretical alphas

Multi-variable regression with a variety of correction models and integrated theoretical alphas analysis are used to determine the calibration curve

Scan results are shown flexible using a graphical user interface

Multifunctional analysis display with a wide range of optional data; for example, the analysis calculation phases provide method validation

Online processing functions are highly customizableand can be used manually or automatically

Results are post-processed and sent to Excel (*.xls file format)

Real on-line integrated Statistical Process Control (SPC)

SCT Manager gives an overview of the analytical capabilities of the instrument and each method at any given moment by providing the status and history of Setting-up Samples, Control samples, and Type standards

Easy to use: create a batch with only one click, containing all samples for analysis

Use effective monitoring and maintenance technologies to increase system uptime

Exceptionally thorough contextual assistance, including “How-To” manuals

Integrated relational database powered by Microsoft^® SQL Server Express that houses all setup and analysis results

Combines the results of the XRF and XRD studies into a single one

Additional OXSAS software options are:

SPC-full: On-line Statistical Process Control, full graphical package extension

ARLcom: Software program for transmitting results via network and serial connection

Network: Results can be transmitted across a local network to computer programs or files using TCP/IP protocols

Series: Solutions for transmitting results to computers, printers, or terminals over RS-232 serial line

OEM Mode: Connect to an external process computer for automation applications

Layerquant determines the thickness of multilayer coatings

Quantitative Analysis

Accuracy Made Easy

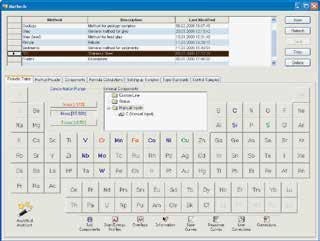

Analytical programs and calibrations are defined using the Analytical Assistant, an online tool. Calibration curves are constructed with the multivariable regression (MVR) tool.

Correction models are used to reduce the influence of interfering components in multicomponent matrices while increasing analytical accuracy. These types of models are:

Line overlap correction

Additive correction on intensities

Additive correction on concentrations

Multiplicative correction on intensities

Multiplicative correction on concentrations

Multiplicative and additive corrections on concentrations

Comprehensive LAchance (COLA), which can be used with the NBSGSC fundamental parameters program to simulate analytical calibrations for homogeneous materials. It currently has three-word alphas available. Inter-element correction factors, or theoretical alphas, are computed and employed as fixed coefficients in the MVR. This increases analytical precision and reduces the number of standards required to create calibrations

Statistical Process Control - Typical screen. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

MVR calibration curve: real concentrations vs. intensities. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

Total Elemental Analysis

There are two alternatives for standard-less analytical programs:

The QuantAS software scans up to 70 components from F to U with the F45 universal goniometer

Semi-quantitative analysis can be completed within 3 minutes

This program automates smoothing, background removal, peak identification, overlap and matrix corrections, semi-quantitative concentration computation, and normalization, making it simple to analyze unfamiliar compounds quickly

UniQuant software can provide standard-free findings in 4-14 minutes, depending on the number of objects analyzed and time spent counting. It could be mounted on both the SmartGonio and the F45 universal goniometer. For applications requiring high precision and low concentration level detection, it is the preferable solution because of its longer counting time per element (2 to 20 seconds or more)

Analyze up to 79 components without using particular standards. Perfect for collecting samples

In small quantities

In irregular shapes

As monolayer coatings

Identify remaining unanalyzed components in the sample, including organic and ultra-light components.

The QuantAS and UniQuant packages have been properly calibrated and deployed in the factory. Following commissioning, the instruments are instantly available for use. Stable samples for setup and long-term maintenance are available.

Turnkey Calibrations

Ex-works calibrations are offered for a range of materials, including:

Clinker phases (C₃S, C₂S, C₃A and C₄AF)

Iron ores according to ISO 9516

Titanium alloys

Tin and zinc low alloys

Ferro-alloys and others for which analytical specifications are available on request

Cement and clinkers

Iron, steels and slags

Copper, bronzes and brasses

Aluminum and alloys

Nickel, stellites and super-alloys

Various oxides through the General Oxide calibration

Traces in soils and sediments

Customer Support

The Backing of a Major International Corporation

The company helps customers all across the world.

Application product teams might assist in developing specifications and suggest the ideal ARL 9900 for a particular application

Committed training enables operators to use their ARL 9900 efficiently

The ARL 9900 is durable and offers global aftersales support for common queries

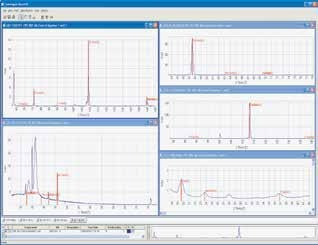

Example of QuantAS scans from which concentrations for the various elements in the sample are derived. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

UniQuant uses "peak hopping" to acquire intensities for up to 122 line and background positions. Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

Image Credit: Thermo Fisher Scientific - Elemental and Phase Analysis

General Specifications for ARL 9900 Intellipower

Elemental Range

On a universal goniometer, boron (Nr. 5) to americium (Nr. 95), as long as all essential crystals are installed. SmartGonio: Oxygen (Nr. 8) to Amerium (Nr. 95)

Spectrometer Environment

Stabilized vacuum employing molecular pump.

Spectrometer Design

Analysis instruments are contained in a temperature-controlled grey cast iron vacuum chamber. A system of differential heating and cooling achieves temperature control. The crystals were maintained at a temperature of ±0.1°C.

Spectrometer Arrangement

The X-Ray tube is positioned vertically, 90° above the sample surface. Analytical equipment is positioned on a 360°ring, looking down at the sample surface.

X-Ray Tube

The latest generation of high-performance Rh anode end window tubes. The tiny Be window (0.05 mm) improves sensitivity to light components. LoVap technology provides outstanding long-term stability. Optional W and Mo anodes.

Monochromators

Fixed mechanical systems employ curved crystal optics (flat for light elements) and flow-proportional, sealed, or scintillation detectors. The monochromators have a temperature control range of ±0.1 °C. Absorbing filters can be used in extremely large quantities. Dual pulse height integration detects and corrects for second-order peaks.

Universal Goniometer

An optical encoder-equipped, gearless, microprocessor-powered goniometer. Up to 9 flat crystals can be fully configured automatically.

Up to 9 flat crystals

Up to 4 primary collimators: fine, medium, coarse, extra-coarse

2 detectors: scintillation and flow proportional (Ar/CH4 10 %: ultra-low flow 3 ml/min)

Independent rotation of crystals and detectors

Maximum slewing speed: 4800° 2θ/min

Accuracy of peak positions vs. ASTM table on LiF crystals: 0.015°

Angular reproducibility < ± 0.0002°

Angular resolution 0.001°

Total angle range: 0°-153° 2θ (Flow proportional counter: 17°-153°. Scintillation counter: 0°-115°)

Continuous digital scans: from 0.25°/min to 1200°/min as function of measuring time and increment

Step scan range: Minimum step: 0.001°

Maximum practical: 1.00°

Time of measurement for each step:0.1 s. - 655 s

SmartGonio

A microprocessor controls a gearless small goniometer and uses optical encoders. Completely autonomous programming of:

3 flat crystals

2 detectors: scintillation and flow proportional (Ar/CH4 10 %: ultra-low flow 3 ml/min)

Fixed collimator selected according to customer’s application

Independent rotation of crystals and detectors

Maximum slewing speed: 5500° 2θ/min

Accuracy of peak positions vs. ASTM table on LiF crystals: 0.015°

Angular reproducibility: < ± 0.0002°

Angular resolution: 0.001°

Total angle range: 0°-150° 2θ (Flow proportional counter: 17°-150°. Scintillation counter: 0°-90°)

Continuous digital scans: from 0.25°/min to 1200°/min as function of measuring time and increment

Step scan range: Minimum step: 0.001°

Maximum practical: 1.00°

Time of measurement for each step: 0.1 s. - 655 s

Free Lime-Quartz-Limestone Channel

Small X-ray diffraction equipment with microprocessor control for quartz in raw meals, hot meal calcination tracking, limestone addition to cement, and free lime detection in clinker and slags.

Compact XRD System

Compact X-ray diffraction device with microprocessor control to track various functions and determine phase composition.

Counting Electronics

Multichannel analyzer for better peak discrimination

Digital Automatic Gain Control (AGC) counteracts the effects of pulse shrinkage. Automated dead time correction ensures linearity of response up to two Mcps on flow proportional counters, 1.5 Mcps on scintillation counters, and 1 Mcps on sealed detectors

Sample Changer and Cassettes

Basic magazine: 12 cassettes for samples of max. height 40 mm and diameter 60 mm.

Large capacity X-Y changer: 98 cassettes for samples of max. height 30 mm and diameter 52 mm or 98 samples on supports for direct introduction. Exposed opening 29 mm diameter (basic). Rotation of cassettes in analysis position: 60 rpm. Large changer is easily retrofittable.

Primary Beam Filter

Up to four settings are available for programming the main beam filter for X-Ray excitation.

Cu: For analysis of Ru, Rh, Pd, Ag and Cd (elements that are interfered by Rh lines from the X-Ray tube) in light and variable matrices

Al: To improve peak-to-background ratio on Pb or As in light matrices

Other filters on request

Laboratory Information

Internet connection

Electrical safety: IEC 61010 – 1

Radiation safety: fully protected system-interlock system complying with ISO 13489-1

Electromagnetic compatibility: EN 61326-1 (group 1, class a, industrial)

Particular Specifications for ARL 9900 IntelliPower 1500

Spectrometer Capacity

12 fixed channels or

1 goniometer + 8 fixed channels or

1 goniometer + 1 compact XRD system + 8 fixed channels

X-Ray generator for 1500 W

Solid state 1.5 kW high-frequency generator of maximum voltage 60 kV and maximum current 70 mA

All kV/mA combinations must be chosen to be less than 1500 W.

Maximum line voltage variation -15 % to +10 %. Stability ± 0.0001 % per 1 % variation

Power Requirements

3.8 kVA single phase for 1500 W

Cooling System

Closed circuit for deionized water flowing via a heat exchanger that combines liquid and air

Flow adjusted based on generator setting, between 0.5 and 5 lt/min (to maintain X-Ray tube temperature consistent)

Dimensions and weight for 1500 W

H 166 cm, D 136.5 cm, W 93 cm with basic sample changer + H 47 cm, L 83.5 cm, W 41 cm. Weight: 785 kg

Particular Specifications for ARL 9900 IntelliPower 2500

Spectrometer Capacity

12 fixed channels or

1 goniometer + 8 fixed channels or

1 goniometer + 1 compact XRD system + 8 fixed channels

X-Ray Generator for 2500W

Solid state 2.5 kW high-frequency generator of maximum voltage 60 kV and maximum current 100 mA

All kV/mA combinations must be chosen to be less than 2500 W

Maximum line voltage variation -15 % to +10 %. Stability ± 0.0001 % per 1 % variation

Power Requirements

5 kVA single phase for 2500 W

Cooling System

Closed circuit for deionized water flowing through liquid/air heat exchanger

Flow regulated between 0.5 and 5 lt/min according to generator setting (to keep X-Ray tube temperature constant)

Dimensions and weight for 2500 W

H 166 cm, D 136.5 cm, W 93 cm with basic sample changer + H 47 cm, L 83.5 cm, W 41 cm. Weight: 785 kg

Particular Specifications for ARL 9900 IntelliPower 4200

Spectrometer Capacity

32 fixed channels or

1 goniometer + 24 fixed channels or

1 goniometer + 1 compact XRD system + 14 fixed channels

Up to three goniometers configurations also available

X-Ray generator for 4200 W

Solid state 4.2 kW high frequency generator (max. settings: 60 kV-70 mA or

35 kV-120 mA)

All combinations must be chosen to be less than 4200 W

Maximum line voltage variation -15 % to +10 %

Stability ± 0.0001 % per 1 % variation

Power Requirements

7 kVA single phase for 4200 W

Cooling System

Built-in closed circuit for deionized water flowing through liquid/liquid heat exchanger

External water needed is <18°C, pressure≥ 2 bar, flow is regulated between 0.5 and 4.5 lt/min according to generator setting (water consumption minimization)

Dimensions and weight for 4200 W

H 166 cm, D 136.5 cm, W 93 cm with basic sample changer. Weight: 750 kg
