alpha300 Semiconductor Edition – Raman imaging microscope for large wafer inspection

The alpha300 Semiconductor Edition is a sophisticated confocal Raman microscope designed for the chemical analysis of semiconducting materials. This advanced tool helps researchers quickly analyze crystal quality, strain, and doping levels in semiconductor samples and wafers.

The microscope features an extended-range scanning stage that allows for the examination of wafers up to 300 mm (12 inches) in diameter, facilitating the capture of large-area Raman images.

It features active vibration damping and active focus stabilization to ensure precision in measurements conducted over sizable regions or extended acquisition periods, effectively compensating for topographic variations.

All microscope components are fully automated, enabling remote-control and the implementation of standard measurement procedures.

Image Credit: Oxford Instruments WITec

Image Credit: Oxford Instruments WITec

Key Features

Active vibration damping

Active focus stabilization for large-area measurements (TrueSurface)

Extensiveautomationfor remote control and recurring measurement workflows

Industry-leading confocal Raman microscope for high speed, sensitivity, and resolution

Large-area scanning (300 x 350 mm) for wafer inspection

Scientific-grade, wavelength-optimizedspectrometerfor high signal sensitivity and spectral resolution

Softwarefor advanced data post-processing

High-resolution Raman image of CVD-grown graphene, color-coded according to the D-band intensity, which depends on the defect density in the carbon lattice. Image Credit: Oxford Instruments WITec

Large-Area Wafer Inspection

For the semiconductor industry, ensuring wafer quality is of utmost importance. To assess the uniformity of the material and identify regions of strain or inconsistent doping, it is essential to thoroughly examine the entire surface area of a wafer.

In the example below, the complete surface of a 150 mm (6 inch) silicon carbide (SiC) wafer was imaged with Raman microscopy using a 532 nm laser for excitation. The analysis revealed non-uniform doping concentration across the entire area. The UHTS 600 spectrometer, known for its high sensitivity, detected peak shifts below 0.01 cm^-1, exposing stress fields within the wafer.

To maintain a sharp Raman image of the entire wafer, it was crucial to actively keepthe surface in focus. TrueSurface recorded the wafer’s topography andthe Raman datasimultaneously and compensated for height variations.

Furthermore, a depth scan through an epitaxially overgrown SiC wafer was recorded to visualize the distribution of the different layers. The sample was provided by the Fraunhofer Institute for Integrated Systems and Device Technology IISB in Erlangen, Germany.

Confocal Raman image of a 150 mm SiC wafer. TrueComponent Analysis identified two spectra, which mainly differed in the doping-sensitive A₁ peak (ca. 990 cm^-1). The image reveals an oval region (blue) with a different doping concentration than the bulk wafer area (red). Image Credit: Oxford Instruments WITec

Raman spectra of the two components identified in the 150 mm SiC wafer by TrueComponent Analysis. Image Credit: Oxford Instruments WITec

Raman depth scan of an epitaxially overgrown SiC wafer, showing a thin interface layer (blue) between the wafer substrate (green) and epitaxial layer (red). Image Credit: Oxford Instruments WITec

Confocal Raman image of a 150 mm SiC wafer, color coded for the position of the stress-sensitive E₂ peak (776 cm^-1). The image reveals a small, presumably stress-induced peak shift from the wafer’s center toward its edge. Image Credit: Oxford Instruments WITec

Topography of a 150 mm SiC wafer with height variations of up to 40 µm. Image Credit: Oxford Instruments WITec

Specifications

300 x 350 mm scanning stage

Active vibration damping

Data acquisition and post-processing with the latestWITec Software Suite

DCOM interfacefor design and control of individual measurement procedures with LabVIEW, Python, C# and other programming tools

Fully automated microscope control withAutoBeam Technology

Highly sensitive, on-axis, lens-based, excitation wavelength-optimizedUHTS spectrometerfeaturing thermoelectrically-cooled, scientific-grade spectroscopic CCD camera

Research-gradealpha300 Raman microscope

TrueSurfacefor active focus stabilization and topographic Raman imaging

Wafer chuck, optionally with vacuum pump

White-light illumination for sample overview

Workflow manager for streamlining recurring experimental tasks

Various laser wavelengths are available

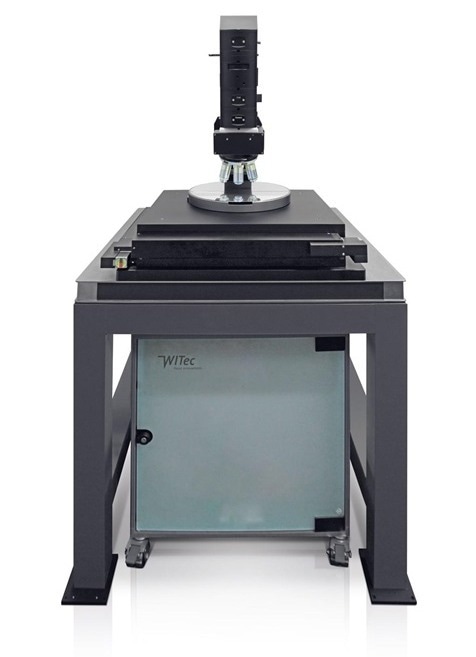

alpha300 Semiconductor Edition – Confocal Raman imaging microscope for wafer inspection. Image Credit: Oxford Instruments WITec

Benefits of Raman Imaging in Semiconductor Research

Confocal Raman imaging is a highly effective technique for both research and quality control within the semiconductor industry.

This techniquecan nondestructively acquire detailed, spatially-resolved chemical information about conventional materials such as silicon (Si), silicon carbide (SiC), gallium nitride (GaN), and gallium arsenide (GaAs).

It is also capable of investigatingnovel 2D materials such as graphene, perovskite, molybdenum disulfide (MoS₂), tungsten diselenide (WSe₂) and other transition metal dichalcogenides (TMDs) and heterostructures.

Raman images play a crucial role in visualizing the spatial distributions of different materials, as well as material properties such as crystallinity, strain, stress, or doping. Depth scans enable the investigation of material distribution on substrates and characterization of interface layers, while 3D Raman images provide a means to depict inclusions within a sample.

2D Materials Analysis

Characterization of a WSe₂ flake. A: bright-field image. B: high-resolution Raman image (102,400 spectra acquired in about 17 minutes), distinguishing single-layer (red), bi-layer (green), and multi-layer (blue) areas. C: photoluminescence image with visible grain boundary (white arrow). Image Credit: Oxford Instruments WITec

Representative Raman spectrum of CVD-grown mono-layer MoS₂ on a Si/SiO₂ substrate. Image Credit: Oxford Instruments WITec

Raman image of mono-layer MoS₂ color-coded for shifts of the Raman E_2g band, visualizing areas of strain and doping. Image Credit: Oxford Instruments WITec
