2212 Series Active-Air BenchMate - Self-Stabilizing Anti-Vibration Platforms
BenchMate Vibration-Free Platforms enable more efficient operation of precision tabletop equipment.
The self-leveling 2212 Series requires compressed air, which is not supplied. It is suitable for daily usage.
Image Credit: Kinetic Systems, Inc.
Image Credit: Kinetic Systems, Inc.
Image Credit: Kinetic Systems, Inc.
Typical Applications
Audio equipment, balances, profilometers, atomic force microscopes, microhardness testers, and other precise measuring and testing devices.
Features and Benefits
Flatness: ±0.004” over 24×24 ” on -22 and -32 top surfaces
SPILLPRUF spill management
Compatible with Class 100 cleanrooms – Class 10 is also available
Low-profile Active Air design
Supreme price/performance
VibraDampened construction
Low inherent frequency
Performance Data
Performance Dara. Source: Kinetic Systems, Inc.
| Min. Load @ 20 psi | |
|---|---|
| Vertical Natural Frequency | 2.3 Hz |
| Isolation Efficiency @ 5 Hz | 52 % |
| Isolation Efficiency @ 10 Hz | 83 % |
| Horizontal Natural Frequency | 2.9 Hz |
| Isolation Efficiency @ 5 Hz | 40 % |
| Isolation Efficiency @ 10 Hz | 92 % |
| Max. Load @ 80 psi | |
| Vertical Natural Frequency | 2.1 Hz |
| Isolation Efficiency @ 5 Hz | 70 % |
| Isolation Efficiency @ 10 Hz | 91 % |
| Horizontal Natural Frequency | 1.8 Hz |
| Isolation Efficiency @ 5 Hz | 81 % |
| Isolation Efficiency @ 10 Hz | 95 % |
| Net Load Capacity @ 80 psi | |
| 2212-02/03 | 450 lbs. (204 kg) |
| Finish | |
| Standard | Linear WhitePolyurethane |
| Class 10 | White EpoxyPowder Coat |
| Approximate Shipping Weight | |
| 2212-01-xx | 157 lbs. (72 kg) |
| 2212-02-xx | 210 lbs. (96 kg) |
| 2212-03-xx | 245 lbs. (112 kg) |
| 2212-04-xx | 145 lbs. (66 kg) |
Note: Typical performance efficiencies are for microdisturbances.
Image Credit: Kinetic Systems, Inc.
Image Credit: Kinetic Systems, Inc.

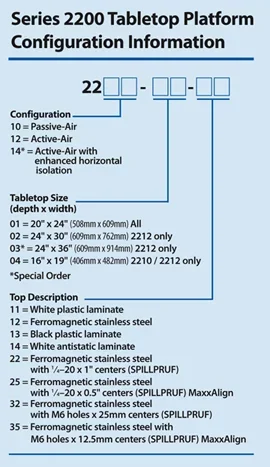

Configuration
Image Credit: Kinetic Systems, Inc.
